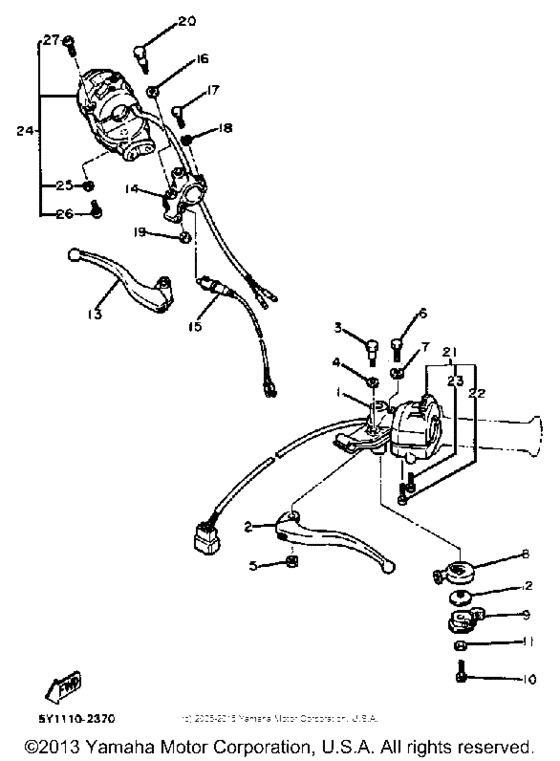

Handle switch & lever Diagram Yamaha XT550
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-82911-01-00 Holder, Lever 1 |
5Y1-82911-01-00 |
from US $38.13 |
||
|
2
|
2
3FY-83912-01-00
Lever 1
|
3FY-83912-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
3
|
3
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
3
|
3
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
4
|
4
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
5
|
5
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
97006-06022-00 Bolt (3G1) |
97006-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
7
|
7
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
5Y1-83942-00-00 Cover, Starter |
5Y1-83942-00-00 |
from US $21.39 |
||
|
9
|
9
5Y1-83941-00-00 Lever, Starter |
5Y1-83941-00-00 |
from US $12.33 |
||
|
10
|
10
90153-06042-00 Screw, Pan Head |
90153-06042-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
12
|
12
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
13
|
13
5Y1-83922-10-00 Lever R (5Y1-83922-00)5Y1-83922-00 |
5Y1-83922-10-00 |
from US $24.23 |
||
| replacement | |||||
|
13
|
13
5Y1-83922-11-00 LEVER 25Y1-83922-00 |
5Y1-83922-11-00 |
from US $19.09 |
||
|
14
|
14
361-82920-93-00
Holder, Lever 2 (36182-92131-
|
361-82920-93-00 |
— | ||
|
15
|
15
3E1-83980-02-00 Front Stop Switch AsAS |
3E1-83980-02-00 |
from US $24.48 |
||
| replacement | |||||
|
15
|
15
3E1-83980-09-00 Front Stop Switch AssyAS |
3E1-83980-09-00 |
from US $25.12 |
||
|
16
|
16
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
17
|
17
97006-06022-00 Bolt (3G1) |
97006-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
18
|
18
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
19
|
19
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
20
|
20
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
20
|
20
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
21
|
21
5Y1-83973-00-00
Switch, Handle 3
|
5Y1-83973-00-00 |
— | ||
|
22
|
22
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
23
|
23
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
24
|
24
5Y1-83976-00-00
Switch, Handle 1
|
5Y1-83976-00-00 |
— | ||
|
25
|
25
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
26
|
26
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
27
|
27
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
27
|
27
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
