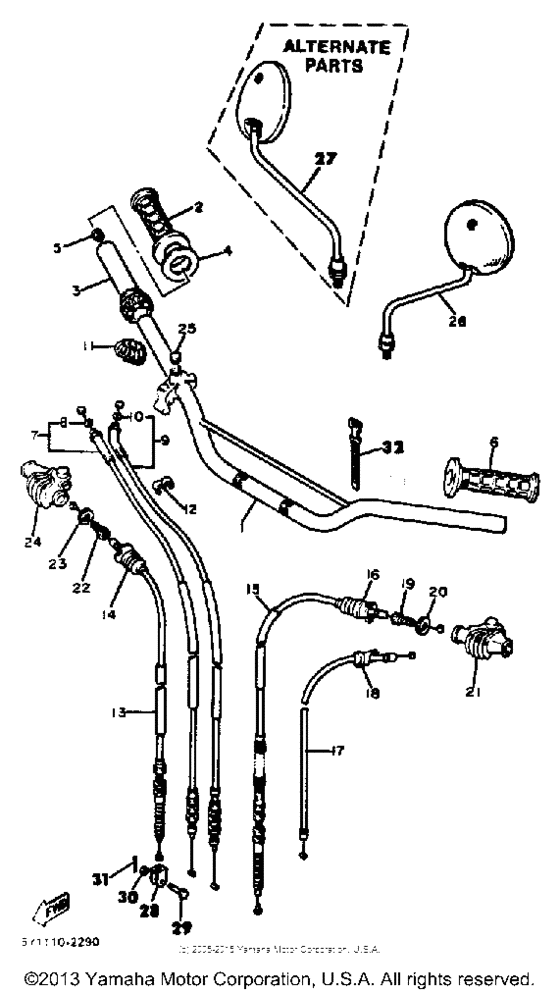

Handlebar cable Diagram Yamaha XT550
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 550
- Model
- XT550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5Y1-26111-01-00
Handlebar
|
5Y1-26111-01-00 |
— | ||
|
2
|
2
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
3
|
3
5Y1-26243-00-00
Tube, Thrtl Guide
|
5Y1-26243-00-00 |
— | ||
|
4
|
4
4V4-26249-00-00
Ring, Leaf
|
4V4-26249-00-00 |
— | ||
|
5
|
5
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
6
|
6
4V4-26241-01-00
Grip (Left)
|
4V4-26241-01-00 |
— | ||
| replacement | |||||
|
6
|
6
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
7
|
7
5Y1-26311-01-00
Cable, Throttle 1
|
5Y1-26311-01-00 |
— | ||
|
8
|
8
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
9
|
9
5Y1-26312-01-00
Cable, Throttle 2
|
5Y1-26312-01-00 |
— | ||
|
10
|
10
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
11
|
11
5Y1-2628E-00-00
Gear, Bevel
|
5Y1-2628E-00-00 |
— | ||
|
12
|
12
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
13
|
13
5Y1-26341-01-00 Cable, Brake |
5Y1-26341-01-00 |
US $58.90 |
||
|
14
|
14
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
55U-26335-01-00 Cable, clutch |
55U-26335-01-00 |
from US $50.29 |
||
|
16
|
16
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
17
|
17
5Y1-26331-00-00
Cable, Starter 1
|
5Y1-26331-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
5Y1-26339-00-00 Boot |
5Y1-26339-00-00 |
from US $13.32 |
||
|
19
|
19
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
19
|
19
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
20
|
20
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
20
|
20
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
21
|
21
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
22
|
22
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
22
|
22
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
23
|
23
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
23
|
23
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
24
|
24
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
25
|
25
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
26
|
26
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
26
|
26
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
27
|
27
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
|
28
|
28
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
29
|
29
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
30
|
30
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
31
|
31
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
32
|
32
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
