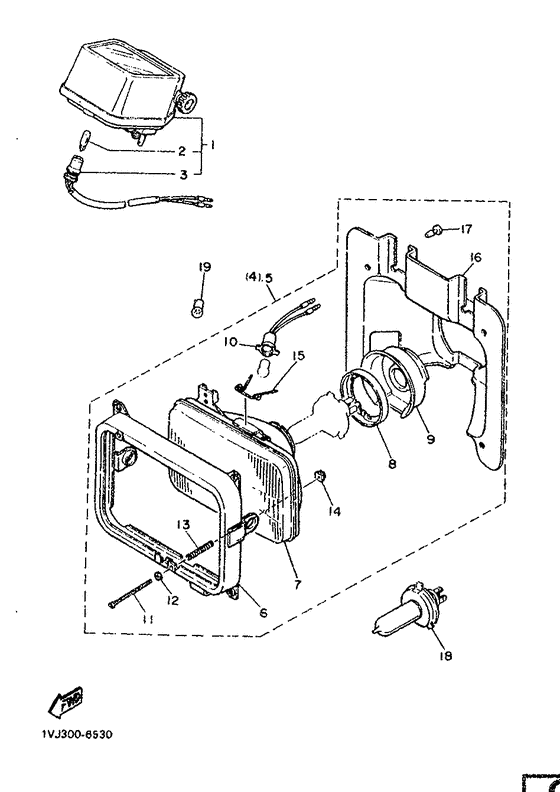

Electrical Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1VK
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
43F-83570-G0-00 Speedometer Assembly |
43F-83570-G0-00 |
US $518.78 |
||
| replacement | |||||
|
01
|
01
43F-83570-G1-00
Speedometer Assembly
|
43F-83570-G1-00 |
— | ||
|
02
|
02
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
02
|
02
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
03
|
03
5Y1-83536-00-00 Socket Cord Assy |
5Y1-83536-00-00 |
from US $27.68 |
||
| replacement | |||||
|
03
|
03
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
04
|
04
43F-84310-F0-00
Headlight Unit Assy
|
43F-84310-F0-00 |
— | ||
|
05
|
05
43F-84303-H0-00
Headlight Unit Assy
|
43F-84303-H0-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
47J-84115-00-00 Rim, Headlight |
47J-84115-00-00 |
from US $91.98 |
||
|
07
|
07
5G8-84321-H0-00
Lens Assy
|
5G8-84321-H0-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
09
|
09
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
10
|
10
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
10
|
10
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
11
|
11
43F-84131-00-00 Screw, Rim Adjuster |
43F-84131-00-00 |
from US $5.97 |
||
|
12
|
12
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
13
|
13
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
14
|
14
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
15
|
15
5G2-84324-G0-00
Spring, Reflector
|
5G2-84324-G0-00 |
— | ||
|
16
|
16
10V-84196-00-00 Cover, Socket |
10V-84196-00-00 |
from US $26.22 |
||
|
17
|
17
10V-84196-00-00 Cover, Socket(for switzerland) |
10V-84196-00-00 |
from US $26.22 |
||
