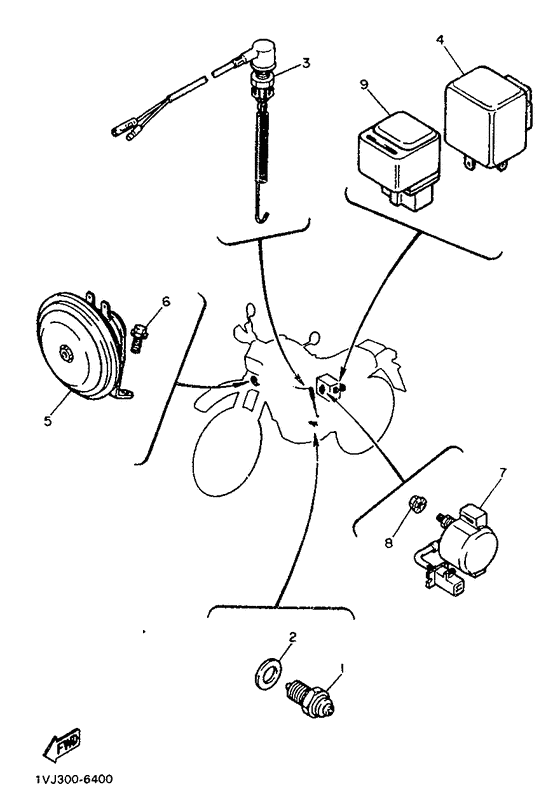

Electrical 2 Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1VK
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
01
|
01
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
01
|
01
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
02
|
02
90430-10027-00 Gasket 256-13168-00 |
90430-10027-00 |
from US $1.39 |
||
| replacement | |||||
|
02
|
02
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
03
|
03
34L-82530-00-00 Stop Switch Assy |
34L-82530-00-00 |
from US $26.74 |
||
| replacement | |||||
|
03
|
03
34L-82530-02-00 Stop Switch Assembly |
34L-82530-02-00 |
US $32.54 |
||
|
04
|
04
34L-82530-20-00
Stop Switch Assy
|
34L-82530-20-00 |
— | ||
|
05
|
05
1VJ-83371-00-00
Horn
|
1VJ-83371-00-00 |
— | ||
|
06
|
06
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
06
|
06
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
07
|
07
22U-81940-00-00 Starter Relay AssyHondaa lock |
22U-81940-00-00 |
from US $78.10 |
||
| replacement | |||||
|
07
|
07
4KD-81940-00-00 Starter Relay Assy (Ms5D-611)Hondaa lock |
4KD-81940-00-00 |
from US $97.54 |
||
|
08
|
08
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
08
|
08
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
09
|
09
12R-81950-00-00 Starter Circuit Cut-Off Relay(for austria) |
12R-81950-00-00 |
from US $57.75 |
||
| replacements | |||||
|
09
|
09
12R-81950-01-00 Relay Assy (12R-01)(for austria) |
12R-81950-01-00 |
from US $57.75 |
||
|
09
|
09
12R-81950-02-00 RELAY ASSY(for austria) |
12R-81950-02-00 |
from US $53.20 |
||
