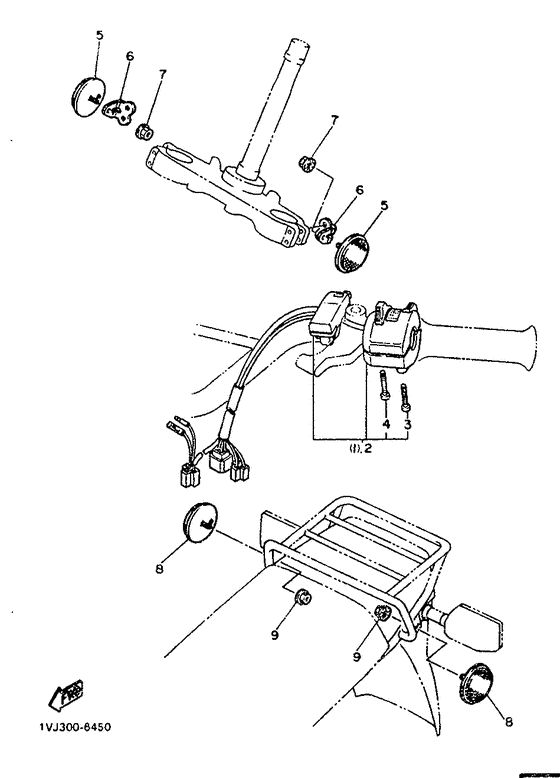

Electrical 2 Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1VK
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
30X-83972-00-00 Switch, Handle 4 |
30X-83972-00-00 |
US $210 |
||
| replacement | |||||
|
01
|
01
30X-83972-01-00 Switch,handle4 |
30X-83972-01-00 |
US $210 |
||
|
02
|
02
34L-83969-00-00
Switch, Handle 5
|
34L-83969-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
03
|
03
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
04
|
04
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
05
|
05
20G-85110-00-00 Reflector Assy |
20G-85110-00-00 |
from US $15.30 |
||
| replacement | |||||
|
05
|
05
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
06
|
06
49R-85112-00-00 Bracket, Reflector 1 |
49R-85112-00-00 |
from US $10.63 |
||
|
07
|
07
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
07
|
07
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
08
|
08
20G-85110-00-00 Reflector Assy |
20G-85110-00-00 |
from US $15.30 |
||
| replacement | |||||
|
08
|
08
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
09
|
09
95702-05500-00 Nut, With Washer(for denmark) |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
09
|
09
95707-05500-00 Nut, Flange(for denmark) |
95707-05500-00 |
from US $1.07 |
||
