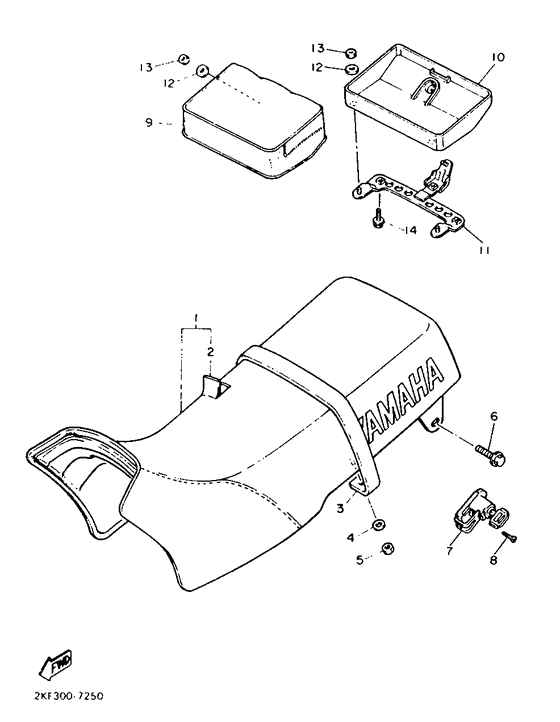

Seat Diagram Yamaha XT600 XT600
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2KF
- Sales region
- France (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2KF-24770-00-00
Semi-Double Seat Assy
Ur chappy red for w, yb |
2KF-24770-00-00 |
— | ||
|
01
|
01
2KF-24770-20-00
Semi-Double Seat Assy
Ur pastel blue for fwb |
2KF-24770-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur pastel blue for fwb |
999-99999-99-00 |
— | ||
|
02
|
02
2KF-24731-00-00
Cover, Seat
Ur chappy red for w, yb |
2KF-24731-00-00 |
— | ||
|
02
|
02
2KF-24731-10-00
Cover, Seat
Ur pastel blue for fwb |
2KF-24731-10-00 |
— | ||
|
03
|
03
2KF-24734-00-00
Band, Seat
Ur chappy red w, yb |
2KF-24734-00-00 |
— | ||
|
03
|
03
2KF-24734-10-00
Band, Seat
Ur pastel blue for fwb |
2KF-24734-10-00 |
— | ||
|
04
|
04
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
05
|
05
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
06
|
06
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
06
|
06
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
07
|
07
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
07
|
07
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
08
|
08
92701-06015-00 Screw, Flat Head |
92701-06015-00 |
from US $2.27 |
||
| replacements | |||||
|
08
|
08
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.36 |
||
|
08
|
08
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
09
|
09
33G-24850-00-00
Carrier Box Assembly
|
33G-24850-00-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
33G-24833-00-00
Bracket, Carrier 2
|
33G-24833-00-00 |
— | ||
|
11
|
11
49R-24884-00-00
Stay, Document Box
|
49R-24884-00-00 |
— | ||
|
12
|
12
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
13
|
13
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
13
|
13
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
13
|
13
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
14
|
14
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
14
|
14
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
14
|
14
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
