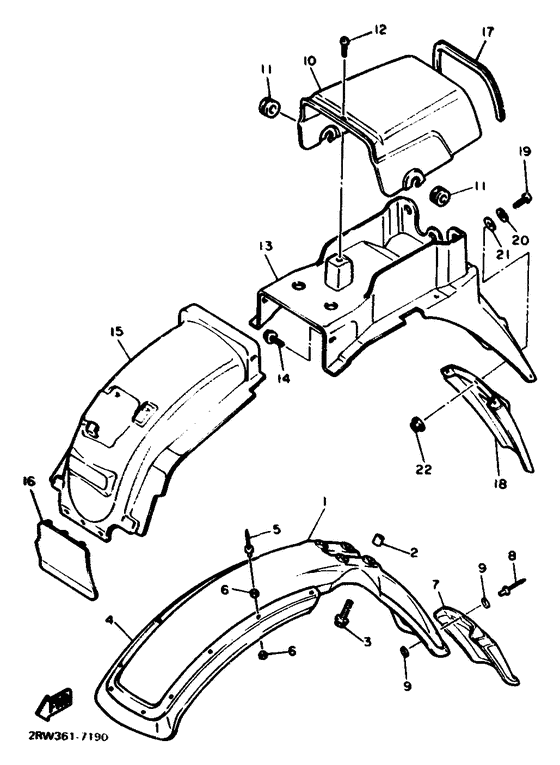

Fender Diagram Yamaha XT600 XT600
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2RW
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1VJ-21511-10-00 Fender, FrontUr white |
1VJ-21511-10-00 |
US $132.36 |
||
| replacement | |||||
|
01
|
01
30X-21511-00-00 309 Fender, Front (White)Ur white |
30X-21511-00-00 |
from US $68.08 |
||
|
01
|
01
1VJ-21511-20-00
Fender, Front
Ur faraway blue |
1VJ-21511-20-00 |
— | ||
| replacement | |||||
|
01
|
01
1VJ-21511-00-00
Fender, Front
Ur faraway blue |
1VJ-21511-00-00 |
— | ||
|
02
|
02
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
02
|
02
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
03
|
03
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
04
|
04
1VJ-21551-50-00
Fender, Over
Ur profound blue |
1VJ-21551-50-00 |
— | ||
|
04
|
04
30X-21551-50-00
Fender, Over
Ur chappy red |
30X-21551-50-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
Ur chappy red |
999-99999-99-00 |
— | ||
|
05
|
05
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $2.05 |
||
|
06
|
06
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
07
|
07
43F-21521-00-00
Flap, Front Fender
|
43F-21521-00-00 |
— | ||
|
08
|
08
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $2.05 |
||
|
09
|
09
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
10
|
10
1VJ-21611-00-00
Fender, Rear
Ur white |
1VJ-21611-00-00 |
— | ||
|
10
|
10
1VJ-21611-10-00
Fender, Rear
Ur faraway vlue |
1VJ-21611-10-00 |
— | ||
|
11
|
11
90480-19368-00 Grommet |
90480-19368-00 |
from US $1.56 |
||
|
12
|
12
90164-06004-00 Screw, Tapping |
90164-06004-00 |
from US $1.26 |
||
| replacement | |||||
|
12
|
12
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
13
|
13
1VJ-21685-10-00
Bracket, License
|
1VJ-21685-10-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
14
|
14
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
15
|
15
1VJ-21629-00-00
Guard, Mud
|
1VJ-21629-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1VJ-21629-01-00
Guard, Mud
|
1VJ-21629-01-00 |
— | ||
|
16
|
16
30X-21621-00-00 Flap |
30X-21621-00-00 |
from US $18.99 |
||
|
17
|
17
1VJ-28346-00-00
Mole 2
|
1VJ-28346-00-00 |
— | ||
| replacement | |||||
|
17
|
17
1NL-2844U-00-00 Moulding 10 |
1NL-2844U-00-00 |
US $23.26 |
||
|
18
|
18
1VJ-21621-00-00
Flap
|
1VJ-21621-00-00 |
— | ||
|
19
|
19
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
20
|
20
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
20
|
20
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
22
|
22
95702-04500-00 Nut, Flange |
95702-04500-00 |
from US $1.21 |
||
| replacement | |||||
|
22
|
22
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
