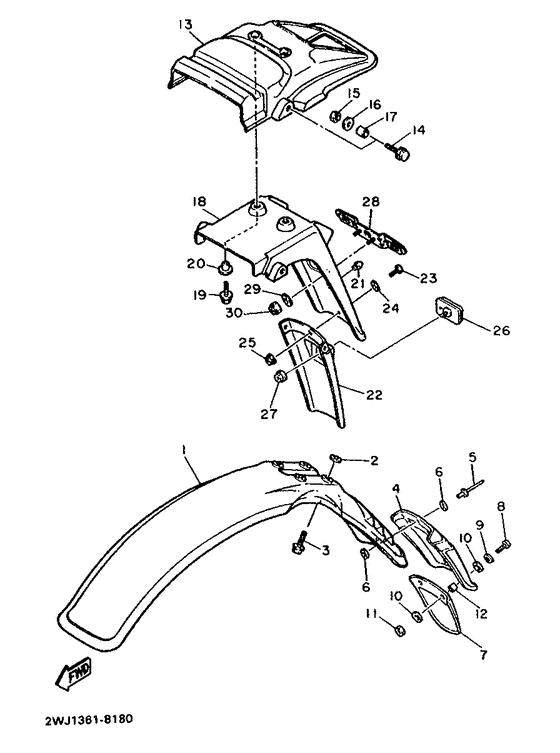

Fender Diagram Yamaha XT600 XT600
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2WJ1
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2KF-21511-00-00
Fender, Front
Ur white |
2KF-21511-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur white |
999-99999-99-00 |
— | ||
|
01
|
01
2KF-21511-20-00
Fender, Front
Ur yamaha black |
2KF-21511-20-00 |
— | ||
| replacement | |||||
|
01
|
01
2KF-21511-10-00
Fender, Front
Ur yamaha black |
2KF-21511-10-00 |
— | ||
|
01
|
01
2KF-21511-40-00
Fender, Front
Ur faraway blue |
2KF-21511-40-00 |
— | ||
| replacement | |||||
|
01
|
01
2KF-21511-30-00
Fender, Front
Ur faraway blue |
2KF-21511-30-00 |
— | ||
|
02
|
02
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
|
03
|
03
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
04
|
04
50U-21521-00-00
Flap, Front Fender
|
50U-21521-00-00 |
— | ||
|
05
|
05
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $2.05 |
||
|
06
|
06
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
07
|
07
395-21521-00-00 Flap, Front Fender |
395-21521-00-00 |
US $21 |
||
|
08
|
08
985-01050-16-00
Screw, Pan Head
|
985-01050-16-00 |
— | ||
| replacements | |||||
|
08
|
08
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
08
|
08
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
09
|
09
90206-05100-00
Washer, Wave
|
90206-05100-00 |
— | ||
|
10
|
10
90201-05651-00 Washer, Plate |
90201-05651-00 |
from US $2.25 |
||
| replacement | |||||
|
10
|
10
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
11
|
11
95302-05700-00 Nut, Hexagon |
95302-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
12
|
12
90387-05679-00 Collar |
90387-05679-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90387-051N8-00 Collar |
90387-051N8-00 |
from US $0.47 |
||
|
13
|
13
2KF-21611-10-00
Fender, Rear
Ur white |
2KF-21611-10-00 |
— | ||
|
13
|
13
2KF-21611-30-00
Fender, Rear
Ur yamaha black |
2KF-21611-30-00 |
— | ||
|
13
|
13
2KF-21611-50-00
Fender, Rear
Ur faraway blue |
2KF-21611-50-00 |
— | ||
|
14
|
14
95806-08040-00 Bolt, Flange |
95806-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
15
|
15
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
15
|
15
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
16
|
16
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
17
|
17
90387-08043-00 Collar |
90387-08043-00 |
US $2.13 |
||
| replacement | |||||
|
17
|
17
90387-082N1-00 Collar |
90387-082N1-00 |
from US $2.13 |
||
|
18
|
18
2KF-21685-10-00 Bracket, License |
2KF-21685-10-00 |
US $33.05 |
||
| replacement | |||||
|
18
|
18
2KF-21685-11-00
Bracket, License
|
2KF-21685-11-00 |
— | ||
|
19
|
19
95806-06025-00 Bolt Hexagon |
95806-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
19
|
19
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
20
|
20
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
21
|
21
42U-21639-00-00 Damper 2 |
42U-21639-00-00 |
from US $2.98 |
||
|
22
|
22
1VJ-21621-00-00
Flap
|
1VJ-21621-00-00 |
— | ||
|
23
|
23
98508-04018-00
Screw, Pan Head
|
98508-04018-00 |
— | ||
|
24
|
24
92906-04200-00 Washer |
92906-04200-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
25
|
25
95702-04500-00 Nut, Flange |
95702-04500-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
|
26
|
26
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
26
|
26
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
27
|
27
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
28
|
28
1KH-84751-00-90 Bracket, LicenseUni chrome |
1KH-84751-00-90 |
from US $16.01 |
||
| replacement | |||||
|
28
|
28
999-99023-51-00 Bracket, LicenseUni chrome |
999-99023-51-00 |
from US $13.07 |
||
|
29
|
29
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
29
|
29
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
29
|
29
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
30
|
30
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
30
|
30
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
