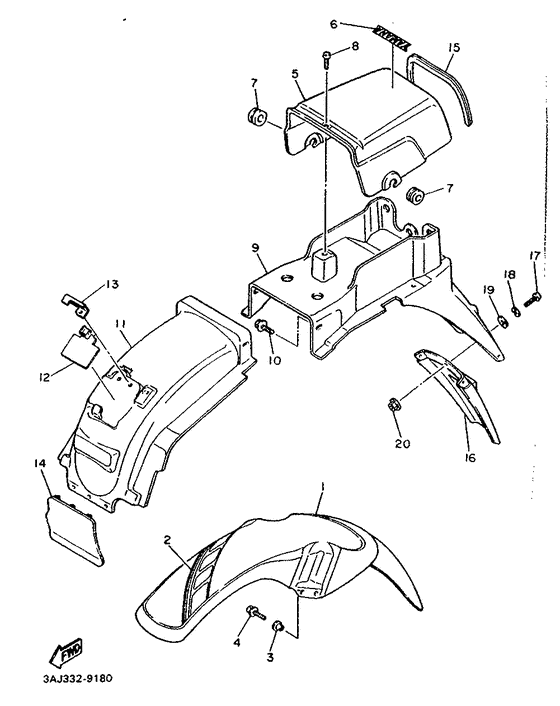

Fender Diagram Yamaha XT600 XT600
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3AJ4
- Sales region
- France (999)
- Engine Capacity
- 600
- Model
- XT600Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AJ-21511-00-98
Fender, Front
Ur white/black |
3AJ-21511-00-98 |
— | ||
|
01
|
01
3AJ-21511-10-98
Fender, Front
Ur blue/black |
3AJ-21511-10-98 |
— | ||
|
02
|
02
3AJ-21569-00-00
Graphic 1
For fwb |
3AJ-21569-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
For fwb |
999-99999-99-00 |
— | ||
|
03
|
03
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
03
|
03
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
04
|
04
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
05
|
05
1VJ-21611-00-00
Fender, Rear
Ur white |
1VJ-21611-00-00 |
— | ||
|
05
|
05
1VJ-21611-10-00
Fender, Rear
Ur faraway blue |
1VJ-21611-10-00 |
— | ||
|
06
|
06
99231-00020-00 Emblem, YamahaUr for fwb |
99231-00020-00 |
from US $8.08 |
||
| replacement | |||||
|
06
|
06
99241-00080-00 Emblem, YamahaUr for fwb |
99241-00080-00 |
from US $8.08 |
||
|
06
|
06
99234-00020-00 Emblem, Yamaha (Black)Ur for w |
99234-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
06
|
06
99244-00080-00 Emblem, YamahaUr for w |
99244-00080-00 |
from US $8.74 |
||
|
07
|
07
90480-19368-00 Grommet |
90480-19368-00 |
from US $1.56 |
||
|
08
|
08
90164-06004-00 Screw, Tapping |
90164-06004-00 |
from US $1.26 |
||
| replacement | |||||
|
08
|
08
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
09
|
09
1VJ-21685-11-00
Bracket, License
|
1VJ-21685-11-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
10
|
10
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
11
|
11
1VJ-21629-02-00
Guard, Mud
|
1VJ-21629-02-00 |
— | ||
|
12
|
12
3AJ-21649-00-00
Damper
|
3AJ-21649-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
3AJ-21688-00-00
Bracket, Rear Stay
|
3AJ-21688-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
30X-21621-00-00 Flap |
30X-21621-00-00 |
from US $18.99 |
||
|
15
|
15
1VJ-28346-00-00
Mole 2
|
1VJ-28346-00-00 |
— | ||
| replacement | |||||
|
15
|
15
1NL-2844U-00-00 Moulding 10 |
1NL-2844U-00-00 |
US $23.26 |
||
|
16
|
16
1VJ-21621-00-00
Flap
|
1VJ-21621-00-00 |
— | ||
|
17
|
17
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
18
|
18
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
18
|
18
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
20
|
20
957-01045-00-00
Nut, Flange
|
957-01045-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95707-04500-00 Nut, Flange |
95707-04500-00 |
from US $1.39 |
||
