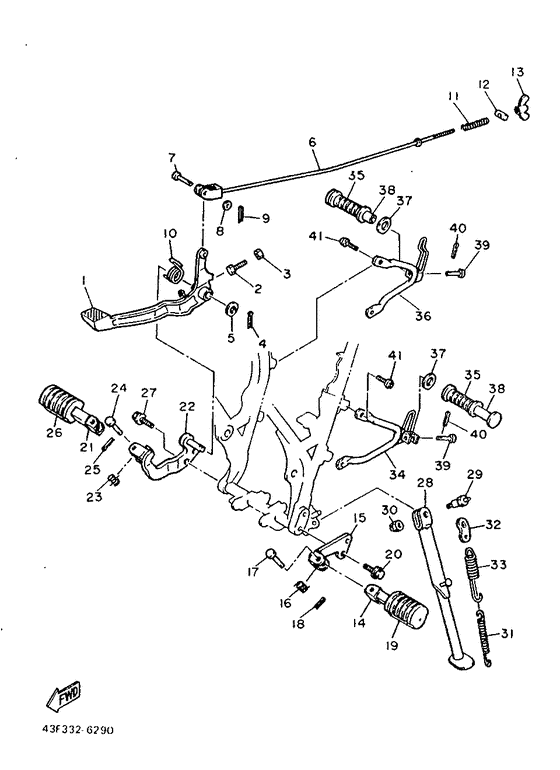

Stand & footrest Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 43F
- Sales region
- Germany (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34L-27211-11-90
Pedal, Brake
Uni chrome (black) |
34L-27211-11-90 |
— | ||
| replacement | |||||
|
01
|
01
1VJ-27200-00-90
Pedal, Brake
Uni chrome (black) |
1VJ-27200-00-90 |
— | ||
|
02
|
02
901-01062-88-00
Bolt, Hexagon (360)
|
901-01062-88-00 |
— | ||
| replacement | |||||
|
02
|
02
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
03
|
03
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
03
|
03
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
04
|
04
91401-30020-00 Pin. Cotter |
91401-30020-00 |
US $1.13 |
||
| replacements | |||||
|
04
|
04
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.25 |
||
|
04
|
04
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
|
05
|
05
90201-14215-00 Washer, Plate |
90201-14215-00 |
from US $1.56 |
||
|
06
|
06
43F-27231-00-00
Rod, Brake
|
43F-27231-00-00 |
— | ||
|
07
|
07
90240-06040-00 Pin, Clevis |
90240-06040-00 |
from US $4.11 |
||
| replacement | |||||
|
07
|
07
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
08
|
08
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
09
|
09
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
09
|
09
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
09
|
09
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
10
|
10
90508-32690-00
Spring, Torsion
|
90508-32690-00 |
— | ||
|
11
|
11
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
12
|
12
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
13
|
13
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
14
|
14
214-27421-00-33 Footrest 2Yamaha black |
214-27421-00-33 |
US $39.93 |
||
| replacement | |||||
|
14
|
14
214-27421-00-00 Footrest 2Yamaha black |
214-27421-00-00 |
from US $8.08 |
||
|
15
|
15
34L-27412-00-R4 Bracket, Footrest 1 |
34L-27412-00-R4 |
US $54.31 |
||
|
16
|
16
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
17
|
17
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
18
|
18
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
18
|
18
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
19
|
19
214-27413-00-00 Cover, Footrest |
214-27413-00-00 |
from US $15.30 |
||
|
20
|
20
95821-10025-00 Bolt, Flange |
95821-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
21
|
21
214-27421-00-33 Footrest 2Yamaha black |
214-27421-00-33 |
US $39.93 |
||
| replacement | |||||
|
21
|
21
214-27421-00-00 Footrest 2Yamaha black |
214-27421-00-00 |
from US $8.08 |
||
|
22
|
22
34L-27422-01-R4 Bracket, Footrest 2 |
34L-27422-01-R4 |
US $124.58 |
||
| replacement | |||||
|
22
|
22
34L-27422-01-00 Bracket, Footrest 2 (34L-27422- |
34L-27422-01-00 |
US $124.58 |
||
|
23
|
23
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
24
|
24
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
25
|
25
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
25
|
25
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
26
|
26
214-27413-00-00 Cover, Footrest |
214-27413-00-00 |
from US $15.30 |
||
|
27
|
27
95821-10025-00 Bolt, Flange |
95821-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
28
|
28
55W-27311-00-R4
Stand,side
|
55W-27311-00-R4 |
— | ||
| replacement | |||||
|
28
|
28
55W-27311-01-00
Stand, Side
|
55W-27311-01-00 |
— | ||
|
29
|
29
901-09103-A3-00
Bolt
|
901-09103-A3-00 |
— | ||
|
30
|
30
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
31
|
31
90506-18224-00 Spring, Tension |
90506-18224-00 |
from US $5.10 |
||
|
32
|
32
3Y3-27315-00-00 Link, Side Stand |
3Y3-27315-00-00 |
from US $3.59 |
||
|
33
|
33
90506-26225-00 Spring, Tension |
90506-26225-00 |
from US $6.52 |
||
|
34
|
34
26F-27432-00-FH
Bracket 1
Fire red |
26F-27432-00-FH |
— | ||
|
35
|
35
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
36
|
36
50T-27442-00-FH
Bracket 2
Fire red |
50T-27442-00-FH |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
Fire red |
999-99999-99-00 |
— | ||
|
37
|
37
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
38
|
38
120-27431-00-00
Footrest, Rear 1
|
120-27431-00-00 |
— | ||
| replacement | |||||
|
38
|
38
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
39
|
39
90240-06009-00 Pin |
90240-06009-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
40
|
40
914-01160-15-00
Pin, Cotter
|
914-01160-15-00 |
— | ||
| replacement | |||||
|
40
|
40
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
41
|
41
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
