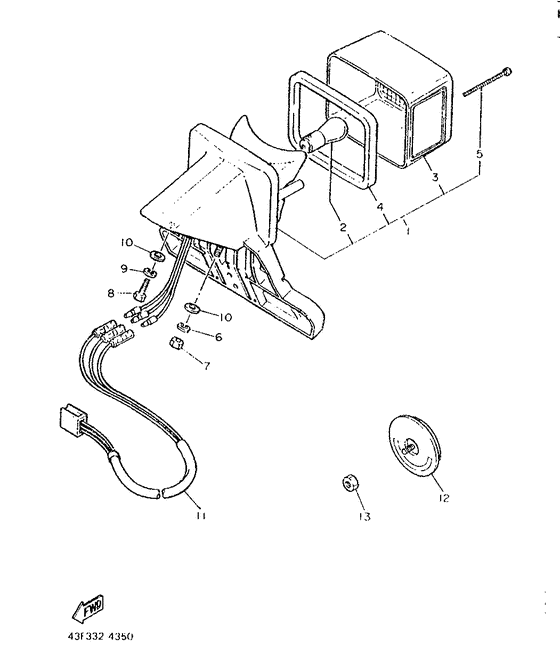

Taillight Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 43F
- Sales region
- Germany (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5Y3-84700-E1-00
Taillight Assy
|
5Y3-84700-E1-00 |
— | ||
|
02
|
02
31L-84714-00-00
Bulb (12V-21/5W)
|
31L-84714-00-00 |
— | ||
| replacements | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $5.28 |
||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
|
03
|
03
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
03
|
03
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
04
|
04
15A-84545-00-00
Gasket, Lens
|
15A-84545-00-00 |
— | ||
|
05
|
05
3Y1-84524-00-00 Screw, Lens Fitting |
3Y1-84524-00-00 |
from US $3.40 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
07
|
07
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
07
|
07
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
08
|
08
97302-06025-00 Bolt |
97302-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
09
|
09
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
09
|
09
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
11
|
11
5Y1-84717-00-00
Cord, Taillight
|
5Y1-84717-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
449-85131-02-00 Reflector, Rear 1 |
449-85131-02-00 |
from US $12.46 |
||
|
13
|
13
95302-05600-00 Nut, Hexagon |
95302-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
