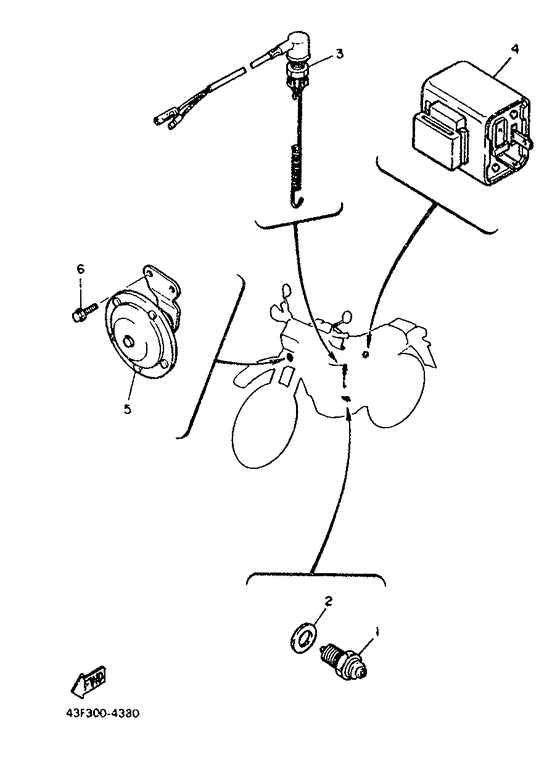

Electrical 2 Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 43F
- Sales region
- France (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
01
|
01
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
01
|
01
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
02
|
02
90430-10027-00 Gasket 256-13168-00 |
90430-10027-00 |
from US $1.39 |
||
| replacement | |||||
|
02
|
02
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
03
|
03
34L-82530-00-00 Stop Switch Assy |
34L-82530-00-00 |
from US $26.74 |
||
| replacement | |||||
|
03
|
03
34L-82530-02-00 Stop Switch Assembly |
34L-82530-02-00 |
US $32.54 |
||
|
04
|
04
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
05
|
05
12R-83371-20-00 Horn |
12R-83371-20-00 |
from US $62.81 |
||
| replacement | |||||
|
05
|
05
1FK-83371-02-00
Horn
|
1FK-83371-02-00 |
— | ||
|
06
|
06
95801-06010-00 Bolt, Flange(for austria) |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
06
|
06
95817-06010-00 Bolt, Flange(for austria) |
95817-06010-00 |
from US $1.18 |
||
|
06
|
06
95812-06010-00 Bolt, Flange(for austria) |
95812-06010-00 |
from US $1.07 |
||
