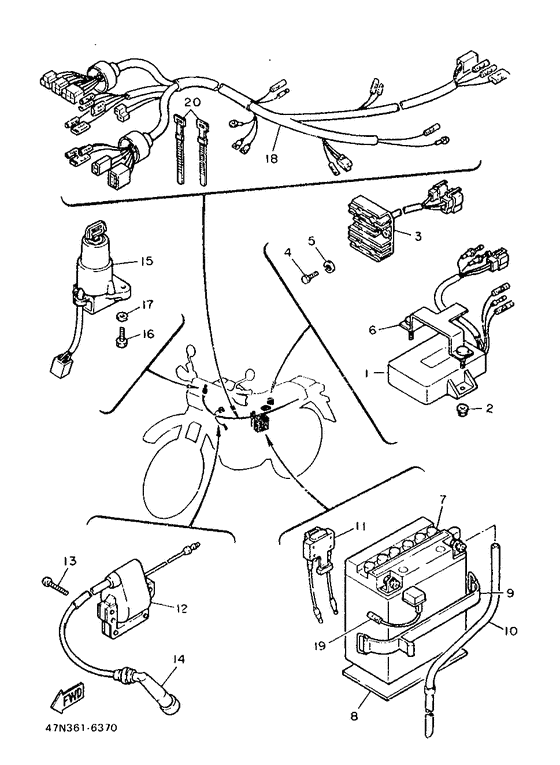

Electrical 1 Diagram Yamaha XT600 XT600
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 47N
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
43F-85540-51-00
C.d.i. Unit Assy
|
43F-85540-51-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
02
|
02
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
03
|
03
34L-81960-A0-00
Rectifier/reg Assembly
|
34L-81960-A0-00 |
— | ||
|
04
|
04
97702-06016-00
Screw, Tapping
|
97702-06016-00 |
— | ||
|
05
|
05
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
06
|
06
34L-8553A-00-00
Stay Unit
|
34L-8553A-00-00 |
— | ||
|
07
|
07
43F-82110-60-00
Battery Assy
|
43F-82110-60-00 |
— | ||
| replacements | |||||
|
07
|
07
907-9R242-85-00
Battery (Yb5L-B)
|
907-9R242-85-00 |
— | ||
|
07
|
07
YB5-LB000-00-00
Bat Yb5L-B Yu
|
YB5-LB000-00-00 |
— | ||
|
07
|
07
CB5-LB000-00-00
12N5.5A-3B GS BATTE
|
CB5-LB000-00-00 |
— | ||
|
08
|
08
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
09
|
09
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
10
|
10
90445-08782-00 Hose |
90445-08782-00 |
US $10.91 |
||
| replacement | |||||
|
10
|
10
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
11
|
11
5Y1-82180-00-00
Circuit Breaker Assembly
|
5Y1-82180-00-00 |
— | ||
|
12
|
12
43F-82310-50-00 Ignition Coil Assy |
43F-82310-50-00 |
from US $138.11 |
||
| replacement | |||||
|
12
|
12
43F-82310-51-00
Ignition Coil Assembly
|
43F-82310-51-00 |
— | ||
|
13
|
13
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
14
|
14
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
14
|
14
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
15
|
15
5Y3-82501-80-00 Main Switch Steering Lock |
5Y3-82501-80-00 |
US $170.67 |
||
| replacement | |||||
|
15
|
15
5Y3-82501-81-00 Main Switch Steering Lock |
5Y3-82501-81-00 |
US $170.67 |
||
|
16
|
16
973-01060-16-00
Bolt
|
973-01060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
43F-82590-20-00
Wire Harness Assy
|
43F-82590-20-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
1M1-82115-00-00 Wire, Plus Lead |
1M1-82115-00-00 |
from US $26.21 |
||
|
20
|
20
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
