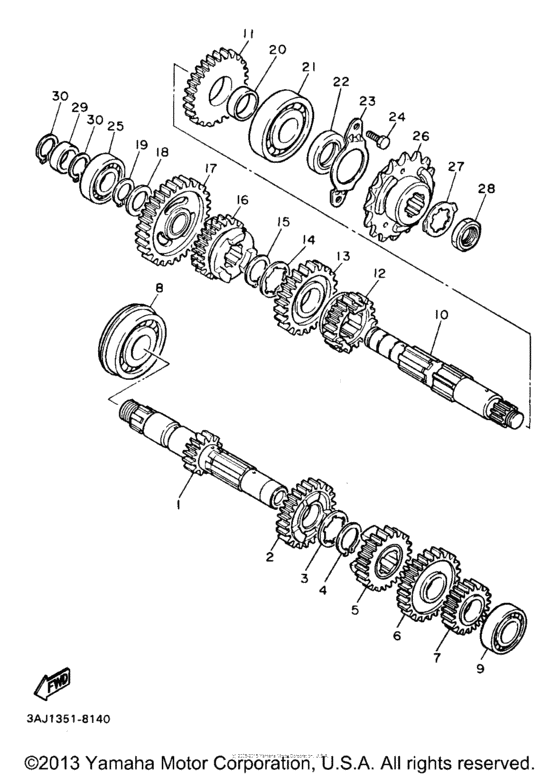

Transmission Diagram Yamaha XT600 XT600
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2RW-17411-00-00 Axle, Main12T |
2RW-17411-00-00 |
US $182.41 |
||
|
2
|
2
34K-17141-00-00 Gear, 4Th Pinion(22T)4TH PINION 22T |
34K-17141-00-00 |
from US $62.68 |
||
|
3
|
3
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
4
|
4
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
5
|
5
1VJ-17131-00-00 Gear, 3Rd Pinion (20T)3RD PINION 20T |
1VJ-17131-00-00 |
from US $59.15 |
||
|
6
|
6
2JT-17151-01-00 Gear, 5Th Pipion5TH PINION 24T |
2JT-17151-01-00 |
from US $78.89 |
||
|
7
|
7
34K-17121-01-00 Gear, 2Nd Pinion (17T)2ND PINION 17T |
34K-17121-01-00 |
from US $39.17 |
||
|
8
|
8
93306-30540-00 Bearing6305NRX1C3 |
93306-30540-00 |
from US $34.85 |
||
|
9
|
9
93306-00431-00 Bearing |
93306-00431-00 |
from US $21.92 |
||
|
10
|
10
2RW-17402-00-00
Drive Axle Assembly
|
2RW-17402-00-00 |
— | ||
|
11
|
11
2JT-17221-00-00
Gear, 2Nd Wheel (27T)
2ND WHEEL 27T |
2JT-17221-00-00 |
— | ||
|
12
|
12
2JT-17251-00-00 Gear, 5Th Wheel (19T)5TH WHEEL 19T |
2JT-17251-00-00 |
from US $87.12 |
||
|
13
|
13
1VJ-17231-00-00
Gear, 3Rd Wheel (24T)
3RD WHEEL 24T |
1VJ-17231-00-00 |
— | ||
|
14
|
14
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
15
|
15
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
16
|
16
3AJ-17241-00-00 Gear, 4Th Wheel4TH WHEEL 21T |
3AJ-17241-00-00 |
US $46.94 |
||
|
17
|
17
3AJ-17211-00-00
Gear, 1St Wheel
1ST WHEEL 31T |
3AJ-17211-00-00 |
— | ||
|
18
|
18
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
19
|
19
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
20
|
20
90560-25283-00 Spacer |
90560-25283-00 |
US $13.81 |
||
|
21
|
21
93306-30535-00 Bearing |
93306-30535-00 |
from US $52.09 |
||
|
22
|
22
93102-25226-00 Oil Seal |
93102-25226-00 |
from US $6.94 |
||
| replacement | |||||
|
22
|
22
93102-25218-00 Oil Seal |
93102-25218-00 |
from US $9.98 |
||
|
23
|
23
5Y1-17471-00-00 Plate, Cover |
5Y1-17471-00-00 |
US $12.37 |
||
|
24
|
24
97021-06014-00 Bolt(1Xr) |
97021-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
24
|
24
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
25
|
25
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.06 |
||
| replacement | |||||
|
25
|
25
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.48 |
||
|
26
|
26
99999-01798-00 Sprocket, Drive(Collar, 2Nx)15T |
99999-01798-00 |
from US $134.71 |
||
|
27
|
27
902-15232-65-00 Washer, Lock |
902-15232-65-00 |
from US $2.70 |
||
|
28
|
28
90179-18552-00 Nut |
90179-18552-00 |
from US $10.96 |
||
|
29
|
29
90560-20199-00 Spacer |
90560-20199-00 |
from US $8.36 |
||
|
30
|
30
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
