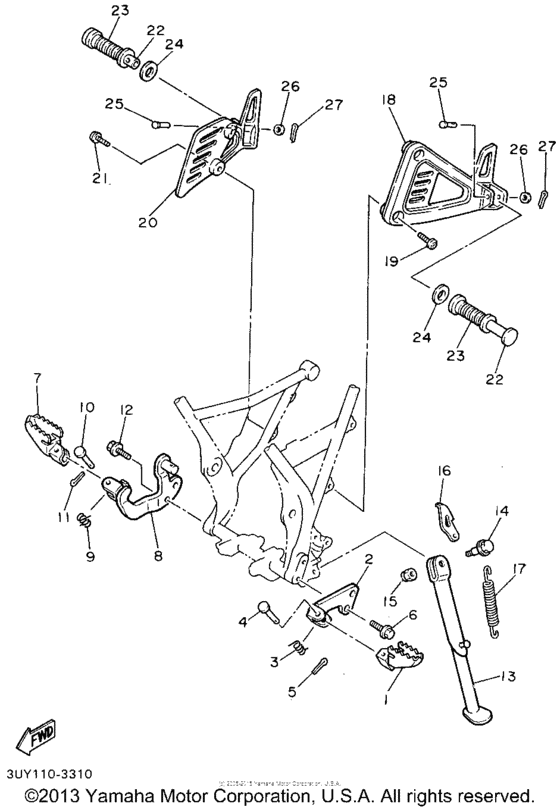

Stand & Footrest Diagram Yamaha XT600 XT600
- Year
- 1994
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22W-27411-01-90 Footrest 1UNI-CHROME BLACK |
22W-27411-01-90 |
from US $29.47 |
||
|
2
|
2
34L-27412-00-R4 Bracket, Footrest 1BLACK |
34L-27412-00-R4 |
US $54.31 |
||
|
3
|
3
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
4
|
4
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
5
|
5
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
5
|
5
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
6
|
6
95826-10025-00 Bolt, Flange |
95826-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
7
|
7
22W-27421-01-90 Footrest 2 (3R1-27421-00)3R1-27421-00 UNI-CHROME BLACK |
22W-27421-01-90 |
from US $36.11 |
||
|
8
|
8
2KF-27422-00-R4 Bracket, Footrest 2BLACK |
2KF-27422-00-R4 |
from US $86.35 |
||
|
9
|
9
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
10
|
10
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
11
|
11
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
11
|
11
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
12
|
12
95826-10025-00 Bolt, Flange |
95826-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
13
|
13
3AJ-27311-00-R4 Stand, Side |
3AJ-27311-00-R4 |
from US $95.53 |
||
| replacement | |||||
|
13
|
13
3YF-27311-00-00 Stand, Side |
3YF-27311-00-00 |
from US $89.39 |
||
|
14
|
14
90105-12616-00
Bolt, Washer Based
|
90105-12616-00 |
— | ||
|
15
|
15
901-85121-19-00 Nut, Self Locking (23X) |
901-85121-19-00 |
from US $7.79 |
||
|
16
|
16
5Y1-27315-00-00 Link, Side Stand |
5Y1-27315-00-00 |
from US $10.63 |
||
|
17
|
17
90507-32020-00
Spring, Tension
|
90507-32020-00 |
— | ||
|
18
|
18
3TB-2741L-00-00 Bracket 4 |
3TB-2741L-00-00 |
US $270.95 |
||
| replacement | |||||
|
18
|
18
3TB-2741L-01-00 Bracket 4 |
3TB-2741L-01-00 |
US $270.95 |
||
|
19
|
19
90109-087F1-00 Bolt |
90109-087F1-00 |
from US $2.77 |
||
|
20
|
20
3TB-2742L-00-00 Bracket 5 |
3TB-2742L-00-00 |
from US $212.27 |
||
| replacement | |||||
|
20
|
20
3TB-2742L-01-00 Bracket 5 |
3TB-2742L-01-00 |
from US $212.27 |
||
|
21
|
21
90109-087F1-00 Bolt |
90109-087F1-00 |
from US $2.77 |
||
|
22
|
22
120-27431-00-00
Footrest, Rear 1
|
120-27431-00-00 |
— | ||
| replacement | |||||
|
22
|
22
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
23
|
23
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
24
|
24
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
25
|
25
917-01060-38-00
Pin
|
917-01060-38-00 |
— | ||
| replacement | |||||
|
25
|
25
91702-06038-00 Pin, Clevis |
91702-06038-00 |
from US $1.52 |
||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
27
|
27
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
