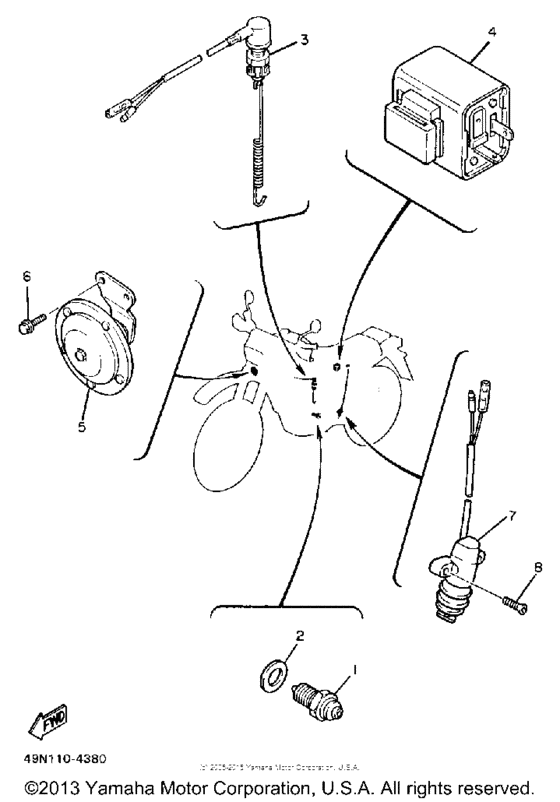

Electrical (2) Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $24.58 |
||
|
2
|
2
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
3
|
3
34L-82530-02-00 Stop Switch Assembly |
34L-82530-02-00 |
US $32.54 |
||
|
4
|
4
30X-83350-20-00
Flasher Relay Assy
|
30X-83350-20-00 |
— | ||
|
5
|
5
12R-83371-20-00 Horn |
12R-83371-20-00 |
from US $62.81 |
||
| replacement | |||||
|
5
|
5
1FK-83371-02-00
Horn
|
1FK-83371-02-00 |
— | ||
|
6
|
6
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
6
|
6
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
7
|
7
5Y1-82566-00-00 Switch, Side Stand |
5Y1-82566-00-00 |
from US $120.34 |
||
|
8
|
8
90152-05021-00 Screw, Flat Head |
90152-05021-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
