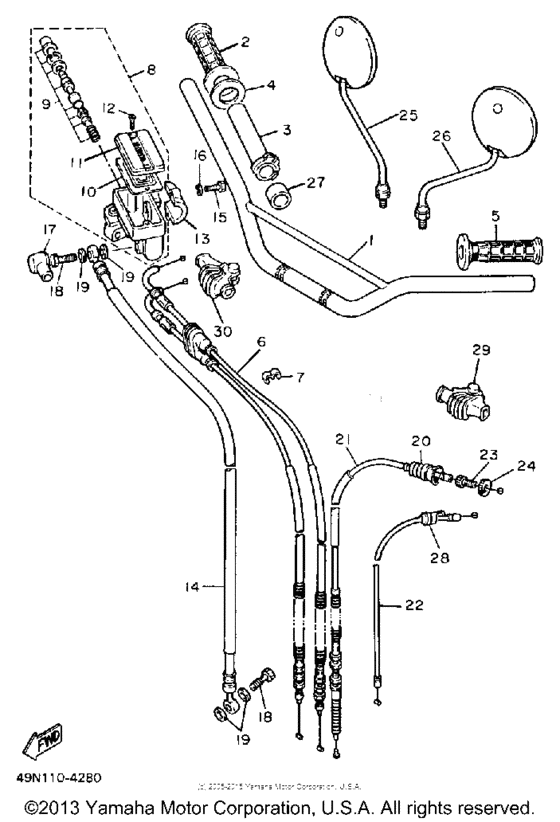

Handlebar - cable Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34K-26111-00-00 Handlebar |
34K-26111-00-00 |
from US $111.91 |
||
|
2
|
2
33G-26242-00-00 Grip (Right) |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
2
|
2
33G-26242-01-00 Grip (Right) |
33G-26242-01-00 |
from US $14.09 |
||
|
3
|
3
3Y1-26243-01-00 Tube,throttle Guide |
3Y1-26243-01-00 |
from US $21.39 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
33G-26241-00-00 Grip (Left) |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
5
|
5
33G-26241-01-00 Grip (Left) |
33G-26241-01-00 |
from US $19.94 |
||
|
6
|
6
43F-26302-01-00
Throttle Cable Assembly
|
43F-26302-01-00 |
— | ||
|
7
|
7
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
8
|
8
2RJ-25870-00-00 Master Cylinder Sub Assembly |
2RJ-25870-00-00 |
from US $227.72 |
||
| replacement | |||||
|
8
|
8
3TB-25870-00-00 Master Cylinder Sub Assembly |
3TB-25870-00-00 |
from US $240.40 |
||
|
9
|
9
23L-W0041-00-00 Cylinder Kit, Master |
23L-W0041-00-00 |
from US $60.38 |
||
|
10
|
10
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
11
|
11
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
12
|
12
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
12
|
12
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
13
|
13
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
14
|
14
43F-25872-02-00
Hose,brake
|
43F-25872-02-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99024-94-00
element
|
999-99024-94-00 |
— | ||
|
15
|
15
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
17
|
17
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
18
|
18
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
18
|
18
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
19
|
19
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
19
|
19
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
20
|
20
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
21
|
21
55U-26335-01-00 Cable, clutch |
55U-26335-01-00 |
from US $50.29 |
||
|
22
|
22
34L-26331-00-00
Cable, Starter 1
|
34L-26331-00-00 |
— | ||
|
23
|
23
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
23
|
23
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
24
|
24
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
24
|
24
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
25
|
25
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
|
26
|
26
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
26
|
26
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
27
|
27
90387-227H7-00 Collar |
90387-227H7-00 |
from US $1.70 |
||
|
28
|
28
5Y1-26339-00-00 Boot |
5Y1-26339-00-00 |
from US $13.32 |
||
|
29
|
29
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
30
|
30
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
