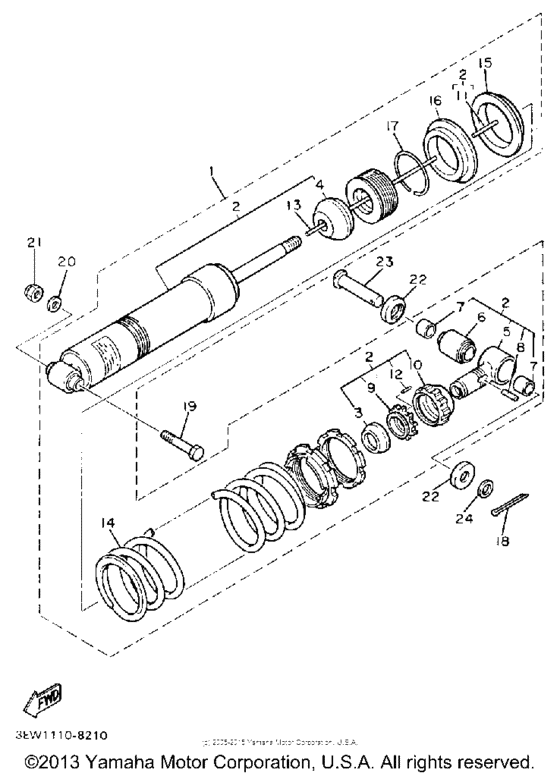

Rear shocks Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50T-22210-00-6W
Shk/abs Assembly, Rear
|
50T-22210-00-6W |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
50T-22201-00-00
Damper Sub Assembly
|
50T-22201-00-00 |
— | ||
|
3
|
3
3R4-22221-01-00
Cover
|
3R4-22221-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
50T-22493-00-00
Bump, Stop
|
50T-22493-00-00 |
— | ||
|
5
|
5
50T-22409-00-00
Upper Brkt Sub Assembly
|
50T-22409-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
34L-22226-01-00 Bush, Shock Absorber Lower |
34L-22226-01-00 |
from US $28.60 |
||
|
7
|
7
90380-14130-00 Bush, Solid |
90380-14130-00 |
from US $7.93 |
||
|
8
|
8
93604-26132-00
Pin, Dowel
|
93604-26132-00 |
— | ||
|
9
|
9
50T-22497-00-00
Nut, Adjusting
|
50T-22497-00-00 |
— | ||
|
10
|
10
50T-22211-00-00
Cover
|
50T-22211-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
93604-21193-00 Pin, Dowel |
93604-21193-00 |
from US $1.04 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
93602-11144-00 Pin, Dowel |
93602-11144-00 |
from US $2.24 |
||
|
13
|
13
50T-22489-00-00 Rod, Push |
50T-22489-00-00 |
US $15.50 |
||
| replacement | |||||
|
13
|
13
2KF-22489-00-00
Rod, Push
|
2KF-22489-00-00 |
— | ||
|
14
|
14
34L-22212-00-6W
Spring, 49N
49N NATIVE RED |
34L-22212-00-6W |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
49N NATIVE RED |
999-99999-99-00 |
— | ||
|
15
|
15
50T-22224-00-00
Guide, Spring 2
|
50T-22224-00-00 |
— | ||
|
16
|
16
3Y1-22223-00-00
Seat, Spring Lower
|
3Y1-22223-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93440-48079-00
Circlip, Outer
|
93440-48079-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
18
|
18
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
19
|
19
90101-12498-00 Bolt |
90101-12498-00 |
from US $6.80 |
||
|
20
|
20
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
21
|
21
90185-12080-00 Nut, Self-Locking |
90185-12080-00 |
from US $6.38 |
||
| replacement | |||||
|
21
|
21
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.94 |
||
|
22
|
22
34L-22129-00-00
Cover, Thrust 2
|
34L-22129-00-00 |
— | ||
|
23
|
23
90240-14106-00 Pin, Clevis |
90240-14106-00 |
from US $9.35 |
||
|
24
|
24
92990-14600-00 Washer |
92990-14600-00 |
from US $6.06 |
||
