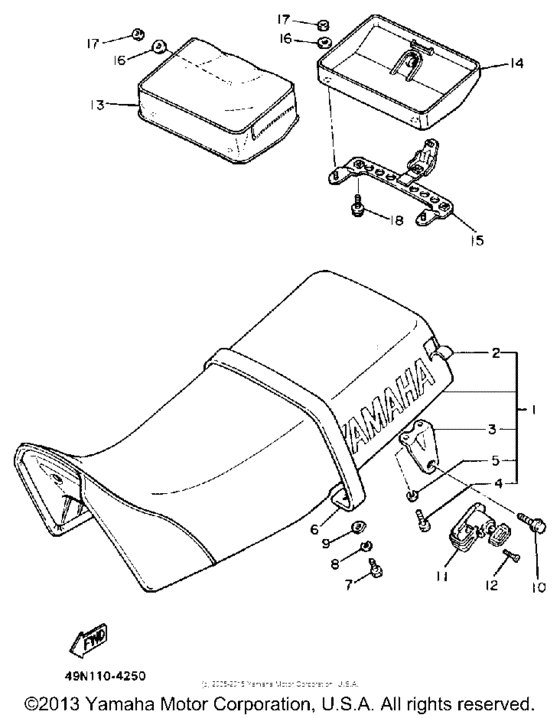

Seat Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-24770-10-00
Semi-Dbl Seat Assembly
|
43F-24770-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
43F-24731-00-00
Cover, Double Seat
|
43F-24731-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
43F-24738-00-00
Bracket, Seat
|
43F-24738-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
4
|
4
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
4
|
4
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
43F-24734-00-00
Band, Seat
|
43F-24734-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
90206-06765-00
Washer, Wave
|
90206-06765-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
10
|
10
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
11
|
11
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
11
|
11
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
12
|
12
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
12
|
12
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.36 |
||
|
12
|
12
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
13
|
13
33G-24850-00-00
Carrier Box Assembly
|
33G-24850-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
33G-24833-00-00
Bracket, Carrier 2
|
33G-24833-00-00 |
— | ||
|
15
|
15
49R-24884-00-00
Stay, Document Box
|
49R-24884-00-00 |
— | ||
|
16
|
16
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
17
|
17
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
17
|
17
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
18
|
18
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
18
|
18
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
18
|
18
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
