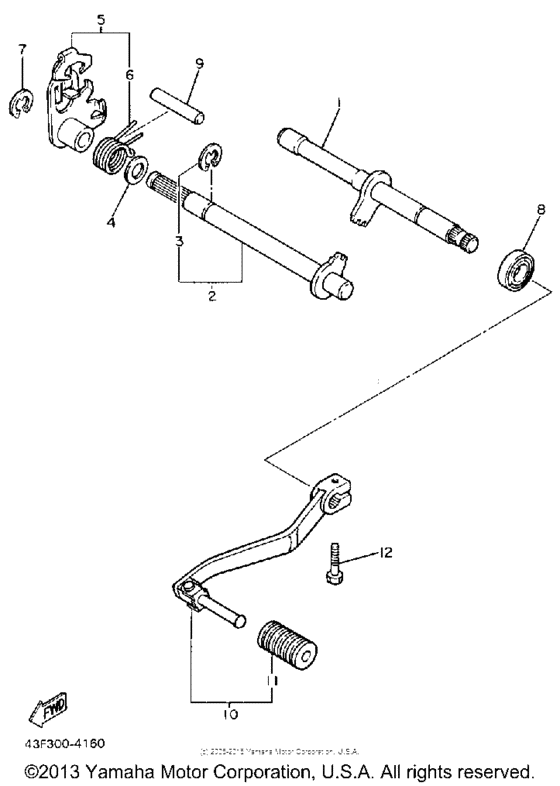

Shift shaft Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-18102-02-00 Shift Shaft Assembly 2 |
43F-18102-02-00 |
from US $32.92 |
||
|
2
|
2
5Y1-18101-02-00
Shift Shaft Assembly
|
5Y1-18101-02-00 |
— | ||
|
3
|
3
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
4
|
4
90201-12474-00 Washer, Plate |
90201-12474-00 |
from US $2.27 |
||
|
5
|
5
34K-18120-00-00
Shift Lever Assembly
|
34K-18120-00-00 |
— | ||
| replacement | |||||
|
5
|
5
34K-18120-01-00
Shift Lever Assy
|
34K-18120-01-00 |
— | ||
|
6
|
6
90508-29629-00
Spring, Torsion
|
90508-29629-00 |
— | ||
|
7
|
7
990-01096-00-00
Circlip (E) (99001-09600-00)
99001-09600-00 |
990-01096-00-00 |
— | ||
| replacement | |||||
|
7
|
7
99080-09600-00 Circlip (E) (99001-09600-00)99001-09600-00 |
99080-09600-00 |
from US $1.50 |
||
|
8
|
8
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.86 |
||
|
9
|
9
93608-33046-00 Pin, Dowel |
93608-33046-00 |
US $5.38 |
||
|
10
|
10
34L-18110-00-00 Shift Pedal Assembly |
34L-18110-00-00 |
from US $61.58 |
||
| replacement | |||||
|
10
|
10
1VJ-18110-01-00 Shift Pedal Assembly |
1VJ-18110-01-00 |
from US $80.46 |
||
|
11
|
11
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $7.21 |
||
|
12
|
12
970-16060-20-00
Bolt(84J)
|
970-16060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
