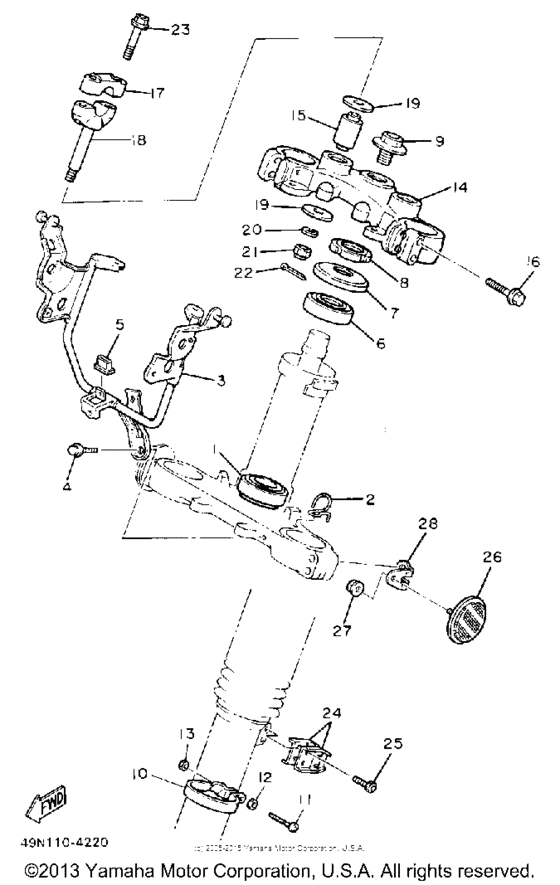

Steering Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
2
|
2
36X-2331E-00-00 Guide, Cable |
36X-2331E-00-00 |
from US $3.12 |
||
|
3
|
3
43F-23174-00-00 Stay, Headlight |
43F-23174-00-00 |
US $129.47 |
||
| replacement | |||||
|
3
|
3
2JX-23174-00-00
Stay, Headlight
|
2JX-23174-00-00 |
— | ||
|
4
|
4
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
5
|
5
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
6
|
6
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
7
|
7
3HE-23416-00-00 Cover, Ball Race 2 |
3HE-23416-00-00 |
from US $15.02 |
||
| replacement | |||||
|
7
|
7
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
8
|
8
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
8
|
8
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
8
|
8
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
9
|
9
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
10
|
10
34L-23318-01-00 Wire, Holder 1 |
34L-23318-01-00 |
US $18.06 |
||
|
11
|
11
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
12
|
12
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
34L-23435-00-98
Crown, Handle
LW GLOSS BLK |
34L-23435-00-98 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
LW GLOSS BLK |
999-99999-99-00 |
— | ||
|
15
|
15
3Y6-23434-00-00 Holder, Pamper |
3Y6-23434-00-00 |
from US $22.72 |
||
| replacement | |||||
|
15
|
15
3Y6-23434-01-00 Holder, Damper |
3Y6-23434-01-00 |
from US $28.57 |
||
|
16
|
16
95816-08040-00 Bolt, Flange |
95816-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
17
|
17
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
18
|
18
3Y6-23442-00-98 Holder, Handle LowerLW GLOSS BLK |
3Y6-23442-00-98 |
from US $35.85 |
||
|
19
|
19
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
20
|
20
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
20
|
20
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
21
|
21
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
21
|
21
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
22
|
22
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
23
|
23
95816-08035-00 Bolt, Flange(36R) |
95816-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
24
|
24
90465-14242-00 Clamp |
90465-14242-00 |
from US $4.39 |
||
|
25
|
25
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
26
|
26
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
27
|
27
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
28
|
28
49R-85112-00-00 Bracket, Reflector 1 |
49R-85112-00-00 |
from US $10.63 |
||
