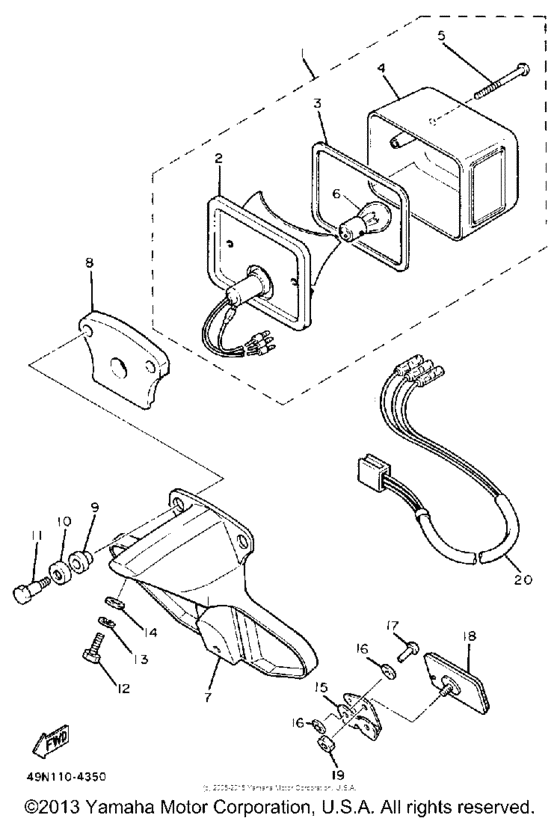

Taillight Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W9-84710-60-00 Taillight Unit Assy |
1W9-84710-60-00 |
from US $78.34 |
||
| replacement | |||||
|
1
|
1
1W9-84710-61-00 Taillight Unit Assy |
1W9-84710-61-00 |
from US $78.34 |
||
|
2
|
2
1M1-84511-60-00
Base, Taillight
|
1M1-84511-60-00 |
— | ||
|
3
|
3
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
3
|
3
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
4
|
4
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
5
|
5
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
6
|
6
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
6
|
6
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
|
7
|
7
49M-84551-00-00
Bracket, Licence
|
49M-84551-00-00 |
— | ||
|
8
|
8
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
|
9
|
9
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
10
|
10
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
11
|
11
90109-06562-00
Bolt
|
90109-06562-00 |
— | ||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
90201-062G3-00 Washer, Plate |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
14
|
14
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
15
|
15
33G-85132-01-00 Bracket, Reflector 1 |
33G-85132-01-00 |
from US $9.92 |
||
| replacement | |||||
|
15
|
15
33G-85132-02-00 Bracket, Reflector 1 |
33G-85132-02-00 |
from US $9.92 |
||
|
16
|
16
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
16
|
16
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
17
|
17
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
18
|
18
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
18
|
18
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
19
|
19
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
20
|
20
5Y1-84717-00-00
Cord, Taillight
|
5Y1-84717-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
