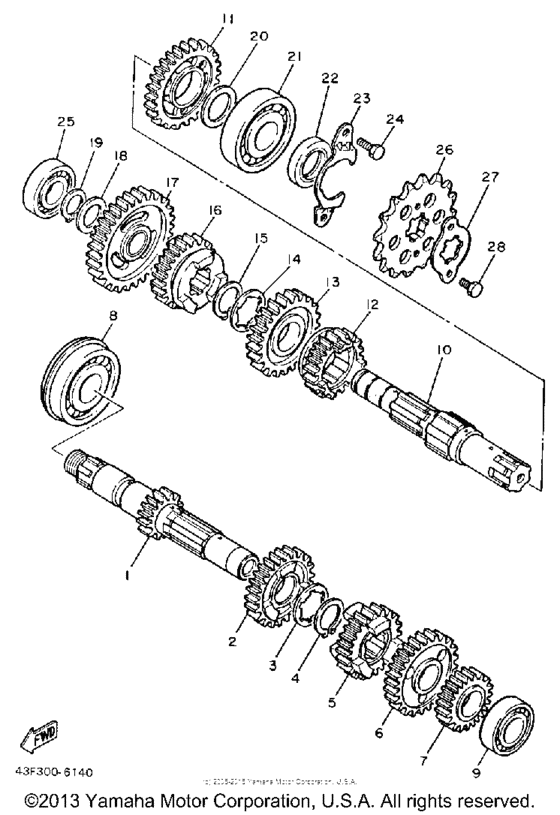

Transmission Diagram Yamaha XT600 XT600
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 600
- Model
- XT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34L-17411-00-00
Axle, Main
|
34L-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
34K-17141-00-00 Gear, 4Th Pinion(22T)4TH PINION 22T |
34K-17141-00-00 |
from US $62.68 |
||
|
3
|
3
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
4
|
4
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
5
|
5
1VJ-17131-00-00 Gear, 3Rd Pinion (20T)3RD PINION 20T |
1VJ-17131-00-00 |
from US $59.15 |
||
|
6
|
6
1VJ-17151-01-00
Gear, 5Th Pinion
5TH PINION |
1VJ-17151-01-00 |
— | ||
|
7
|
7
34K-17121-01-00 Gear, 2Nd Pinion (17T)2ND PINION 17T |
34K-17121-01-00 |
from US $39.17 |
||
|
8
|
8
93306-30540-00 Bearing6305NRX1C3 |
93306-30540-00 |
from US $34.85 |
||
|
9
|
9
93306-00431-00 Bearing |
93306-00431-00 |
from US $21.92 |
||
|
10
|
10
34K-17402-01-00
Drive Axle Assembly
|
34K-17402-01-00 |
— | ||
|
11
|
11
5Y1-17221-01-00
Gear, 2Nd Wheel
2ND WHEEL |
5Y1-17221-01-00 |
— | ||
|
12
|
12
5Y1-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
5Y1-17251-00-00 |
— | ||
| replacement | |||||
|
12
|
12
2JT-17251-10-00
Gear, 5Th Wheel
5TH WHEEL |
2JT-17251-10-00 |
— | ||
|
13
|
13
1VJ-17231-00-00
Gear, 3Rd Wheel (24T)
3RD WHEEL 24T |
1VJ-17231-00-00 |
— | ||
|
14
|
14
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
15
|
15
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.81 |
||
|
16
|
16
55U-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
55U-17241-00-00 |
— | ||
|
17
|
17
34L-17211-00-00
Gear,1St Wheel
|
34L-17211-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99023-06-00
Gear, 1St Wheel
|
999-99023-06-00 |
— | ||
|
18
|
18
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
19
|
19
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
20
|
20
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.81 |
||
|
21
|
21
93306-30535-00 Bearing |
93306-30535-00 |
from US $52.09 |
||
|
22
|
22
93102-25226-00 Oil Seal |
93102-25226-00 |
from US $6.94 |
||
| replacement | |||||
|
22
|
22
93102-25218-00 Oil Seal |
93102-25218-00 |
from US $9.98 |
||
|
23
|
23
5Y1-17471-00-00 Plate, Cover |
5Y1-17471-00-00 |
US $12.37 |
||
|
24
|
24
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
24
|
24
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
24
|
24
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
24
|
24
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
25
|
25
93306-00426-00 Bearing (5Y1) |
93306-00426-00 |
from US $12.06 |
||
| replacement | |||||
|
25
|
25
93306-00423-00 Bearing (7K2) |
93306-00423-00 |
from US $12.48 |
||
|
26
|
26
938-34150-80-00 Sprocket, Drive (5Y1-17461-50)5Y1-17461-50 |
938-34150-80-00 |
from US $25.87 |
||
|
27
|
27
3Y1-17456-00-00 Holder, Sprocket |
3Y1-17456-00-00 |
from US $2.69 |
||
|
28
|
28
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
28
|
28
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
