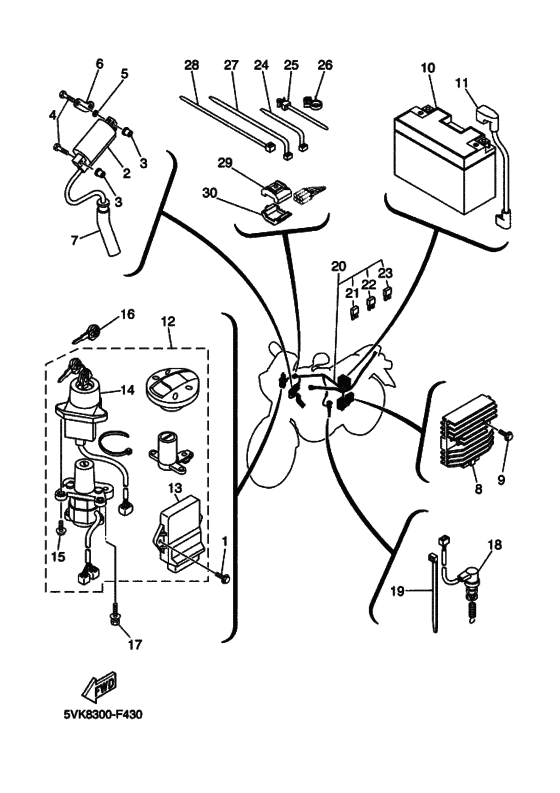

Electrical 1 Diagram Yamaha XT660 XT660X
- Year
- 2008
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 11B2
- Sales region
- Europe (030)
- Engine Capacity
- 660
- Color Variant
- C
- Model
- XT660X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90119-06192-00 Bolt, With Washer |
90119-06192-00 |
from US $1.98 |
||
|
2
|
2
4GV-82310-00-00
Ignition Coil Assy
|
4GV-82310-00-00 |
— | ||
| replacements | |||||
|
2
|
2
4DN-82320-00-00
Ignition Coil Assy
|
4DN-82320-00-00 |
— | ||
|
2
|
2
4DN-82320-01-00 IGNITION COIL ASSY |
4DN-82320-01-00 |
from US $89.88 |
||
|
3
|
3
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.60 |
||
|
4
|
4
97007-05025-00
Bolt
|
97007-05025-00 |
— | ||
| replacement | |||||
|
4
|
4
97017-05025-00 Bolt |
97017-05025-00 |
US $1.49 |
||
|
5
|
5
90201-05556-00 Washer, Plate |
90201-05556-00 |
from US $1.42 |
||
|
6
|
6
5VK-82312-00-00
Holder, Coil Fitting
|
5VK-82312-00-00 |
— | ||
|
7
|
7
5VK-82370-00-00 Plug Cap Assy |
5VK-82370-00-00 |
from US $35.90 |
||
|
8
|
8
5SL-81960-00-00 Rectifier & Regulator Assy |
5SL-81960-00-00 |
from US $135.04 |
||
|
9
|
9
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
10
|
10
5FL-82100-01-00
Gt9B4 Gs Battery -
|
5FL-82100-01-00 |
— | ||
| replacements | |||||
|
10
|
10
GT9-B4000-00-00 LENS, TAILLIGHT |
GT9-B4000-00-00 |
US $135.88 |
||
|
10
|
10
YT9-BBS00-00-00 Battery Assy (Gs Gt9B-4) |
YT9-BBS00-00-00 |
US $182.90 |
||
|
11
|
11
5VK-H2115-00-00
Wire, Plus Lead
|
5VK-H2115-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5VK-H2115-10-00
Wire, Plus Lead
|
5VK-H2115-10-00 |
— | ||
|
12
|
12
5VK-W8250-10-00 Main Sw. Immobilizer Kit |
5VK-W8250-10-00 |
US $1,547.04 |
||
| replacement | |||||
|
12
|
12
5VK-W8250-11-00 Main Sw. Immobilizer Kit |
5VK-W8250-11-00 |
US $1,547.04 |
||
|
13
|
13
5VK-8591A-10-00 Engine Control Unit Assy |
5VK-8591A-10-00 |
from US $881.85 |
||
| replacement | |||||
|
13
|
13
5VK-8591A-11-00 Engine Control Unit Assy |
5VK-8591A-11-00 |
from US $736.29 |
||
|
14
|
14
5VS-8255P-00-00 Immobilizer. Unit Comp |
5VS-8255P-00-00 |
US $390.10 |
||
|
15
|
15
5SL-82113-00-00
Screw
|
5SL-82113-00-00 |
— | ||
| replacement | |||||
|
15
|
15
5SL-82113-01-00 Screw |
5SL-82113-01-00 |
from US $1.56 |
||
|
16
|
16
5SL-82511-08-00 Blank KeyAP |
5SL-82511-08-00 |
from US $21.88 |
||
|
17
|
17
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
17
|
17
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.81 |
||
|
18
|
18
5VK-82530-00-00 Stop Switch Assy |
5VK-82530-00-00 |
US $29.33 |
||
|
19
|
19
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
20
|
20
5VK-H2590-20-00
Wire Harness Assy
|
5VK-H2590-20-00 |
— | ||
|
21
|
21
5JJ-82151-00-00 Fuse (7.5A-Bl)7.5A-BL |
5JJ-82151-00-00 |
from US $3.38 |
||
|
22
|
22
5JJ-82151-30-00
Fuse (10A-Bl)
10A-BL |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
22
|
22
67F-82151-40-00 Fuse (10A)10A-BL |
67F-82151-40-00 |
from US $1.90 |
||
|
23
|
23
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.74 |
||
|
24
|
24
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
25
|
25
90464-12089-00 Clamp |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
25
|
25
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
26
|
26
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.81 |
||
|
27
|
27
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
28
|
28
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
29
|
29
5VS-8258J-00-00 Housing, Connecteur 1 |
5VS-8258J-00-00 |
from US $1.70 |
||
|
30
|
30
5VS-8259J-00-00 Housing, Connecteur 2 |
5VS-8259J-00-00 |
US $1.70 |
||
