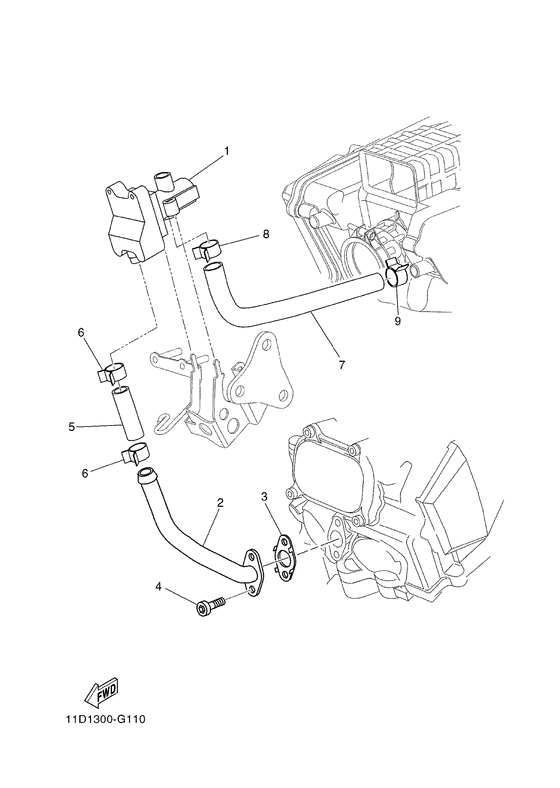

Air induction system Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D1
- Sales region
- Portugal (030)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5VK-14803-00-00 Air Induction System Assy |
5VK-14803-00-00 |
from US $225.20 |
||
|
02
|
02
5VK-14871-02-00 Pipe 1 |
5VK-14871-02-00 |
US $31.74 |
||
|
03
|
03
5VK-14815-00-00 Gasket |
5VK-14815-00-00 |
US $2.27 |
||
|
04
|
04
91380-06016-00 Bolt |
91380-06016-00 |
from US $1.42 |
||
|
05
|
05
11D-E4881-00-00
Hose, Bend 1
|
11D-E4881-00-00 |
— | ||
|
06
|
06
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
07
|
07
11D-E4882-00-00
Hose, Bend 2
|
11D-E4882-00-00 |
— | ||
|
08
|
08
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
08
|
08
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
09
|
09
90467-170A0-00 Clip |
90467-170A0-00 |
from US $3.38 |
||
