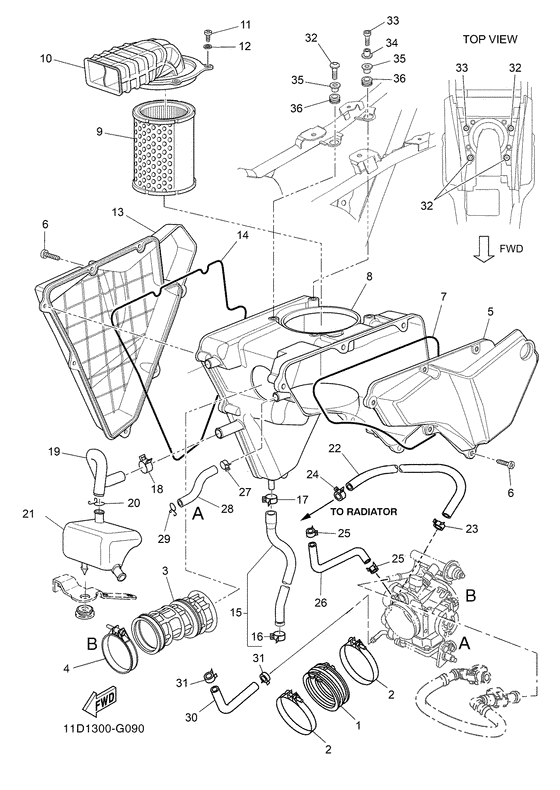

Intake Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D1
- Sales region
- Portugal (030)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5VK-13586-00-00 Joint, Carburetor 1 |
5VK-13586-00-00 |
from US $20.54 |
||
|
02
|
02
90450-72001-00 Hose Clamp Assy |
90450-72001-00 |
US $9.92 |
||
| replacement | |||||
|
02
|
02
90450-72003-00 Hose Clamp Assy |
90450-72003-00 |
from US $8.76 |
||
|
03
|
03
11D-E4453-00-00
Joint, Air Cleaner 1
|
11D-E4453-00-00 |
— | ||
|
04
|
04
90450-59001-00 Hose Clamp Assy |
90450-59001-00 |
from US $9.58 |
||
| replacement | |||||
|
04
|
04
90450-59005-00 Hose Clamp Assy |
90450-59005-00 |
from US $12.61 |
||
|
05
|
05
11D-E441A-00-00
Cover, Cleaner Case 1
|
11D-E441A-00-00 |
— | ||
|
06
|
06
9770M-50030-00 Screw, Tapping |
9770M-50030-00 |
US $1.56 |
||
|
07
|
07
11D-E4452-00-00
Seal
|
11D-E4452-00-00 |
— | ||
|
08
|
08
11D-E4411-00-00
Case, Air Cleaner 1
|
11D-E4411-00-00 |
— | ||
|
09
|
09
11D-E4451-00-00 Element, Air Cleaner |
11D-E4451-00-00 |
US $39.38 |
||
|
10
|
10
11D-E4430-00-00
Duct Assy
|
11D-E4430-00-00 |
— | ||
|
11
|
11
92507-06012-00 Screw, Pan Head |
92507-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
13
|
13
11D-E441E-00-00
Cover, Cleaner Case 2
|
11D-E441E-00-00 |
— | ||
|
14
|
14
11D-E4457-00-00
Seal
|
11D-E4457-00-00 |
— | ||
|
15
|
15
11D-E443E-00-00
Pipe, Drain
|
11D-E443E-00-00 |
— | ||
|
16
|
16
90467-11090-00 Clip |
90467-11090-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
17
|
17
90467-12085-00 Clip |
90467-12085-00 |
from US $4.86 |
||
|
18
|
18
90467-17801-00 Clip |
90467-17801-00 |
US $1.28 |
||
|
19
|
19
11D-E1167-00-00 Pipe, Breather 2 |
11D-E1167-00-00 |
US $33.44 |
||
|
20
|
20
90467-14800-00 Clip |
90467-14800-00 |
US $1.84 |
||
|
21
|
21
11D-E5371-00-00
Breather
|
11D-E5371-00-00 |
— | ||
|
22
|
22
5YK-E244G-00-00
Hose, 4
|
5YK-E244G-00-00 |
— | ||
|
23
|
23
90467-11108-00 Clip, Scissor |
90467-11108-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
24
|
24
90467-11090-00 Clip |
90467-11090-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
25
|
25
90467-07138-00 Clip |
90467-07138-00 |
from US $1.04 |
||
|
26
|
26
11D-E3542-00-00
Hose, Vacuum Sensing 1
|
11D-E3542-00-00 |
— | ||
|
27
|
27
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
28
|
28
11D-E3545-00-00
Hose 1
|
11D-E3545-00-00 |
— | ||
|
29
|
29
90467-170A2-00 Clip |
90467-170A2-00 |
from US $1.84 |
||
|
30
|
30
5YK-E243A-00-00
Hose 1
|
5YK-E243A-00-00 |
— | ||
|
31
|
31
90467-11108-00 Clip, Scissor |
90467-11108-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
32
|
32
90111-06051-00 Bolt, Hex. Socket Button |
90111-06051-00 |
from US $1.81 |
||
|
33
|
33
9131L-06035-00
Bolt
|
9131L-06035-00 |
— | ||
|
34
|
34
90387-068P7-00
Collar
|
90387-068P7-00 |
— | ||
|
35
|
35
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
36
|
36
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
