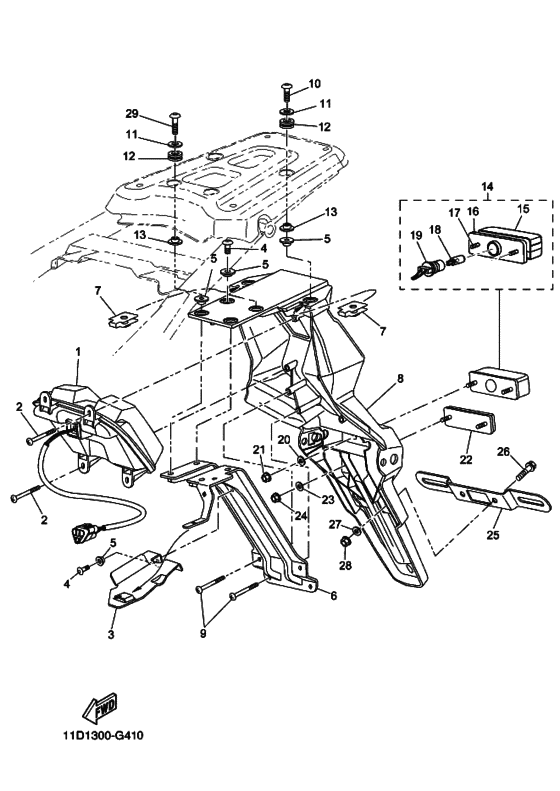

Taillight Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11D-H4710-00-00
Taillight Unit Assy
|
11D-H4710-00-00 |
— | ||
|
2
|
2
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
3
|
3
11D-H2589-01-00
Protecter, Wire Harness
|
11D-H2589-01-00 |
— | ||
|
4
|
4
9201L-06014-00
Bolt, Button Head
|
9201L-06014-00 |
— | ||
|
5
|
5
90387-06X41-00
Collar
|
90387-06X41-00 |
— | ||
|
6
|
6
11D-F1670-01-00
Reinf. Comp
|
11D-F1670-01-00 |
— | ||
|
7
|
7
47X-21736-01-00 Nut,plate |
47X-21736-01-00 |
from US $6.32 |
||
|
8
|
8
11D-F1685-00-00
Bracket, License
|
11D-F1685-00-00 |
— | ||
|
9
|
9
97707-40020-00 Screw, Tapping |
97707-40020-00 |
from US $0.70 |
||
|
10
|
10
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.81 |
||
|
11
|
11
90201-06X14-00
Washer, Plate
|
90201-06X14-00 |
— | ||
|
12
|
12
90480-11006-00 Grommet |
90480-11006-00 |
from US $2.41 |
||
|
13
|
13
90387-06X42-00
Collar
|
90387-06X42-00 |
— | ||
|
14
|
14
11D-H4745-00-00
Licence Light Unit Assy
|
11D-H4745-00-00 |
— | ||
| replacement | |||||
|
14
|
14
11D-H4745-01-00
Licence Light Unit Assy
|
11D-H4745-01-00 |
— | ||
|
15
|
15
5YK-H4749-00-00 Body, Licence Light |
5YK-H4749-00-00 |
US $25.36 |
||
|
16
|
16
5YK-H4741-00-00 Base, Licence Light |
5YK-H4741-00-00 |
US $14.73 |
||
|
17
|
17
9770L-30110-00 Screw, Tapping |
9770L-30110-00 |
US $1.56 |
||
|
19
|
19
11D-H4547-00-00
Cord, Licence Light
|
11D-H4547-00-00 |
— | ||
| replacement | |||||
|
19
|
19
11D-H4547-01-00
Cord, Licence Light
|
11D-H4547-01-00 |
— | ||
|
20
|
20
9290L-05200-00
Washer
|
9290L-05200-00 |
— | ||
|
21
|
21
9570L-05300-00
Nut, Flange
|
9570L-05300-00 |
— | ||
|
22
|
22
5YK-H5130-00-00 Rear Reflector Assy |
5YK-H5130-00-00 |
US $20.12 |
||
|
23
|
23
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
24
|
24
9570L-04300-00
Nut, Flange
|
9570L-04300-00 |
— | ||
|
25
|
25
3SH-H4551-00-00
Bracket, Licence
|
3SH-H4551-00-00 |
— | ||
|
26
|
26
9581M-06016-00 Bolt, Flange |
9581M-06016-00 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
27
|
27
90201-06X14-00
Washer, Plate
|
90201-06X14-00 |
— | ||
|
28
|
28
9571L-06300-00
Nut, Flange
|
9571L-06300-00 |
— | ||
|
29
|
29
9201L-06025-00
Bolt, Button Head
|
9201L-06025-00 |
— | ||
