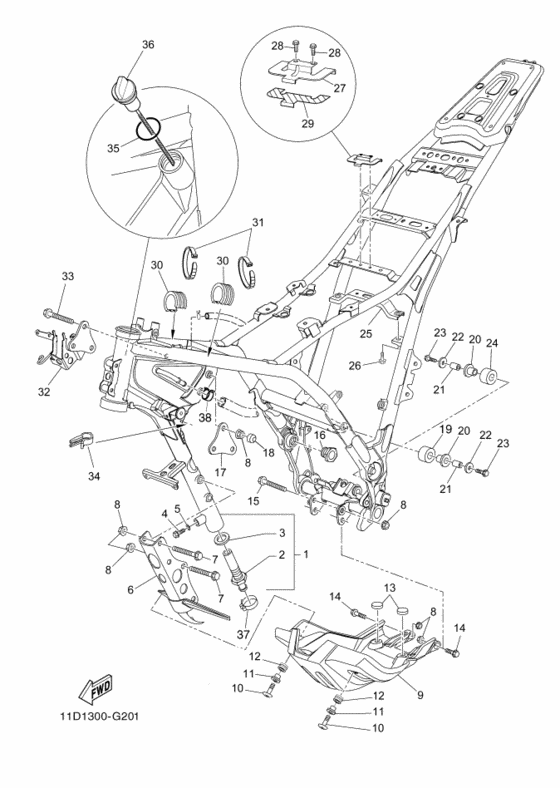

Frame Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11D-F1110-00-98
Frame Comp
LGB FOR BMC,SMX |
11D-F1110-00-98 |
— | ||
| replacement | |||||
|
1
|
1
11D-F1110-10-98
Frame Comp
LGB FOR BMC,SMX |
11D-F1110-10-98 |
— | ||
|
2
|
2
5VK-F1756-00-00 Net, Filter |
5VK-F1756-00-00 |
US $56.09 |
||
|
3
|
3
90430-22123-00 Gasket |
90430-22123-00 |
from US $4.53 |
||
|
4
|
4
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.18 |
||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.39 |
||
|
6
|
6
11D-F1400-00-00
Engine Bracket Comp
|
11D-F1400-00-00 |
— | ||
|
7
|
7
95817-10070-00 Bolt, Flange(7Lu) |
95817-10070-00 |
from US $2.69 |
||
|
8
|
8
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
9
|
9
11D-F1471-00-00
Protector, Engine
|
11D-F1471-00-00 |
— | ||
|
10
|
10
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $3.60 |
||
|
11
|
11
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
11
|
11
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.66 |
||
|
12
|
12
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.94 |
||
|
13
|
13
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
14
|
14
958-17100-35-00 Bolt, Flange |
958-17100-35-00 |
from US $1.66 |
||
| replacements | |||||
|
14
|
14
90105-10115-00 Bolt, Flange |
90105-10115-00 |
from US $7.21 |
||
|
14
|
14
90105-10289-00 Bolt, Washer Based |
90105-10289-00 |
US $7.21 |
||
|
15
|
15
90105-10733-00 Bolt, Flange |
90105-10733-00 |
from US $3.04 |
||
|
16
|
16
11D-F1494-00-00 Nut |
11D-F1494-00-00 |
from US $21.83 |
||
|
17
|
17
11D-F1315-00-00
Stay, Engine 2
|
11D-F1315-00-00 |
— | ||
|
18
|
18
5YK-F1399-00-00
Cap
|
5YK-F1399-00-00 |
— | ||
|
19
|
19
10V-22178-00-00 Tensioner |
10V-22178-00-00 |
from US $9.29 |
||
|
20
|
20
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
21
|
21
90387-08024-00 Collar |
90387-08024-00 |
from US $3.83 |
||
|
22
|
22
90201-082H0-00 Washer, Plate |
90201-082H0-00 |
from US $0.61 |
||
|
23
|
23
95827-08040-00 Bolt, Flange |
95827-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
24
|
24
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
25
|
25
11D-F1344-00-00
Bracket, Battery Box
|
11D-F1344-00-00 |
— | ||
|
26
|
26
9581M-06012-00
Bolt, Flange
|
9581M-06012-00 |
— | ||
|
27
|
27
11D-F118W-10-00
Stopper
|
11D-F118W-10-00 |
— | ||
|
28
|
28
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
28
|
28
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
29
|
29
11D-F177M-00-00
Damper, Locating 3
|
11D-F177M-00-00 |
— | ||
|
30
|
30
11D-F4183-00-00
Damper, Locating 3
|
11D-F4183-00-00 |
— | ||
|
31
|
31
2AJ-F3192-50-00
Band
|
2AJ-F3192-50-00 |
— | ||
| replacement | |||||
|
31
|
31
90464-90X00-00
Clamp
|
90464-90X00-00 |
— | ||
|
32
|
32
11D-F1410-00-00
Engine Bracket Comp
|
11D-F1410-00-00 |
— | ||
|
33
|
33
90105-10212-00 Bolt, Flange |
90105-10212-00 |
from US $7.21 |
||
|
34
|
34
90464-10X03-00
Clamp
|
90464-10X03-00 |
— | ||
|
35
|
35
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
36
|
36
11D-F1761-00-00
Gauge, Level
|
11D-F1761-00-00 |
— | ||
|
37
|
37
90450-20X01-00
Hose Clamp Assy
|
90450-20X01-00 |
— | ||
|
38
|
38
90467-17800-00
Clip
|
90467-17800-00 |
— | ||
