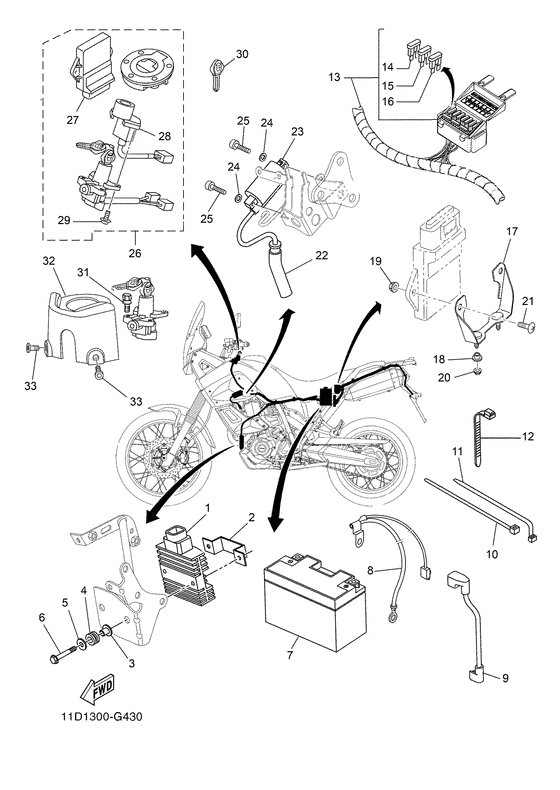

Electrical 1 Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Belgium (020)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XY-81960-00-00 Rectifier & Regulator Assy |
4XY-81960-00-00 |
from US $153.07 |
||
|
02
|
02
11D-F1287-00-00
Bracket, Regulator
|
11D-F1287-00-00 |
— | ||
|
03
|
03
90387-06042-00 Collar |
90387-06042-00 |
from US $5.67 |
||
|
04
|
04
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
05
|
05
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
06
|
06
95807-06040-00 Bolt, Flange |
95807-06040-00 |
from US $1.21 |
||
| replacement | |||||
|
06
|
06
95817-06040-00 Bolt, Flange |
95817-06040-00 |
from US $1.21 |
||
|
07
|
07
5FL-82100-01-00
Gt9B4 Gs Battery -
|
5FL-82100-01-00 |
— | ||
| replacements | |||||
|
07
|
07
GT9-B4000-00-00 LENS, TAILLIGHT |
GT9-B4000-00-00 |
US $135.88 |
||
|
07
|
07
YT9-BBS00-00-00 Battery Assy (Gs Gt9B-4) |
YT9-BBS00-00-00 |
US $182.90 |
||
|
08
|
08
11D-H2116-00-00
Wire, Minus Lead
|
11D-H2116-00-00 |
— | ||
|
09
|
09
5YK-82115-00-00
Wire, Plus Lead
|
5YK-82115-00-00 |
— | ||
|
10
|
10
4GV-H3936-00-00
Band, Switch Cord
|
4GV-H3936-00-00 |
— | ||
|
11
|
11
2AJ-F3192-50-00
Band
|
2AJ-F3192-50-00 |
— | ||
| replacement | |||||
|
11
|
11
90464-90X00-00
Clamp
|
90464-90X00-00 |
— | ||
|
12
|
12
90464-25004-00 Clamp |
90464-25004-00 |
from US $1.98 |
||
|
13
|
13
11D-H2590-00-00
Wire Harness Assy
|
11D-H2590-00-00 |
— | ||
| replacement | |||||
|
13
|
13
11D-H2590-01-00
Wire Harness Assy
|
11D-H2590-01-00 |
— | ||
|
14
|
14
5JJ-82151-00-00 Fuse (7.5A-Bl) |
5JJ-82151-00-00 |
from US $3.38 |
||
|
15
|
15
5JJ-82151-30-00
Fuse (10A-Bl)
|
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
15
|
15
67F-82151-40-00 Fuse (10A) |
67F-82151-40-00 |
from US $1.90 |
||
|
16
|
16
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.74 |
||
|
17
|
17
11D-H5991-00-00
Bracket, Unit
|
11D-H5991-00-00 |
— | ||
|
18
|
18
90387-06202-00 Collar |
90387-06202-00 |
from US $6.23 |
||
|
19
|
19
9570L-06500-00 Nut, Flange |
9570L-06500-00 |
from US $1.13 |
||
| replacement | |||||
|
19
|
19
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
20
|
20
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
21
|
21
90111-06X19-00 Bolt,hex. Socket Button |
90111-06X19-00 |
US $2.27 |
||
|
22
|
22
5VK-82370-00-00 Plug Cap Assy |
5VK-82370-00-00 |
from US $35.90 |
||
|
23
|
23
4GV-82310-00-00
Ignition Coil Assy
|
4GV-82310-00-00 |
— | ||
| replacements | |||||
|
23
|
23
4DN-82320-00-00
Ignition Coil Assy
|
4DN-82320-00-00 |
— | ||
|
23
|
23
4DN-82320-01-00 IGNITION COIL ASSY |
4DN-82320-01-00 |
from US $89.88 |
||
|
24
|
24
9290M-05600-00
Washer
|
9290M-05600-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
9131M-05020-00 Bolt |
9131M-05020-00 |
US $2.54 |
||
|
26
|
26
11D-W8250-10-00 Main Sw. Immobilizer Kit |
11D-W8250-10-00 |
US $1,557.60 |
||
|
27
|
27
11D-8591A-00-00 Engine Control Unit Assy |
11D-8591A-00-00 |
US $588.37 |
||
|
28
|
28
5YK-8255P-00-00 Immobilizer. Unit Comp |
5YK-8255P-00-00 |
US $377.83 |
||
|
29
|
29
5SL-82113-01-00 Screw |
5SL-82113-01-00 |
from US $1.56 |
||
|
30
|
30
5SL-82511-08-00 Blank KeyAp |
5SL-82511-08-00 |
from US $21.88 |
||
|
31
|
31
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
31
|
31
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $2.08 |
||
|
32
|
32
11D-H2568-00-00
Cover, Main Switch
|
11D-H2568-00-00 |
— | ||
|
33
|
33
90111-05011-00 Bolt, Hex. Socket Button |
90111-05011-00 |
from US $2.08 |
||
