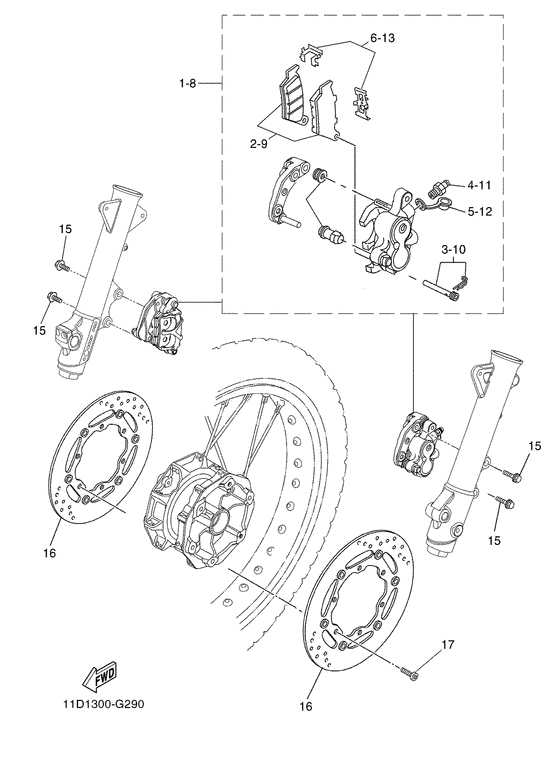

Front brake Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 11D2
- Sales region
- Portugal (030)
- Engine Capacity
- 660
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
11D-F580T-00-00
Caliper Assy (Left)
|
11D-F580T-00-00 |
— | ||
|
02
|
02
11D-F5811-00-00 Pad, Caliper 2 |
11D-F5811-00-00 |
US $100.86 |
||
|
03
|
03
5D7-F5924-00-00
Pin, Pad
|
5D7-F5924-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5D7-F5924-01-00 Pin, Pad |
5D7-F5924-01-00 |
US $28.05 |
||
|
04
|
04
5D7-F5824-10-00 Screw, Bleed(brembo) |
5D7-F5824-10-00 |
US $25.93 |
||
|
05
|
05
5DS-F5825-00-00
Cap
(brembo) |
5DS-F5825-00-00 |
— | ||
|
06
|
06
5DS-F5919-00-00 Support, Pad(brembo) |
5DS-F5919-00-00 |
from US $15.39 |
||
|
07
|
07
5DS-F5917-00-00 Boot, Caliper(brembo) |
5DS-F5917-00-00 |
from US $38.07 |
||
|
08
|
08
11D-F580U-00-00
Caliper Assy (Right)
|
11D-F580U-00-00 |
— | ||
|
09
|
09
11D-F5811-00-00 Pad, Caliper 2 |
11D-F5811-00-00 |
US $100.86 |
||
|
10
|
10
5D7-F5924-00-00
Pin, Pad
|
5D7-F5924-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5D7-F5924-01-00 Pin, Pad |
5D7-F5924-01-00 |
US $28.05 |
||
|
11
|
11
5D7-F5824-10-00 Screw, Bleed(brembo) |
5D7-F5824-10-00 |
US $25.93 |
||
|
12
|
12
5DS-F5825-00-00
Cap
(brembo) |
5DS-F5825-00-00 |
— | ||
|
13
|
13
5DS-F5919-00-00 Support, Pad(brembo) |
5DS-F5919-00-00 |
from US $15.39 |
||
|
14
|
14
5DS-F5917-00-00 Boot, Caliper(brembo) |
5DS-F5917-00-00 |
from US $38.07 |
||
|
15
|
15
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
16
|
16
5VK-F581T-00-00 Disk Brake Assy |
5VK-F581T-00-00 |
US $317.77 |
||
|
17
|
17
90109-064G6-00 Bolt |
90109-064G6-00 |
from US $1.66 |
||
| replacement | |||||
|
17
|
17
901-09062-54-00 Bolt |
901-09062-54-00 |
from US $1.66 |
||
