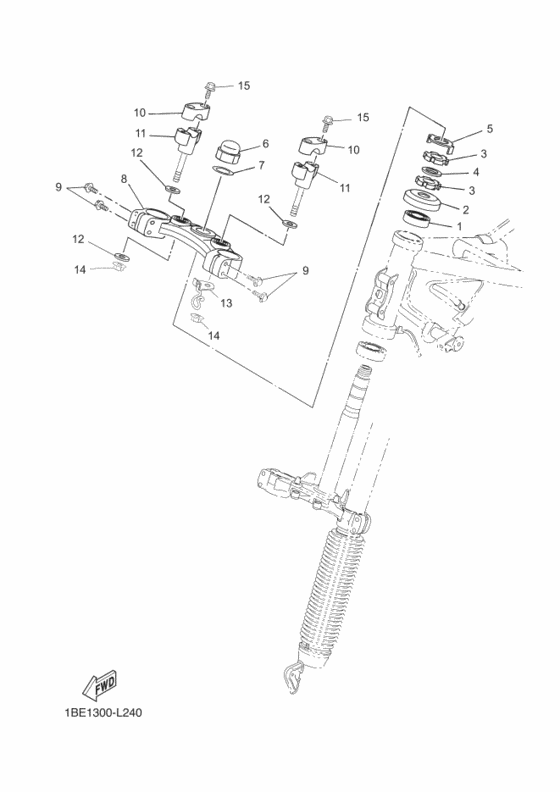

Steering Diagram Yamaha XT660 Tenere
- Year
- 2013
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 2BE2
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- A
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
2
|
2
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
3
|
3
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
3
|
3
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
4
|
4
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
5
|
5
3YF-23418-00-00 Washer, Special |
3YF-23418-00-00 |
from US $7.65 |
||
|
6
|
6
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.74 |
||
|
7
|
7
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
7
|
7
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.86 |
||
|
8
|
8
11D-F3430-00-00
Handle Crown Comp
|
11D-F3430-00-00 |
— | ||
|
9
|
9
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
|
10
|
10
1E6-23441-10-35 Holder, Handle UpperSL FOR DPBMC,MNM3 |
1E6-23441-10-35 |
from US $17.85 |
||
|
11
|
11
3AJ-23442-00-35 Holder, Handle LowerSL FOR DPBMC,MNM3 |
3AJ-23442-00-35 |
US $61.48 |
||
|
12
|
12
902-01101-41-00
Washer, Plate
|
902-01101-41-00 |
— | ||
| replacement | |||||
|
12
|
12
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.70 |
||
|
13
|
13
56P-F331E-00-00
Guide, Cable
|
56P-F331E-00-00 |
— | ||
|
14
|
14
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
15
|
15
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
