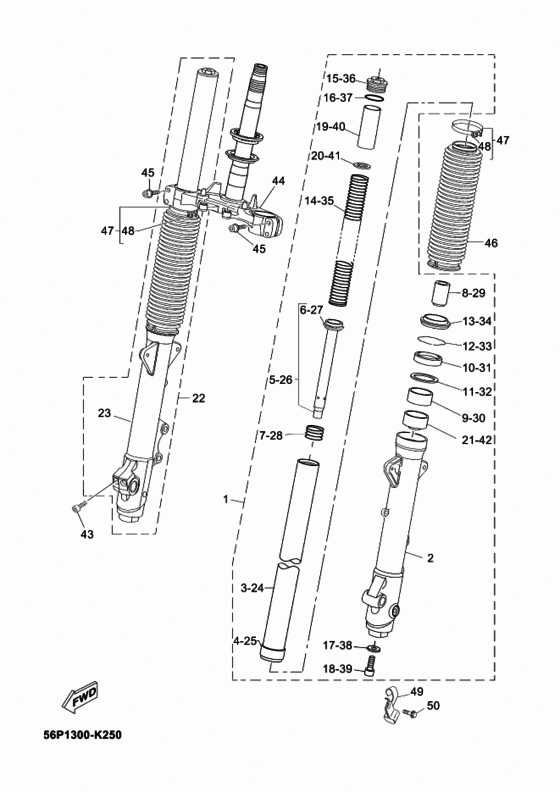

Front fork Diagram Yamaha XT660 XT660Z Tenere
- Year
- 2011
- Colour
- Black Metallic X
- Model code
- 56P1
- Sales region
- Europe (010)
- Engine Capacity
- 660
- Color Variant
- B
- Model
- XT660Z Tenere
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56P-F3102-00-00
Front Fork Assy (L.h)
|
56P-F3102-00-00 |
— | ||
|
2
|
2
56P-F3126-00-00
Tube, Outer (L.h)
|
56P-F3126-00-00 |
— | ||
|
3
|
3
11D-F3110-00-00
Inner Tube Comp.1
|
11D-F3110-00-00 |
— | ||
|
4
|
4
3JX-23171-L0-00
Piston, Front Fork
|
3JX-23171-L0-00 |
— | ||
| replacement | |||||
|
4
|
4
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
5
|
5
56P-F3170-00-00
Cylinder Comp., Front Fork
|
56P-F3170-00-00 |
— | ||
|
6
|
6
5VK-F3157-00-00
Ring, Piston
|
5VK-F3157-00-00 |
— | ||
|
7
|
7
5VK-F3151-00-00
Spring, Rebound
|
5VK-F3151-00-00 |
— | ||
|
8
|
8
5VK-F3173-00-00
Spindle, Taper
(PAIOLI) |
5VK-F3173-00-00 |
— | ||
|
9
|
9
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
9
|
9
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
10
|
10
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
10
|
10
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
10
|
10
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
11
|
11
11D-F3146-00-00
Washer, Oil Seal
|
11D-F3146-00-00 |
— | ||
|
12
|
12
5VK-F3153-00-00
Ring, Snap
(PAIOLI) |
5VK-F3153-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4V4-23153-L0-00 Ring, Snap(PAIOLI) |
4V4-23153-L0-00 |
from US $4.50 |
||
|
13
|
13
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
13
|
13
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
14
|
14
56P-F3141-00-00
Spring, Front Fork
|
56P-F3141-00-00 |
— | ||
|
15
|
15
5VK-F3111-00-00
Bolt, Cap
(PAIOLI) |
5VK-F3111-00-00 |
— | ||
|
16
|
16
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
17
|
17
5JH-F3158-00-00 Gasket(PAIOLI) |
5JH-F3158-00-00 |
US $12.47 |
||
|
18
|
18
56P-F3181-00-00
Bolt, Hexagon Socket Head
|
56P-F3181-00-00 |
— | ||
|
19
|
19
56P-F3118-00-00
Spacer
|
56P-F3118-00-00 |
— | ||
|
20
|
20
5VK-F3149-00-00
Washer, Spring Upper
(PAIOLI) |
5VK-F3149-00-00 |
— | ||
|
21
|
21
56P-F3165-00-00
Washer, Felt
|
56P-F3165-00-00 |
— | ||
|
22
|
22
56P-F3103-00-00
Front Fork Assy (R.h)
|
56P-F3103-00-00 |
— | ||
|
23
|
23
56P-F3136-00-00
Tube, Outer (R.h)
|
56P-F3136-00-00 |
— | ||
|
24
|
24
11D-F3110-00-00
Inner Tube Comp.1
|
11D-F3110-00-00 |
— | ||
|
25
|
25
3JX-23171-L0-00
Piston, Front Fork
|
3JX-23171-L0-00 |
— | ||
| replacement | |||||
|
25
|
25
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $15.50 |
||
|
26
|
26
56P-F3170-00-00
Cylinder Comp., Front Fork
|
56P-F3170-00-00 |
— | ||
|
27
|
27
5VK-F3157-00-00
Ring, Piston
|
5VK-F3157-00-00 |
— | ||
|
28
|
28
5VK-F3151-00-00
Spring, Rebound
|
5VK-F3151-00-00 |
— | ||
|
29
|
29
5VK-F3173-00-00
Spindle, Taper
(PAIOLI) |
5VK-F3173-00-00 |
— | ||
|
30
|
30
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
31
|
31
4DA-23145-L0-00
Oil Seal
|
4DA-23145-L0-00 |
— | ||
| replacements | |||||
|
31
|
31
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
31
|
31
4PU-23145-01-00 Oil Seal |
4PU-23145-01-00 |
from US $12.46 |
||
|
32
|
32
11D-F3146-00-00
Washer, Oil Seal
|
11D-F3146-00-00 |
— | ||
|
33
|
33
5VK-F3153-00-00
Ring, Snap
(PAIOLI) |
5VK-F3153-00-00 |
— | ||
| replacement | |||||
|
33
|
33
4V4-23153-L0-00 Ring, Snap(PAIOLI) |
4V4-23153-L0-00 |
from US $4.50 |
||
|
34
|
34
4DA-23144-L0-00 Seal, Dust |
4DA-23144-L0-00 |
from US $17.61 |
||
| replacement | |||||
|
34
|
34
4PU-23144-00-00 Seal, Dust |
4PU-23144-00-00 |
from US $11.12 |
||
|
35
|
35
56P-F3141-00-00
Spring, Front Fork
|
56P-F3141-00-00 |
— | ||
|
36
|
36
5VK-F3111-00-00
Bolt, Cap
(PAIOLI) |
5VK-F3111-00-00 |
— | ||
|
37
|
37
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
38
|
38
5JH-F3158-00-00 Gasket(PAIOLI) |
5JH-F3158-00-00 |
US $12.47 |
||
|
39
|
39
56P-F3181-00-00
Bolt, Hexagon Socket Head
|
56P-F3181-00-00 |
— | ||
|
40
|
40
56P-F3118-00-00
Spacer
|
56P-F3118-00-00 |
— | ||
|
41
|
41
5VK-F3149-00-00
Washer, Spring Upper
(PAIOLI) |
5VK-F3149-00-00 |
— | ||
|
42
|
42
56P-F3165-00-00
Washer, Felt
|
56P-F3165-00-00 |
— | ||
|
43
|
43
5VK-F3128-00-00
Bolt, Axle Holder
|
5VK-F3128-00-00 |
— | ||
|
44
|
44
5VK-F3340-00-00 Under Bracket Comp |
5VK-F3340-00-00 |
US $1,309.44 |
||
|
45
|
45
5SE-F3394-00-00
Bolt, Special
|
5SE-F3394-00-00 |
— | ||
|
46
|
46
11D-F3191-00-00
Boot
|
11D-F3191-00-00 |
— | ||
|
47
|
47
11D-F3192-00-00
Band
|
11D-F3192-00-00 |
— | ||
|
48
|
48
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
49
|
49
56P-F3317-00-00
Holder, Cable
|
56P-F3317-00-00 |
— | ||
|
50
|
50
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
