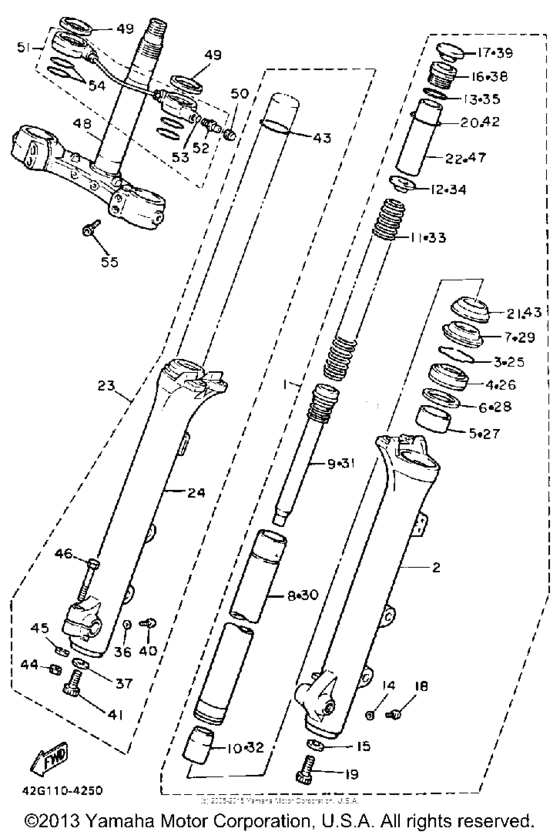

Front fork Diagram Yamaha XV1000 Virago
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- XV1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42H-23102-01-00
Front Fork Assembly L (Lh) (N/n
|
42H-23102-01-00 |
— | ||
|
2
|
2
42H-23126-01-00
Tube, Outer (Left)
|
42H-23126-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3JK-23126-10-00
Tube, Outer (Left)
|
3JK-23126-10-00 |
— | ||
|
3
|
3
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
4
|
4
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $13.14 |
||
|
5
|
5
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $31.08 |
||
|
6
|
6
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $19.84 |
||
|
7
|
7
42H-23144-01-00
Seal, Dust
|
42H-23144-01-00 |
— | ||
|
8
|
8
1TA-23110-00-00 Inner Tube Comp.1 |
1TA-23110-00-00 |
from US $307.37 |
||
|
9
|
9
33M-23170-00-00 Cylinder Comp |
33M-23170-00-00 |
US $210.78 |
||
|
10
|
10
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
11
|
11
42H-23141-00-00 Spring, Front Fork |
42H-23141-00-00 |
US $96.77 |
||
|
12
|
12
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
13
|
13
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
14
|
14
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
15
|
15
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
16
|
16
31A-23111-31-00 Bolt, Cap |
31A-23111-31-00 |
US $59.54 |
||
|
17
|
17
42H-23168-00-00 Cap, Front Fork |
42H-23168-00-00 |
from US $11.39 |
||
|
18
|
18
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
19
|
19
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
20
|
20
42H-23153-00-00
Ring, Snap
|
42H-23153-00-00 |
— | ||
|
21
|
21
42H-23148-00-00 Seal, Dust |
42H-23148-00-00 |
from US $17.78 |
||
| replacement | |||||
|
21
|
21
42H-23144-01-00
Seal, Dust
|
42H-23144-01-00 |
— | ||
|
22
|
22
42H-23118-00-00
Spacer
|
42H-23118-00-00 |
— | ||
|
23
|
23
42H-23103-01-00
Front Fork Assembly R (R.h) (N/
|
42H-23103-01-00 |
— | ||
|
24
|
24
42H-23136-01-00
Tube, Outer (Right)
|
42H-23136-01-00 |
— | ||
| replacement | |||||
|
24
|
24
3JK-23136-10-00
Tube, Outer (Right)
|
3JK-23136-10-00 |
— | ||
|
25
|
25
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
26
|
26
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $13.14 |
||
|
27
|
27
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $31.08 |
||
|
28
|
28
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $19.84 |
||
|
29
|
29
42H-23144-01-00
Seal, Dust
|
42H-23144-01-00 |
— | ||
|
30
|
30
1TA-23110-00-00 Inner Tube Comp.1 |
1TA-23110-00-00 |
from US $307.37 |
||
|
31
|
31
33M-23170-00-00 Cylinder Comp |
33M-23170-00-00 |
US $210.78 |
||
|
32
|
32
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
33
|
33
42H-23141-00-00 Spring, Front Fork |
42H-23141-00-00 |
US $96.77 |
||
|
34
|
34
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
35
|
35
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
36
|
36
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
37
|
37
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
38
|
38
31A-23111-31-00 Bolt, Cap |
31A-23111-31-00 |
US $59.54 |
||
|
39
|
39
42H-23168-00-00 Cap, Front Fork |
42H-23168-00-00 |
from US $11.39 |
||
|
40
|
40
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
40
|
40
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
40
|
40
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
41
|
41
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
41
|
41
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
42
|
42
42H-23153-00-00
Ring, Snap
|
42H-23153-00-00 |
— | ||
|
43
|
43
42H-23148-00-00 Seal, Dust |
42H-23148-00-00 |
from US $17.78 |
||
| replacement | |||||
|
43
|
43
42H-23144-01-00
Seal, Dust
|
42H-23144-01-00 |
— | ||
|
44
|
44
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
44
|
44
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
45
|
45
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
46
|
46
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
47
|
47
42H-23118-00-00
Spacer
|
42H-23118-00-00 |
— | ||
|
48
|
48
2AE-23340-30-00
Under Bracket Comp
|
2AE-23340-30-00 |
— | ||
|
49
|
49
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
50
|
50
10M-23184-01-00
Cap, Air Valve
|
10M-23184-01-00 |
— | ||
|
51
|
51
42H-2318J-00-00
Hose Assembly
|
42H-2318J-00-00 |
— | ||
|
52
|
52
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
53
|
53
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
54
|
54
42H-23188-00-00 O-Ring |
42H-23188-00-00 |
from US $5.67 |
||
|
55
|
55
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
55
|
55
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
