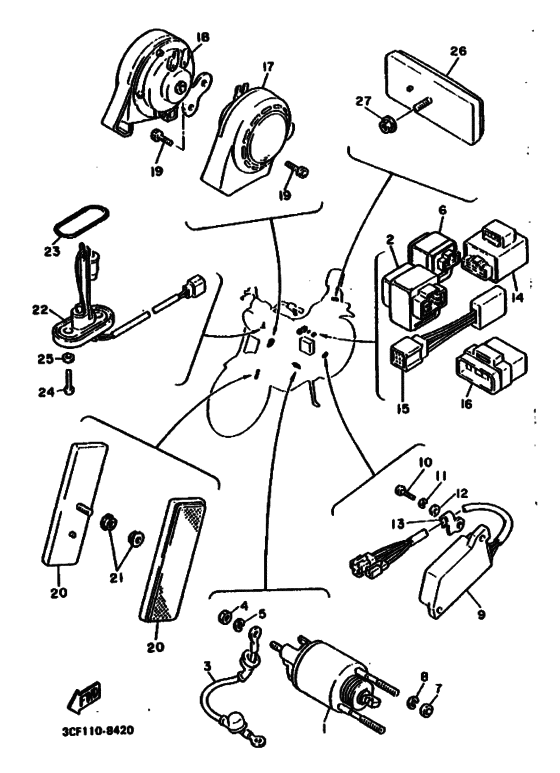

Electrical 2 Diagram Yamaha XV1100 Virago
- Year
- 1988
- Colour
- Miyabi Maroon (MYM; 00JY)
- Model code
- 3CH0
- Sales region
- Europe (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5A8-86110-50-00 Solenoid |
5A8-86110-50-00 |
from US $279.94 |
||
|
2
|
2
1NL-81950-00-00 Relay Assy |
1NL-81950-00-00 |
from US $34.43 |
||
| replacements | |||||
|
2
|
2
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
|
2
|
2
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $33.05 |
||
|
3
|
3
5A8-81815-00-00 Cord, Starter Motor |
5A8-81815-00-00 |
US $50.92 |
||
| replacement | |||||
|
3
|
3
3JK-81815-00-00 Cord, Starter Motor |
3JK-81815-00-00 |
US $50.92 |
||
|
4
|
4
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
4
|
4
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
4
|
4
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
5
|
5
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
4U8-81950-01-00 Relay AssyFOR SIDE STAND |
4U8-81950-01-00 |
from US $83.86 |
||
| replacements | |||||
|
6
|
6
4U8-81950-02-00 Relay Assy (4U8-02)FOR SIDE STAND |
4U8-81950-02-00 |
from US $83.86 |
||
|
6
|
6
4U8-81950-03-00 Relay AssyFOR SIDE STAND |
4U8-81950-03-00 |
from US $93.93 |
||
|
7
|
7
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
8
|
8
92902-08100-00 Washer, Spring |
92902-08100-00 |
from US $0.85 |
||
| replacement | |||||
|
8
|
8
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
9
|
9
42X-81960-A0-00
Rectifier & Regulator Assy
|
42X-81960-A0-00 |
— | ||
| replacement | |||||
|
9
|
9
42X-81960-A1-00 Rectifier & Regulator Assembly |
42X-81960-A1-00 |
from US $357.83 |
||
|
10
|
10
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
11
|
11
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
90465-10264-00
Clamp
|
90465-10264-00 |
— | ||
|
14
|
14
42H-85740-00-00 RELAY Main Primary Fuel PumpFOR FUEL PUMP |
42H-85740-00-00 |
from US $193.42 |
||
|
15
|
15
4U8-81980-M0-00 Diode AssyFOR SIDE STAND SAFTY DEVISE |
4U8-81980-M0-00 |
from US $57.89 |
||
|
16
|
16
41R-83350-71-00 Flasher Relay Assy |
41R-83350-71-00 |
from US $147.83 |
||
| replacement | |||||
|
16
|
16
41R-83350-72-00 Flasher Relay Assy |
41R-83350-72-00 |
from US $147.83 |
||
|
17
|
17
1RM-83371-00-00 Horn |
1RM-83371-00-00 |
US $160.27 |
||
|
18
|
18
1RM-83371-10-00 Horn |
1RM-83371-10-00 |
from US $109.94 |
||
| replacement | |||||
|
18
|
18
4NK-83371-00-00 Horn |
4NK-83371-00-00 |
from US $116.33 |
||
|
19
|
19
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
20
|
20
42X-85110-00-00
Reflector Assembly
|
42X-85110-00-00 |
— | ||
|
21
|
21
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
22
|
22
42H-85752-01-00
Sender Unit Assembly, Fuel Mete
|
42H-85752-01-00 |
— | ||
|
23
|
23
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.38 |
||
|
24
|
24
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
25
|
25
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
25
|
25
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
26
|
26
42X-85130-01-00 Rear Reflector Assembly (42X-85 |
42X-85130-01-00 |
from US $24.82 |
||
| replacement | |||||
|
26
|
26
2EN-85130-00-00
Rear Reflector Assembly (42X-85
|
2EN-85130-00-00 |
— | ||
|
27
|
27
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
