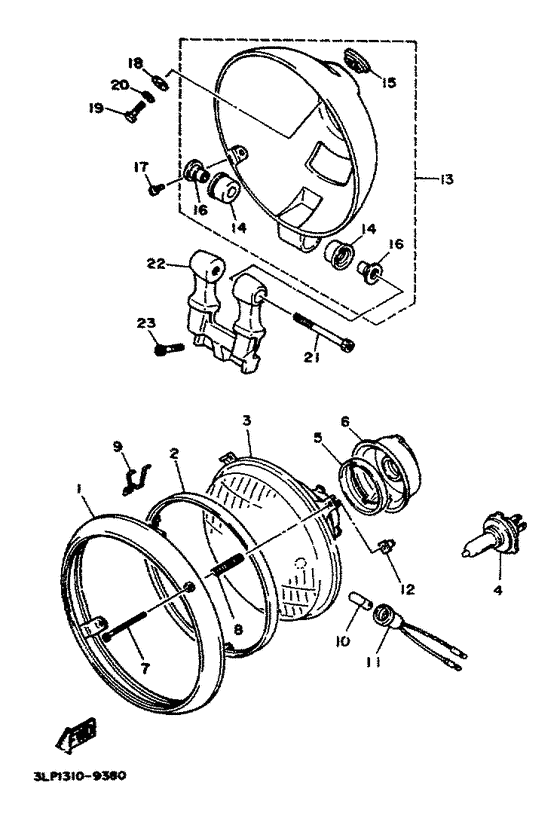

Headlight Diagram Yamaha XV1100 Virago
- Year
- 1989
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 3LP1
- Sales region
- General (999)
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
42X-84315-01-00 Rim, Headlight |
42X-84315-01-00 |
from US $69.49 |
||
|
02
|
02
5Y3-84395-00-00 Ring, Retaining |
5Y3-84395-00-00 |
from US $38.13 |
||
|
03
|
03
55R-84321-H0-00 Lens Assy |
55R-84321-H0-00 |
US $143.69 |
||
|
05
|
05
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
06
|
06
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
07
|
07
20X-84331-00-00 Screw, Rim Adjusting |
20X-84331-00-00 |
from US $4.43 |
||
| replacement | |||||
|
07
|
07
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
08
|
08
1A0-84332-60-00 Spring, Screw |
1A0-84332-60-00 |
from US $10.81 |
||
| replacement | |||||
|
08
|
08
447-84332-60-00 Spring, Screw |
447-84332-60-00 |
from US $10.75 |
||
|
09
|
09
42X-84124-60-00 Spring, Set |
42X-84124-60-00 |
from US $3.05 |
||
|
11
|
11
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
11
|
11
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
12
|
12
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
13
|
13
42X-84330-01-00 Body Assy |
42X-84330-01-00 |
from US $147.83 |
||
|
14
|
14
42X-84345-00-00 Damper, Headlight |
42X-84345-00-00 |
from US $3.68 |
||
|
15
|
15
42X-84366-00-00 Damper, Headlight 1 |
42X-84366-00-00 |
from US $8.78 |
||
|
16
|
16
42X-84338-00-00
Collar Body Fitting
|
42X-84338-00-00 |
— | ||
|
17
|
17
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
18
|
18
90201-061H3-00 Washer, Plate |
90201-061H3-00 |
from US $1.98 |
||
| replacement | |||||
|
18
|
18
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
19
|
19
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
20
|
20
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
91311-08055-00 Bolt, Socket Head |
91311-08055-00 |
from US $4.68 |
||
| replacement | |||||
|
21
|
21
91317-08055-00 Bolt |
91317-08055-00 |
from US $3.94 |
||
|
22
|
22
42X-84318-00-00
Stay,headlight 1
|
42X-84318-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99030-57-00
Stay, Headlight 1
|
999-99030-57-00 |
— | ||
|
23
|
23
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
