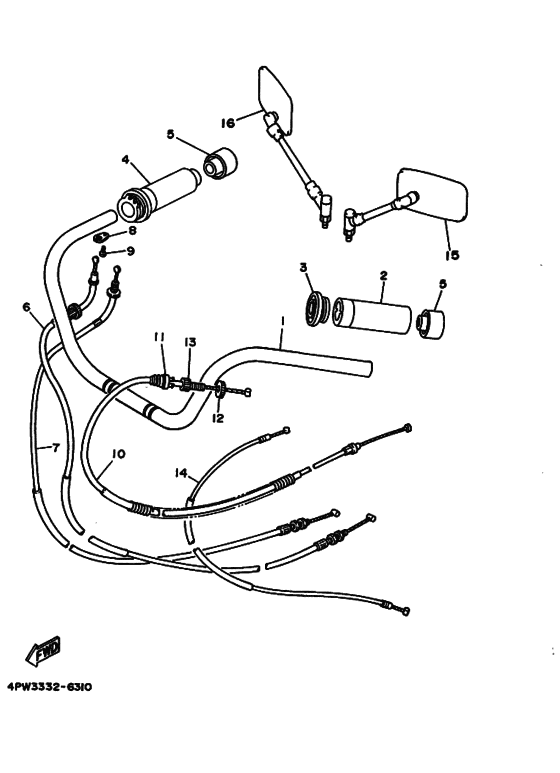

Steering handle & cable Diagram Yamaha XV1100 Virago
- Year
- 1996
- Colour
- Urushi Black (URB; 00JW)
- Model code
- 3LPB
- Sales region
- Europe (020)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30F-W2611-10-00
Handlebar
|
30F-W2611-10-00 |
— | ||
|
2
|
2
3JB-26241-00-00 Grip |
3JB-26241-00-00 |
from US $29.89 |
||
|
3
|
3
3JB-26273-00-00 Rotor |
3JB-26273-00-00 |
from US $11.05 |
||
|
4
|
4
3JB-26240-00-00 Grip Assy |
3JB-26240-00-00 |
from US $35.78 |
||
|
5
|
5
3JB-2628J-00-00 Cap, Grip |
3JB-2628J-00-00 |
from US $3.72 |
||
|
6
|
6
3CF-26311-00-00 Cable, Throttle 1 |
3CF-26311-00-00 |
from US $41.72 |
||
|
7
|
7
3CF-26312-00-00 Cable, Throttle 2 |
3CF-26312-00-00 |
from US $38.55 |
||
|
8
|
8
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
9
|
9
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
10
|
10
57A-26335-00-00 Cable, clutch |
57A-26335-00-00 |
from US $48.22 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
12
|
12
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
12
|
12
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
13
|
13
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
13
|
13
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
14
|
14
3CF-26331-01-00 Cable, Starter 1 |
3CF-26331-01-00 |
from US $22.95 |
||
|
15
|
15
4H7-26290-A1-00 Rear View Mirror Assy(Right)Rear view mirror assy (left) |
4H7-26290-A1-00 |
US $59.82 |
||
| replacement | |||||
|
15
|
15
4H7-26290-F0-00 Rear View Mirror Assy (Left) |
4H7-26290-F0-00 |
US $59.82 |
||
|
16
|
16
4H7-26290-E1-00 Rear View Mirror Assy(Right) |
4H7-26290-E1-00 |
US $59.82 |
||
| replacement | |||||
|
16
|
16
4H7-26290-G0-00 Rear View Mirror Assy (Right) |
4H7-26290-G0-00 |
US $59.82 |
||
