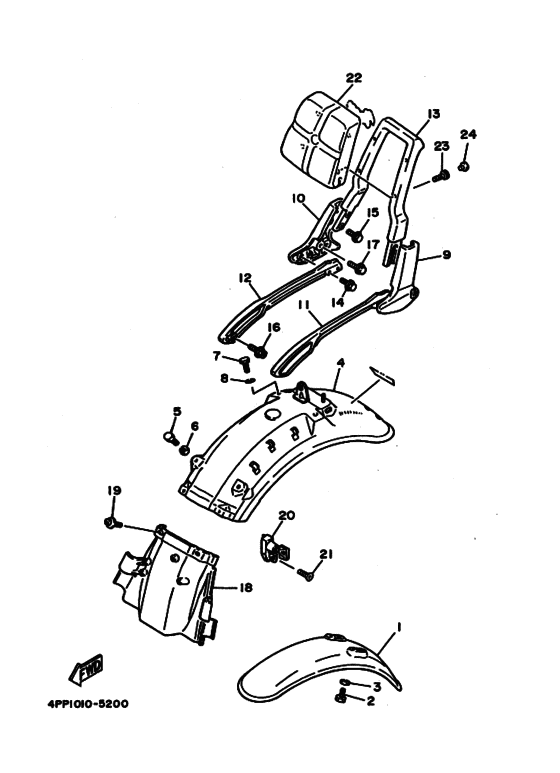

Fender Diagram Yamaha XV1100 Virago
- Year
- 1995
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 4PP1
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1MY-21510-00-P1
Front Fender Comp
フロントフエンダコンプリート; ダルグリーニツシユブルーメタリツク １ |
1MY-21510-00-P1 |
— | ||
|
2
|
2
970-27060-12-00
Bolt, Hexagon
ボルト; |
970-27060-12-00 |
— | ||
| replacement | |||||
|
2
|
2
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.36 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
4
|
4
1RM-21610-01-P1
Rear Fender Comp
リヤフエンダコンプリート; ダルグリーニツシユブルーメタリツク １グラフィック無 |
1RM-21610-01-P1 |
— | ||
|
5
|
5
970-27060-12-00
Bolt, Hexagon
ボルト; |
970-27060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
97017-06012-00 Boltボルト; |
97017-06012-00 |
from US $1.36 |
||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
7
|
7
97027-08012-00 Boltボルト; |
97027-08012-00 |
from US $2.41 |
||
|
8
|
8
92907-08100-00 Washer, Springワツシヤ; |
92907-08100-00 |
from US $0.85 |
||
|
9
|
9
1RM-2164F-00-00 Stay 1ステー １; |
1RM-2164F-00-00 |
US $269.42 |
||
|
10
|
10
1RM-2164G-00-00
Stay 2
ステー ２; |
1RM-2164G-00-00 |
— | ||
|
11
|
11
4PP-2164H-00-00
Stay 3
ステー ３; |
4PP-2164H-00-00 |
— | ||
|
12
|
12
4PP-2164J-00-00
Stay 4
ステー ４; |
4PP-2164J-00-00 |
— | ||
|
13
|
13
42H-2164A-02-00
Grip 1
|
42H-2164A-02-00 |
— | ||
|
14
|
14
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
15
|
15
958-27060-16-00
Bolt, Flange
|
958-27060-16-00 |
— | ||
| replacement | |||||
|
15
|
15
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
16
|
16
90149-08225-00
Screw
|
90149-08225-00 |
— | ||
| replacement | |||||
|
16
|
16
92017-08035-00 Bolt, Button Head |
92017-08035-00 |
from US $4.43 |
||
|
17
|
17
90105-10217-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10217-00 |
from US $6.94 |
||
| replacements | |||||
|
17
|
17
90105-10153-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10153-00 |
from US $6.94 |
||
|
17
|
17
95817-10022-00 Bolt, Flange(4Bd)ボルト，ワツシヤベースドヘツド; |
95817-10022-00 |
from US $4.68 |
||
|
18
|
18
42X-21629-00-00
Guard, Mud
ガード，マツド; |
42X-21629-00-00 |
— | ||
|
19
|
19
90159-06128-00
Screw, With Washer
|
90159-06128-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
26H-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
26H-21308-00-00 |
— | ||
| replacement | |||||
|
20
|
20
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
21
|
21
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
22
|
22
1TA-2840F-00-00 Back Rest Assemblyバツクレストアセンブリ; グラフィック付 |
1TA-2840F-00-00 |
US $205.92 |
||
|
23
|
23
913-17060-35-00
Bolt,socket
ボルト，ソケツトヘツド; |
913-17060-35-00 |
— | ||
| replacements | |||||
|
23
|
23
90110-06X45-00 Bolt, Hexagon Sockボルト，ソケツトヘツド; |
90110-06X45-00 |
US $41.20 |
||
|
23
|
23
901-1006X-79-00 Bolt, Hexagon Socket Headボルト，ソケツトヘツド; |
901-1006X-79-00 |
from US $3.98 |
||
|
24
|
24
90338-06162-00 Plug |
90338-06162-00 |
from US $3.60 |
||
