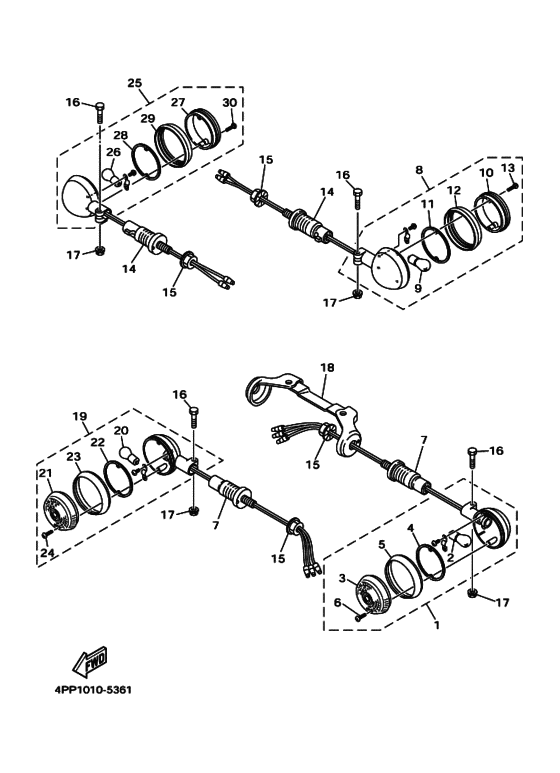

Flasher light Diagram Yamaha XV1100 Virago
- Year
- 1995
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 4PP1
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NT-83310-02-00 Front Flasher Light Assy 1参照; レフト側 （＊１） |
2NT-83310-02-00 |
from US $50.65 |
||
|
2
|
2
1KT-83311-00-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
1KT-83311-00-00 |
from US $7.51 |
||
| replacement | |||||
|
2
|
2
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
306-83311-40-00 |
from US $7.51 |
||
|
3
|
3
42X-83312-10-00 Lens, Flasher．レンズ，フラツシヤ; 参照 |
42X-83312-10-00 |
from US $14.45 |
||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; 参照 |
1D6-83313-00-00 |
from US $3.47 |
||
|
5
|
5
1D6-83363-00-00 Lens, Rim．レンズ，リム; 参照 |
1D6-83363-00-00 |
from US $18.70 |
||
|
6
|
6
57M-83358-00-00 Screw, Special．スクリユ，スペシヤル; 参照 |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-51030-03-00 Screw, Countersunk．スクリユ，スペシヤル; 参照 |
901-51030-03-00 |
from US $2.22 |
||
|
7
|
7
1AA-83318-00-00 Stay,flasher 1ステー，フラツシヤ １; |
1AA-83318-00-00 |
from US $33.72 |
||
|
8
|
8
2NT-83330-01-00 Rear Flasher Light Assy 1参照; レフト側 （＊２） |
2NT-83330-01-00 |
from US $65.63 |
||
| replacements | |||||
|
8
|
8
3DM-83330-01-00 Rear Flasher Light Assy 1参照; レフト側 （＊２） |
3DM-83330-01-00 |
from US $65.63 |
||
|
8
|
8
3DM-83330-02-00 Rear Flasher Light Assy 1参照; レフト側 （＊２） |
3DM-83330-02-00 |
US $77.76 |
||
|
9
|
9
1KT-83311-00-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
1KT-83311-00-00 |
from US $7.51 |
||
| replacement | |||||
|
9
|
9
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
306-83311-40-00 |
from US $7.51 |
||
|
10
|
10
42X-83312-20-00 Lens, Flasher．レンズ，フラツシヤ; 参照 |
42X-83312-20-00 |
from US $14.45 |
||
|
11
|
11
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; 参照 |
1D6-83313-00-00 |
from US $3.47 |
||
|
12
|
12
1D6-83363-10-00 Lens, Rim．レンズ，リム; 参照 |
1D6-83363-10-00 |
from US $18.70 |
||
|
13
|
13
57M-83358-00-00 Screw, Special．スクリユ，スペシヤル; 参照 |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
901-51030-03-00 Screw, Countersunk．スクリユ，スペシヤル; 参照 |
901-51030-03-00 |
from US $2.22 |
||
|
14
|
14
1AA-83328-00-00 Stay, Flasher 2 (24M-83318-00)ステー，フラツシヤ ２; |
1AA-83328-00-00 |
from US $37.18 |
||
|
15
|
15
95707-12500-00 Nut, Flange |
95707-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
15
|
15
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
15
|
15
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
16
|
16
97024-06030-00 Bolt, Hexagonボルト; |
97024-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
97017-06030-00 Boltボルト; |
97017-06030-00 |
from US $1.07 |
||
|
17
|
17
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
18
|
18
42X-83328-00-00
Stay, Flasher 2
ステー，フラツシヤ ２; |
42X-83328-00-00 |
— | ||
|
19
|
19
2NT-83320-02-00 Front Flasher Light Assy 2参照; ライト側 （＊１） |
2NT-83320-02-00 |
from US $50.65 |
||
|
20
|
20
1KT-83311-00-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
1KT-83311-00-00 |
from US $7.51 |
||
| replacement | |||||
|
20
|
20
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
306-83311-40-00 |
from US $7.51 |
||
|
21
|
21
42X-83312-20-00 Lens, Flasher．レンズ，フラツシヤ; 参照 |
42X-83312-20-00 |
from US $14.45 |
||
|
22
|
22
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; 参照 |
1D6-83313-00-00 |
from US $3.47 |
||
|
23
|
23
1D6-83363-10-00 Lens, Rim．レンズ，リム; 参照 |
1D6-83363-10-00 |
from US $18.70 |
||
|
24
|
24
57M-83358-00-00 Screw, Special．スクリユ，スペシヤル; 参照 |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
901-51030-03-00 Screw, Countersunk．スクリユ，スペシヤル; 参照 |
901-51030-03-00 |
from US $2.22 |
||
|
25
|
25
2NT-83340-01-00 Rear Flasher Light Assy 2リヤフラツシヤライトアセンブリ ２; 参照; ライト側 （＊２） |
2NT-83340-01-00 |
from US $70.78 |
||
| replacement | |||||
|
25
|
25
2NT-83340-02-00 Rear Flasher Light Assy 2リヤフラツシヤライトアセンブリ ２; 参照; ライト側 （＊２） |
2NT-83340-02-00 |
from US $72.53 |
||
|
26
|
26
1KT-83311-00-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
1KT-83311-00-00 |
from US $7.51 |
||
| replacement | |||||
|
26
|
26
306-83311-40-00 Bulb, Flasher (12V-21W)．バルブ，フラツシヤ ; １２Ｖ−２１Ｗ; 参照 |
306-83311-40-00 |
from US $7.51 |
||
|
27
|
27
42X-83312-10-00 Lens, Flasher．レンズ，フラツシヤ; 参照 |
42X-83312-10-00 |
from US $14.45 |
||
|
28
|
28
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; 参照 |
1D6-83313-00-00 |
from US $3.47 |
||
|
29
|
29
1D6-83363-00-00 Lens, Rim．レンズ，リム; 参照 |
1D6-83363-00-00 |
from US $18.70 |
||
|
30
|
30
57M-83358-00-00 Screw, Special．スクリユ，スペシヤル; 参照 |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
901-51030-03-00 Screw, Countersunk．スクリユ，スペシヤル; 参照 |
901-51030-03-00 |
from US $2.22 |
||
