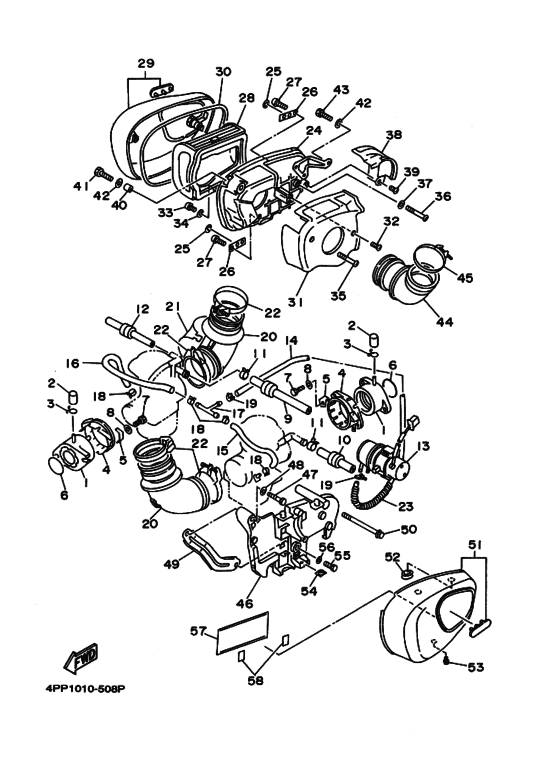

Intake Diagram Yamaha XV1100 Virago
- Year
- 1995
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 4PP1
- Sales region
- Japan (010)
- Engine Capacity
- 1100
- Color Variant
- A
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24M-13586-01-00 Joint, Carburetor 1 |
24M-13586-01-00 |
from US $102.10 |
||
|
2
|
2
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.36 |
||
|
3
|
3
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
4
|
4
42X-13564-01-00 Cover, Manifoldカバー，マニホールド; |
42X-13564-01-00 |
from US $80.27 |
||
|
5
|
5
42X-13578-00-00
Washer
|
42X-13578-00-00 |
— | ||
|
6
|
6
932-10445-45-00 O-RingＯ−リング; |
932-10445-45-00 |
from US $7.07 |
||
|
7
|
7
970-27060-20-00
Bolt
ボルト; |
970-27060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-20-00 Boltボルト; |
970-17060-20-00 |
from US $1.16 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
3CG-14197-00-00
Pipe
|
3CG-14197-00-00 |
— | ||
|
10
|
10
3CG-14987-00-00
Pipe
ホース; |
3CG-14987-00-00 |
— | ||
| replacement | |||||
|
10
|
10
3CG-14197-00-00
Pipe
ホース; |
3CG-14197-00-00 |
— | ||
|
11
|
11
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
12
|
12
3CG-14396-00-00
Pipe
|
3CG-14396-00-00 |
— | ||
|
13
|
13
42H-13907-00-00
Fuel Pump
フユエルポンプコンプリート; |
42H-13907-00-00 |
— | ||
| replacement | |||||
|
13
|
13
42H-13907-01-00 Fuel Pumpフユエルポンプコンプリート; |
42H-13907-01-00 |
from US $493.26 |
||
|
14
|
14
42H-13971-00-00 Pipe, Fuel 1パイプ，フユエル １; |
42H-13971-00-00 |
US $45.86 |
||
|
15
|
15
1TA-14349-00-00
Pipe
|
1TA-14349-00-00 |
— | ||
|
16
|
16
1TA-14348-00-00
Pipe 1
|
1TA-14348-00-00 |
— | ||
|
17
|
17
90413-07023-00 Way 3 |
90413-07023-00 |
from US $12.75 |
||
|
18
|
18
90467-10135-00 Clip |
90467-10135-00 |
from US $1.39 |
||
|
19
|
19
90460-12256-00 Clamp,Hoseクランプ，ホース; |
90460-12256-00 |
from US $8.21 |
||
| replacement | |||||
|
19
|
19
90450-12002-00 Hose Clamp Assyクランプ，ホース; |
90450-12002-00 |
from US $8.36 |
||
|
20
|
20
10L-14453-01-00 Joint, Air Cleaner 1ジヨイント，エアクリーナ １; |
10L-14453-01-00 |
from US $44.55 |
||
| replacement | |||||
|
20
|
20
10L-14453-02-00 Joint, Air Cleaner 1ジヨイント，エアクリーナ １; |
10L-14453-02-00 |
from US $46.21 |
||
|
21
|
21
10L-14407-00-00
Cover, Joint
カバー，ジヨイント; |
10L-14407-00-00 |
— | ||
|
22
|
22
904-60651-95-00
Clamp, Hose 1
クランプ，ホース; |
904-60651-95-00 |
— | ||
| replacement | |||||
|
22
|
22
1D6-11387-00-00 Clamp, Hose 1クランプ，ホース; |
1D6-11387-00-00 |
from US $8.64 |
||
|
23
|
23
90501-100F8-00
Spring, Compression(2Gv)
|
90501-100F8-00 |
— | ||
|
24
|
24
42X-14401-01-00
Air Cleaner Case Assembly
エアクリーナケースアセンブリ; |
42X-14401-01-00 |
— | ||
|
25
|
25
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
26
|
26
42X-14477-00-00
Plate
プレート; |
42X-14477-00-00 |
— | ||
|
27
|
27
97707-40112-00 Screw, Tapping |
97707-40112-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.56 |
||
|
28
|
28
42X-14451-00-00 Element, Air Cleanerエレメント，エアクリーナ; |
42X-14451-00-00 |
from US $37.03 |
||
|
29
|
29
1TA-14422-00-00 Cap, Cleaner Case 2キヤツプ，クリーナケース ２; |
1TA-14422-00-00 |
from US $205.10 |
||
| replacement | |||||
|
29
|
29
1RM-14422-00-00
Cap, Cleaner Case 2
キヤツプ，クリーナケース ２; |
1RM-14422-00-00 |
— | ||
|
30
|
30
42X-14452-00-00 Sealシール; |
42X-14452-00-00 |
from US $30.65 |
||
|
31
|
31
1TA-1441A-00-00
Cover, Cleaner Case 1
カバー，クリーナケース １; |
1TA-1441A-00-00 |
— | ||
|
32
|
32
97707-50508-00 Screw, Tappingスクリユ，タツピング; |
97707-50508-00 |
from US $0.86 |
||
|
33
|
33
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
33
|
33
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
34
|
34
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
35
|
35
98507-06080-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06080-00 |
from US $1.42 |
||
|
36
|
36
98507-06050-00 Screw, Pan Headスクリユ，パンヘツド; |
98507-06050-00 |
from US $1.66 |
||
|
37
|
37
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
38
|
38
1TA-1441E-00-00 Cover, Cleaner Case 2カバー，クリーナケース ２; |
1TA-1441E-00-00 |
US $53.39 |
||
|
39
|
39
97707-50508-00 Screw, Tappingスクリユ，タツピング; |
97707-50508-00 |
from US $0.86 |
||
|
40
|
40
903-87075-98-00 Collar (1T2)カラー; |
903-87075-98-00 |
from US $1.63 |
||
|
41
|
41
913-17060-30-00
Bolt
ボルト，ソケツトヘツド; |
913-17060-30-00 |
— | ||
| replacement | |||||
|
41
|
41
90110-06138-00 Boltボルト，ソケツトヘツド; |
90110-06138-00 |
from US $1.25 |
||
|
42
|
42
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
43
|
43
91317-06012-00 Boltボルト，ソケツトヘツド; |
91317-06012-00 |
from US $1.28 |
||
|
44
|
44
42X-14485-00-00
Pipe, Joint
|
42X-14485-00-00 |
— | ||
|
45
|
45
904-60651-95-00
Clamp, Hose 1
クランプ，ホース; |
904-60651-95-00 |
— | ||
| replacement | |||||
|
45
|
45
1D6-11387-00-00 Clamp, Hose 1クランプ，ホース; |
1D6-11387-00-00 |
from US $8.64 |
||
|
46
|
46
42X-14663-02-00
Plate, Air Cleaner
プレート，エアクリーナ; |
42X-14663-02-00 |
— | ||
|
47
|
47
95807-06025-00 Bolt, Flange参照 |
95807-06025-00 |
from US $1.18 |
||
| replacements | |||||
|
47
|
47
958-17060-25-00 Bolt, Flange参照 |
958-17060-25-00 |
from US $1.18 |
||
|
47
|
47
95822-06025-00 Bolt, Flange参照 |
95822-06025-00 |
from US $0.97 |
||
|
48
|
48
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
49
|
49
42X-14484-00-00
Plate, Cleaner Case Fitting
プレート，クリーナケースフイツテイング; |
42X-14484-00-00 |
— | ||
|
50
|
50
91317-06090-00 Boltボルト，ソケツトヘツド; 参照 |
91317-06090-00 |
from US $3.74 |
||
|
51
|
51
1TA-14603-00-00 Cover 1カバーレフト; |
1TA-14603-00-00 |
US $279.88 |
||
| replacements | |||||
|
51
|
51
999-99030-94-00 Cover 1カバーレフト; |
999-99030-94-00 |
US $279.88 |
||
|
51
|
51
1RM-14603-00-00 Cover 1カバーレフト; |
1RM-14603-00-00 |
from US $276.32 |
||
|
52
|
52
90480-14074-00 Grommet |
90480-14074-00 |
from US $4.58 |
||
|
53
|
53
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
53
|
53
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
54
|
54
12R-14484-01-00
Plate, Cleaner Case Fitting
プレート，クリーナケースフイツテイング; |
12R-14484-01-00 |
— | ||
| replacement | |||||
|
54
|
54
999-99999-99-00
Not Available
プレート，クリーナケースフイツテイング; |
999-99999-99-00 |
— | ||
|
55
|
55
913-17060-35-00
Bolt,socket
ボルト，ソケツトヘツド; |
913-17060-35-00 |
— | ||
| replacements | |||||
|
55
|
55
90110-06X45-00 Bolt, Hexagon Sockボルト，ソケツトヘツド; |
90110-06X45-00 |
US $41.20 |
||
|
55
|
55
901-1006X-79-00 Bolt, Hexagon Socket Headボルト，ソケツトヘツド; |
901-1006X-79-00 |
from US $3.98 |
||
|
56
|
56
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
57
|
57
4K5-28186-00-00 Pouchポーチ; |
4K5-28186-00-00 |
from US $13.88 |
||
|
58
|
58
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
