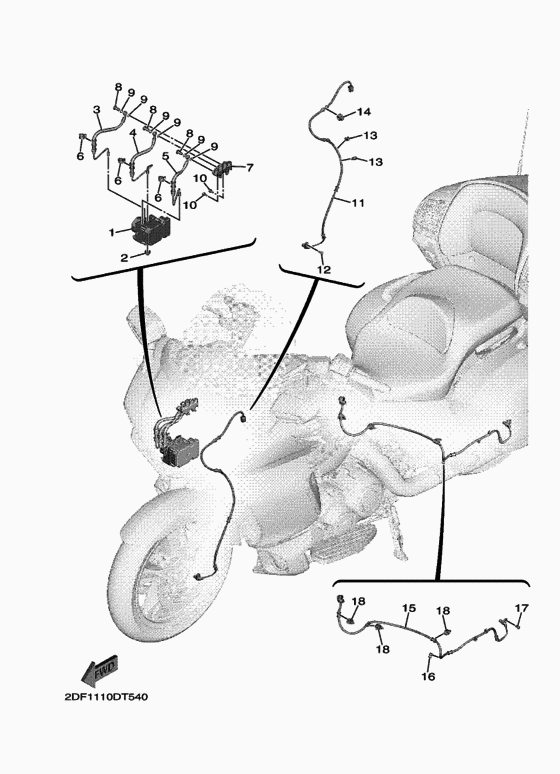

Electrical 4 Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-85930-09-00 HYDRAULIC UNIT ASSY |
2DF-85930-09-00 |
US $1,765.55 |
||
|
2
|
2
2CR-85916-00-00 Cap, Damper |
2CR-85916-00-00 |
from US $2.98 |
||
|
3
|
3
2DF-25882-00-00 PIPE, BRAKE 2 |
2DF-25882-00-00 |
US $59.63 |
||
|
4
|
4
2DF-2588A-00-00 PIPE, BRAKE 4 |
2DF-2588A-00-00 |
US $59.26 |
||
|
5
|
5
2DF-25883-00-00 PIPE, BRAKE 3 |
2DF-25883-00-00 |
US $58 |
||
|
6
|
6
90464-16006-00 Clamp |
90464-16006-00 |
from US $1.81 |
||
|
7
|
7
2DF-25885-00-00 JOINT |
2DF-25885-00-00 |
US $59.87 |
||
|
8
|
8
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
9
|
9
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
10
|
10
95D37-06014-00 BOLT, FLANGE DEEP RE |
95D37-06014-00 |
from US $0.72 |
||
|
11
|
11
2DF-85970-00-00 WHEEL SENSOR ASSY, F |
2DF-85970-00-00 |
US $158.45 |
||
|
12
|
12
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.50 |
||
|
13
|
13
90464-12013-00 Clamp |
90464-12013-00 |
from US $1.70 |
||
|
14
|
14
90464-08011-00 CLAMP |
90464-08011-00 |
from US $1.35 |
||
|
15
|
15
2DF-85980-00-00 WHEEL SENSOR ASSY, R |
2DF-85980-00-00 |
US $204.80 |
||
| replacement | |||||
|
15
|
15
2DF-85980-01-00 |
2DF-85980-01-00 |
US $232.25 |
||
|
16
|
16
90468-15139-00 Clip |
90468-15139-00 |
from US $1.70 |
||
|
17
|
17
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.50 |
||
|
18
|
18
90464-10014-00 CLAMP |
90464-10014-00 |
from US $1.70 |
||
