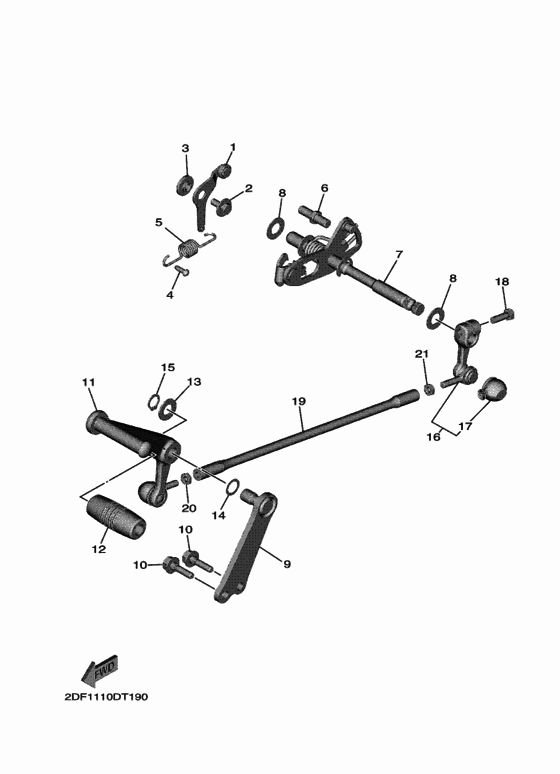

Shift shaft Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dark Gray Metallic G
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- A
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-18140-00-00 STOPPER LEVER ASSY |
2DF-18140-00-00 |
US $20.38 |
||
|
2
|
2
90159-06027-00 Screw, With Washer |
90159-06027-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
901-59060-28-00 Screw, With Washer |
901-59060-28-00 |
from US $1.56 |
||
|
3
|
3
4NX-18175-00-00 Spacer |
4NX-18175-00-00 |
from US $10.48 |
||
|
4
|
4
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
5
|
5
2DF-18144-00-00 HANGER, SPRING |
2DF-18144-00-00 |
US $2.61 |
||
|
6
|
6
1D7-18127-00-00 Stopper, Screw |
1D7-18127-00-00 |
from US $6.94 |
||
| replacement | |||||
|
6
|
6
5VK-18127-00-00 Stopper, Screw |
5VK-18127-00-00 |
from US $6.94 |
||
|
7
|
7
2DF-18101-00-00 SHIFT SHAFT ASSY |
2DF-18101-00-00 |
US $76.48 |
||
|
8
|
8
90201-127E1-00 Washer, Plate |
90201-127E1-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
9
|
9
2DF-2741L-00-00 BRACKET 4 |
2DF-2741L-00-00 |
US $51.21 |
||
|
10
|
10
90109-06321-00 Bolt |
90109-06321-00 |
US $4.05 |
||
|
11
|
11
2DF-18111-00-00 PEDAL, SHIFT |
2DF-18111-00-00 |
US $131.47 |
||
|
12
|
12
5VN-18113-00-00 Cover, Shift Pedal |
5VN-18113-00-00 |
from US $10.74 |
||
|
13
|
13
90201-12688-00 Washer, Plate |
90201-12688-00 |
from US $2.91 |
||
| replacement | |||||
|
13
|
13
90201-124E4-00 Washer, Plate |
90201-124E4-00 |
from US $2.91 |
||
|
14
|
14
90206-12074-00 Washer, Wave |
90206-12074-00 |
from US $1.81 |
||
|
15
|
15
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
16
|
16
2DF-18130-00-00 SHIFT SHAFT ASSY |
2DF-18130-00-00 |
US $77.71 |
||
|
17
|
17
4XV-18154-00-00 Cover, Dust |
4XV-18154-00-00 |
from US $3.60 |
||
|
18
|
18
970-27060-20-00
Bolt
|
970-27060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
19
|
19
2DF-18115-00-00 ROD, SHIFT |
2DF-18115-00-00 |
US $91.85 |
||
|
20
|
20
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.81 |
||
|
21
|
21
95304-06700-00 Nut |
95304-06700-00 |
US $1.52 |
||
| replacements | |||||
|
21
|
21
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
21
|
21
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
