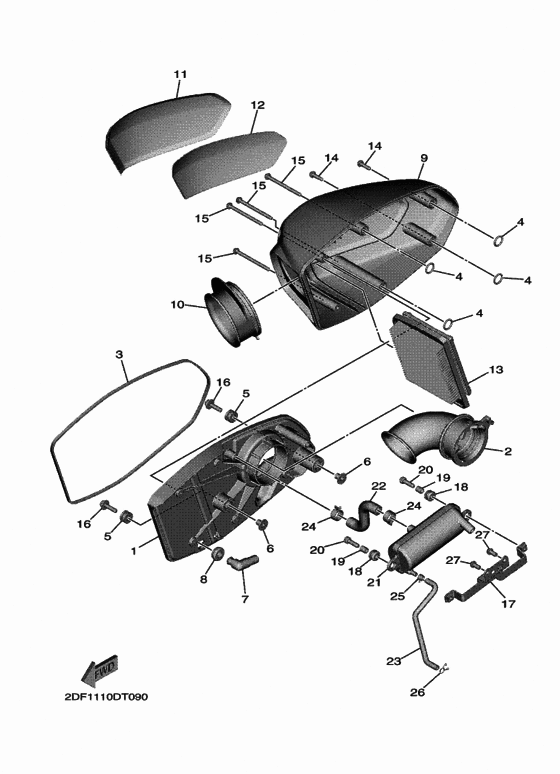

Intake 2 Diagram Yamaha XV1900 Star Venture
- Year
- 2018
- Colour
- Dull Red Metallic D
- Model code
- 2DF4
- Sales region
- Canada (010)
- Engine Capacity
- 1900
- Color Variant
- B
- Model
- XV1900FD (Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DF-14411-00-00 CASE, AIR CLEANER 1 |
2DF-14411-00-00 |
US $42.30 |
||
|
2
|
2
2DF-14453-00-00 JOINT, AIR CLEANER 1 |
2DF-14453-00-00 |
US $29.41 |
||
|
3
|
3
2DF-14462-00-00 SEAL |
2DF-14462-00-00 |
US $10.28 |
||
|
4
|
4
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
4
|
4
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
5
|
5
90480-12314-00 Grommet |
90480-12314-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
6
|
6
90387-06205-00 Collar |
90387-06205-00 |
from US $3.40 |
||
|
7
|
7
31A-14419-00-00 Pipe |
31A-14419-00-00 |
from US $2.58 |
||
|
8
|
8
31A-14435-00-00 Grommet |
31A-14435-00-00 |
from US $5.38 |
||
| replacement | |||||
|
8
|
8
31A-14435-01-00 |
31A-14435-01-00 |
from US $5.38 |
||
|
9
|
9
2DF-14412-00-00 CAP, CLEANER CASE 1 |
2DF-14412-00-00 |
US $149.08 |
||
|
10
|
10
2DF-14437-00-00 DUCT |
2DF-14437-00-00 |
US $23.45 |
||
|
11
|
11
2DF-1445F-00-00 PLATE, SIDE 1 |
2DF-1445F-00-00 |
US $64.26 |
||
|
12
|
12
2DF-14239-00-00 SEAL |
2DF-14239-00-00 |
US $12.51 |
||
|
13
|
13
2DF-14451-00-00 ELEMENT, AIR CLEANER |
2DF-14451-00-00 |
US $31.90 |
||
|
14
|
14
90111-05024-00 Bolt, Hex. Socket Button |
90111-05024-00 |
from US $1.81 |
||
|
15
|
15
90111-05050-00 BOLT,HEX. SOCKET BUT |
90111-05050-00 |
US $4.50 |
||
|
16
|
16
90110-06233-00 Bolt, Hexagon Socket Head |
90110-06233-00 |
from US $3.74 |
||
|
17
|
17
2DF-14255-00-00 PLATE |
2DF-14255-00-00 |
US $22.64 |
||
|
18
|
18
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
19
|
19
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.81 |
||
| replacement | |||||
|
19
|
19
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.81 |
||
|
20
|
20
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
21
|
21
2DF-15371-00-00 BREATHER |
2DF-15371-00-00 |
US $32.51 |
||
|
22
|
22
2DF-11125-00-00 PIPE, BREATHER 4 |
2DF-11125-00-00 |
US $10.35 |
||
|
23
|
23
2DF-1116J-00-00 PIPE 6 |
2DF-1116J-00-00 |
US $10.73 |
||
|
24
|
24
90467-15001-00 Clip |
90467-15001-00 |
from US $1.66 |
||
|
25
|
25
90467-08092-00 Clip |
90467-08092-00 |
from US $1.39 |
||
|
26
|
26
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
27
|
27
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
