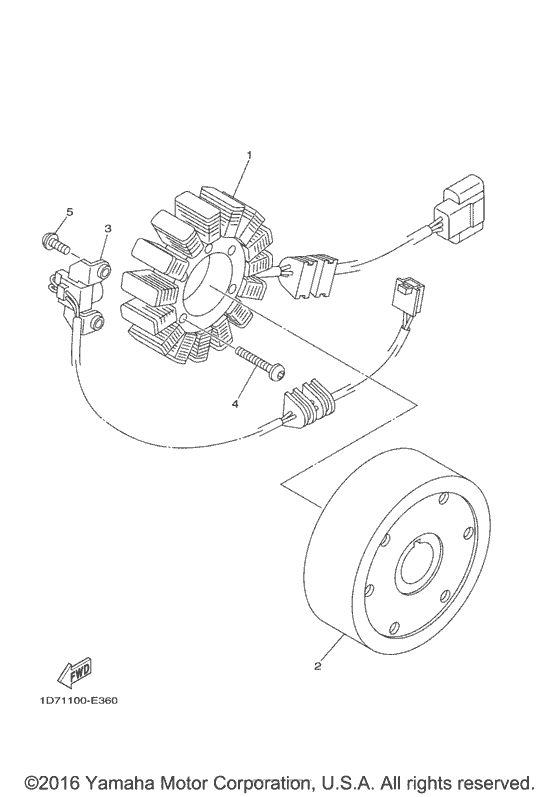

Generator Diagram Yamaha XV1900 Raider
- Year
- 2017
- Model code
- BL94
- Sales region
- USA
- Базовая модель
- XV19CHB
- Engine Capacity
- 1900
- Model
- XV1900CU (Raider)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-81410-01-00 Stator Assy |
1D7-81410-01-00 |
from US $416.02 |
||
|
2
|
2
1D7-81450-00-00 Rotor Assy |
1D7-81450-00-00 |
from US $779.83 |
||
|
3
|
3
5C7-81670-00-00
Pick-Up Assy
|
5C7-81670-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5C7-81670-02-00 Pick-Up Assy |
5C7-81670-02-00 |
from US $104.71 |
||
|
4
|
4
90149-06093-00 Screw |
90149-06093-00 |
from US $1.35 |
||
| replacement | |||||
|
4
|
4
901-49061-22-00 Screw |
901-49061-22-00 |
from US $0.88 |
||
|
5
|
5
901-49060-69-00
Screw
|
901-49060-69-00 |
— | ||
| replacement | |||||
|
5
|
5
90149-06068-00 Screw |
90149-06068-00 |
from US $1.70 |
||
