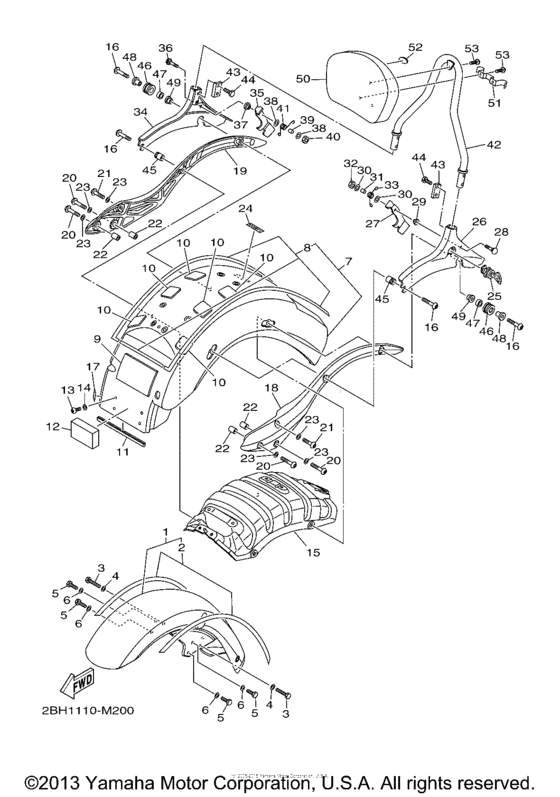

Fender Diagram Yamaha XV1900 Stratoliner S
- Year
- 2013
- Model code
- 28H1
- Sales region
- USA
- Базовая модель
- XV19CTSDL
- Engine Capacity
- 1900
- Model
- XV1900CT (Stratoliner S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D7-Y2151-N0-P4 Front Fender AssyFOR DPBMX |
1D7-Y2151-N0-P4 |
US $892.47 |
||
|
2
|
2
4P0-21570-60-00 Graphic Set, Front Fender |
4P0-21570-60-00 |
US $251.95 |
||
|
3
|
3
97022-08030-00 Bolt, Hexagon |
97022-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
4
|
4
92902-08600-00 Washer, Plate |
92902-08600-00 |
US $1.66 |
||
| replacement | |||||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
5
|
5
970-22080-16-00 Bolt, Hexagon |
970-22080-16-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
6
|
6
92902-08600-00 Washer, Plate |
92902-08600-00 |
US $1.66 |
||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
7
|
7
1D7-Y2161-S0-PC Rear Fender CompFOR DPBMX |
1D7-Y2161-S0-PC |
US $1,420.72 |
||
|
8
|
8
4P0-2165A-60-00 Graphic Set, Rear Fender |
4P0-2165A-60-00 |
US $305.17 |
||
|
9
|
9
5PX-21779-00-00 Damper, Locating 2 |
5PX-21779-00-00 |
from US $2.98 |
||
|
10
|
10
5PX-21669-01-00 Seal |
5PX-21669-01-00 |
from US $6.74 |
||
|
11
|
11
1D7-24188-00-00 Mold, Fuel Tank |
1D7-24188-00-00 |
from US $9.07 |
||
|
12
|
12
1D7-21639-00-00 Damper 2 |
1D7-21639-00-00 |
from US $6.66 |
||
|
13
|
13
90111-06065-00 Bolt, Button Head |
90111-06065-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.36 |
||
|
14
|
14
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
15
|
15
1D7-21643-00-00 Stay, Rear |
1D7-21643-00-00 |
from US $204.48 |
||
|
16
|
16
90111-08033-00 Bolt, Hex. Socket Button |
90111-08033-00 |
from US $3.74 |
||
|
17
|
17
3FY-21575-01-00 Seal 1 |
3FY-21575-01-00 |
from US $8.08 |
||
|
18
|
18
1D7-21613-00-00 Stay, Fender 1 |
1D7-21613-00-00 |
from US $1,329.86 |
||
|
19
|
19
1D7-21614-00-00 Stay, Fender 2 |
1D7-21614-00-00 |
from US $1,135.78 |
||
|
20
|
20
92014-10050-00 Bolt, Button Head(3Ls) |
92014-10050-00 |
from US $4.99 |
||
|
21
|
21
90111-10025-00 Bolt, Button Head |
90111-10025-00 |
from US $3.54 |
||
| replacement | |||||
|
21
|
21
920-14100-40-00 Bolt, Button Head |
920-14100-40-00 |
from US $2.94 |
||
|
22
|
22
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
23
|
23
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
23
|
23
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
24
|
24
1D6-2153E-00-00 Emblem, Yamaha |
1D6-2153E-00-00 |
from US $6.19 |
||
| replacements | |||||
|
24
|
24
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
|
24
|
24
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
25
|
25
2C5-28409-01-00 Lock Assy. 2 |
2C5-28409-01-00 |
from US $256.98 |
||
|
26
|
26
2C5-F846H-00-00 Plate,4 |
2C5-F846H-00-00 |
US $215.37 |
||
|
27
|
27
2C5-F8488-00-00 Hook |
2C5-F8488-00-00 |
US $66.45 |
||
| replacement | |||||
|
27
|
27
2C5-F8494-00-00 Hook 3 |
2C5-F8494-00-00 |
from US $32.89 |
||
|
28
|
28
2C5-F844M-00-00 Shaft 1 |
2C5-F844M-00-00 |
US $39.93 |
||
|
29
|
29
2C5-F8467-00-00 Spacer |
2C5-F8467-00-00 |
from US $7.06 |
||
|
30
|
30
2C5-F8319-00-00 Washer |
2C5-F8319-00-00 |
US $3.98 |
||
|
31
|
31
2C5-F849T-00-00 Plate, Guide |
2C5-F849T-00-00 |
US $45.32 |
||
|
32
|
32
95680-06100-00 Nut, U |
95680-06100-00 |
from US $6.09 |
||
|
33
|
33
2C5-F8489-00-00 Spring |
2C5-F8489-00-00 |
US $7.65 |
||
|
34
|
34
2C5-F847H-00-00 Plate 5 |
2C5-F847H-00-00 |
from US $207.11 |
||
|
35
|
35
2C5-F8498-00-00 Hook 2 |
2C5-F8498-00-00 |
US $127.25 |
||
|
36
|
36
2C5-F844M-00-00 Shaft 1 |
2C5-F844M-00-00 |
US $39.93 |
||
|
37
|
37
2C5-F8467-00-00 Spacer |
2C5-F8467-00-00 |
from US $7.06 |
||
|
38
|
38
2C5-F8319-00-00 Washer |
2C5-F8319-00-00 |
US $3.98 |
||
|
39
|
39
2C5-F849T-00-00 Plate, Guide |
2C5-F849T-00-00 |
US $45.32 |
||
|
40
|
40
95680-06100-00 Nut, U |
95680-06100-00 |
from US $6.09 |
||
|
41
|
41
2C5-F848A-00-00 Spring 2 |
2C5-F848A-00-00 |
US $44.76 |
||
|
42
|
42
2C5-F8426-00-00 Bracket 1 |
2C5-F8426-00-00 |
from US $338.69 |
||
| replacement | |||||
|
42
|
42
STR-2C541-30-02 2C5-F16C0-V0-00 |
STR-2C541-30-02 |
US $338.69 |
||
|
43
|
43
2C5-F8417-00-00 Plate |
2C5-F8417-00-00 |
from US $5.56 |
||
|
44
|
44
970-14080-20-00
Bolt, Hexagon
|
970-14080-20-00 |
— | ||
|
45
|
45
2C5-F842L-00-00 Pin, Stopper |
2C5-F842L-00-00 |
US $130.42 |
||
|
46
|
46
2C5-F845L-00-00 Stopper, Open |
2C5-F845L-00-00 |
US $96.96 |
||
|
47
|
47
2C5-F836T-00-00
Damper, Locating 1
|
2C5-F836T-00-00 |
— | ||
|
48
|
48
2C5-F8329-00-00 Spacer |
2C5-F8329-00-00 |
US $17.08 |
||
|
49
|
49
2C5-F8425-00-00 Damper 3 |
2C5-F8425-00-00 |
US $60.24 |
||
|
50
|
50
1D6-2840F-10-00 Back Rest Assy |
1D6-2840F-10-00 |
from US $222.44 |
||
| replacement | |||||
|
50
|
50
1D6-2840F-11-00 Back Rest Assy |
1D6-2840F-11-00 |
US $213.84 |
||
|
51
|
51
5GA-2164G-00-00 Stay 2 |
5GA-2164G-00-00 |
from US $44.63 |
||
|
52
|
52
5GA-24786-01-00 Emblem |
5GA-24786-01-00 |
from US $48.08 |
||
|
53
|
53
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
