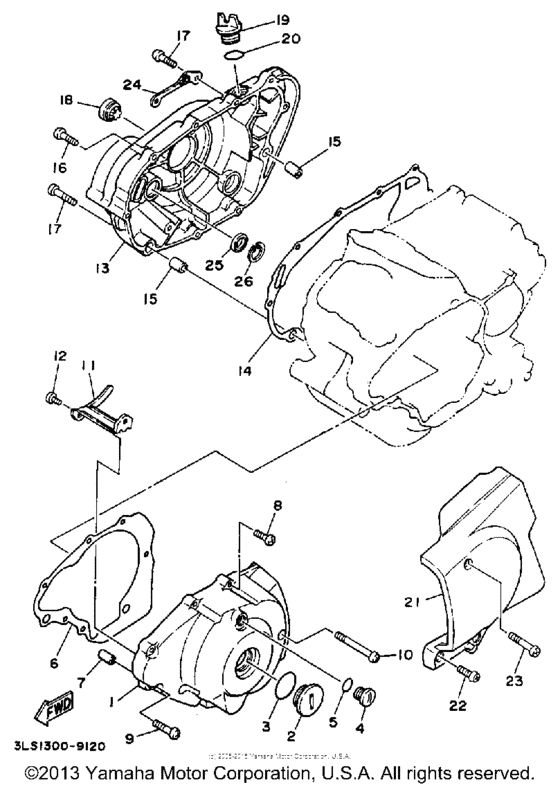

Crankcase cover (1) Diagram Yamaha XV250 Route 66
- Year
- 1990
- Sales region
- USA
- Базовая модель
- XV250A
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-15411-00-00 Cover, Crankcase 1 |
2UJ-15411-00-00 |
from US $149.21 |
||
| replacement | |||||
|
1
|
1
2UJ-15411-01-00 Cover, Crankcase 1 |
2UJ-15411-01-00 |
from US $149.21 |
||
|
2
|
2
90340-32069-00 Plug, Straight Screw |
90340-32069-00 |
from US $7.36 |
||
|
3
|
3
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.94 |
||
|
4
|
4
90340-14068-00 Plug, Straight Screw |
90340-14068-00 |
from US $8.78 |
||
|
5
|
5
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.94 |
||
|
6
|
6
3DM-15451-00-00
Gasket, Crankcase Cover 1
|
3DM-15451-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4RF-15451-01-00 Gasket, Crankcase Cover 1 |
4RF-15451-01-00 |
from US $10.06 |
||
|
7
|
7
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
7
|
7
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
8
|
8
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
9
|
9
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
10
|
10
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
11
|
11
90465-06322-00 Clamp |
90465-06322-00 |
from US $8.08 |
||
|
12
|
12
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
13
|
13
2UJ-15421-00-00 Cover, Crankcase 2 |
2UJ-15421-00-00 |
from US $139.54 |
||
|
14
|
14
3DM-15461-00-00
Gasket, Crankcase Cover 2
|
3DM-15461-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4RF-15461-01-00 Gasket, Crankcase Cover 2 |
4RF-15461-01-00 |
from US $10.20 |
||
|
15
|
15
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
15
|
15
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
16
|
16
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
17
|
17
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
17
|
17
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
18
|
18
3Y1-15361-00-00 Gauge, Level |
3Y1-15361-00-00 |
from US $9.10 |
||
|
19
|
19
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
19
|
19
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $18.86 |
||
|
20
|
20
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
21
|
21
2UJ-15431-00-00 Cover, Crankcase 3 |
2UJ-15431-00-00 |
from US $79.17 |
||
| replacement | |||||
|
21
|
21
2UJ-15431-02-00 Cover, Crankcase 3 |
2UJ-15431-02-00 |
from US $79.17 |
||
|
22
|
22
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
23
|
23
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
24
|
24
2UJ-15441-00-00 Holder, Clutch Cable |
2UJ-15441-00-00 |
from US $10.63 |
||
|
25
|
25
93101-14089-00 Oil Seal |
93101-14089-00 |
from US $8.88 |
||
|
26
|
26
99009-25500-00 Circlip |
99009-25500-00 |
from US $1.66 |
||
