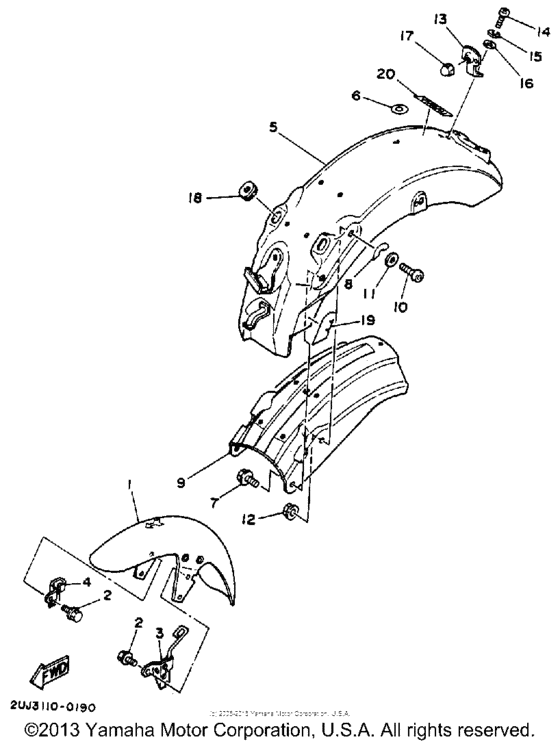

Fender Diagram Yamaha XV250 Route 66
- Year
- 1990
- Sales region
- USA
- Базовая модель
- XV250A
- Engine Capacity
- 250
- Model
- Route 66
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2UJ-21510-00-TL
Fender, Front
|
2UJ-21510-00-TL |
— | ||
|
2
|
2
950-23080-12-00
Bolt, Flange (Small Head)
|
950-23080-12-00 |
— | ||
| replacement | |||||
|
2
|
2
95024-08012-00 Bolt, Flange (Small Head) |
95024-08012-00 |
from US $1.42 |
||
|
3
|
3
2GV-21597-00-00
Holder,wire 1
|
2GV-21597-00-00 |
— | ||
|
4
|
4
2GV-21598-00-00 Holder, Wire 2 |
2GV-21598-00-00 |
US $27.40 |
||
|
5
|
5
2UJ-21610-00-TL
Fender, Rear
|
2UJ-21610-00-TL |
— | ||
|
6
|
6
2UJ-21735-00-00 Seal 2 |
2UJ-21735-00-00 |
from US $1.53 |
||
|
7
|
7
95811-10020-00 Bolt, Flange (95822-10020-00) |
95811-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.18 |
||
|
8
|
8
3DM-2173N-00-00 Seal 4 |
3DM-2173N-00-00 |
from US $1.84 |
||
|
9
|
9
2UJ-21670-00-00 Reinf. Comp |
2UJ-21670-00-00 |
US $47.80 |
||
| replacement | |||||
|
9
|
9
2UJ-21670-30-00 Reinf. Comp |
2UJ-21670-30-00 |
US $47.80 |
||
|
10
|
10
91316-10035-00 Bolt |
91316-10035-00 |
from US $2.69 |
||
| replacement | |||||
|
10
|
10
91317-10035-00 Bolt |
91317-10035-00 |
from US $2.69 |
||
|
11
|
11
92906-10600-00 Washer, Plate |
92906-10600-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.18 |
||
|
12
|
12
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
12
|
12
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
12
|
12
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
13
|
13
2UJ-21641-00-00 Bracket, Reflector |
2UJ-21641-00-00 |
from US $8.93 |
||
|
14
|
14
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
16
|
16
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
17
|
17
95306-05800-00 Nut |
95306-05800-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
18
|
18
90480-01502-00 Grommet |
90480-01502-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
19
|
19
2UJ-2173M-00-00 Seal 3 |
2UJ-2173M-00-00 |
from US $2.69 |
||
| replacements | |||||
|
19
|
19
2UJ-2173M-01-00 Seal 3 |
2UJ-2173M-01-00 |
from US $2.69 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
99235-00020-00 Emblem, Yamaha |
99235-00020-00 |
from US $9.77 |
||
| replacement | |||||
|
20
|
20
99245-00080-00 Emblem, Yamaha |
99245-00080-00 |
from US $10.06 |
||
