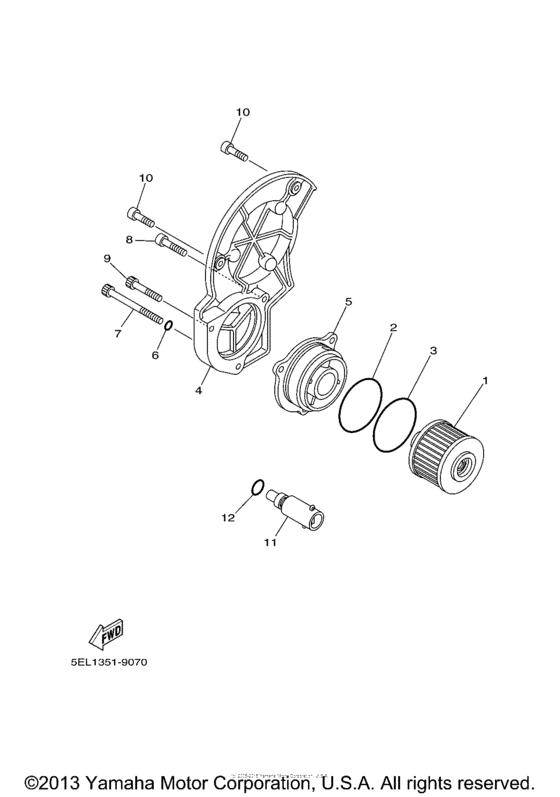

Oil cleaner Diagram Yamaha XVS1100 V-Star Custom
- Year
- 2003
- Model code
- 5PBD
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X7-13440-90-00 Element Assy, Oil Cleaner |
4X7-13440-90-00 |
from US $15.26 |
||
|
2
|
2
932-10564-59-00 O-Ring |
932-10564-59-00 |
from US $4.03 |
||
|
3
|
3
93210-54452-00 O-Ring |
93210-54452-00 |
from US $7.49 |
||
|
4
|
4
5EL-13447-00-00 Cover, Oil Element |
5EL-13447-00-00 |
from US $174.98 |
||
|
5
|
5
5EL-13448-00-00 Cap |
5EL-13448-00-00 |
from US $62.58 |
||
|
6
|
6
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $1.94 |
||
|
7
|
7
90109-06667-00 Bolt |
90109-06667-00 |
from US $3.89 |
||
|
8
|
8
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.52 |
||
|
9
|
9
91314-06050-00 Bolt |
91314-06050-00 |
from US $1.66 |
||
|
10
|
10
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
11
|
11
11H-13490-00-00 Relief Valve Assy |
11H-13490-00-00 |
from US $58.38 |
||
|
12
|
12
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
