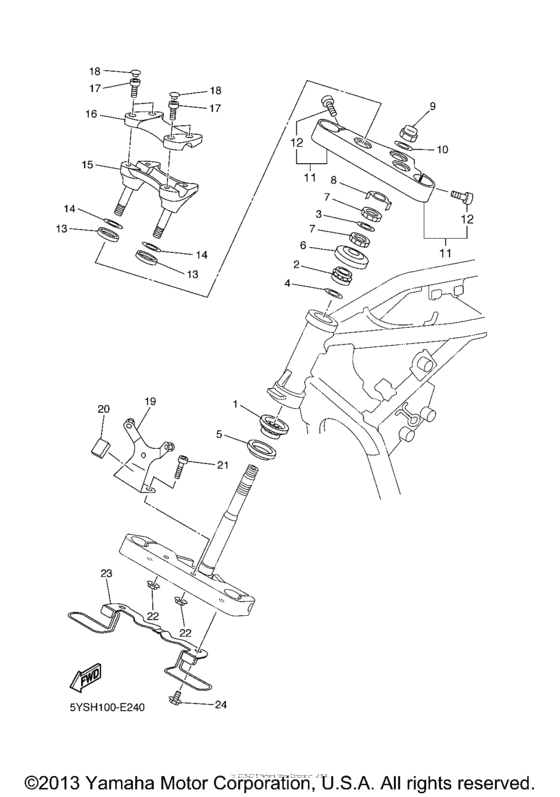

Steering Diagram Yamaha XVS1100 V-Star Silverado
- Year
- 2006
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XVS1100AT (V-Star Silverado)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.49 |
||
|
2
|
2
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
3
|
3
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
4
|
4
90202-24190-00 Washer, Plate |
90202-24190-00 |
from US $1.81 |
||
|
5
|
5
3FV-23462-00-00 Seal, Steering |
3FV-23462-00-00 |
from US $18.86 |
||
|
6
|
6
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
7
|
7
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
7
|
7
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
9
|
9
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.74 |
||
|
10
|
10
90201-220T0-00 Washer, Plate |
90201-220T0-00 |
from US $3.71 |
||
| replacement | |||||
|
10
|
10
90201-22018-00 Washer, Plate |
90201-22018-00 |
from US $4.86 |
||
|
11
|
11
4VR-Y2343-70-00 Crown, Handle |
4VR-Y2343-70-00 |
from US $220.79 |
||
|
12
|
12
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
13
|
13
3DM-23445-00-00 Damper |
3DM-23445-00-00 |
from US $4.99 |
||
|
14
|
14
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
15
|
15
5VR-23442-00-00 Holder, Handle Lower |
5VR-23442-00-00 |
from US $290.14 |
||
| replacement | |||||
|
15
|
15
5VR-23442-01-00 Holder, Handle Lower |
5VR-23442-01-00 |
from US $290.14 |
||
|
16
|
16
5VR-23441-00-00 Holder, Handle Upper |
5VR-23441-00-00 |
from US $202.23 |
||
|
17
|
17
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
18
|
18
903-38081-63-00 Plug (Chrome) |
903-38081-63-00 |
from US $2.36 |
||
|
19
|
19
5BN-23174-01-00 Stay, Headlight |
5BN-23174-01-00 |
from US $52.64 |
||
|
20
|
20
5BN-2317J-00-00 Damper 1 |
5BN-2317J-00-00 |
from US $3.40 |
||
|
21
|
21
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.91 |
||
|
22
|
22
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
22
|
22
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
23
|
23
5KS-25886-00-00 Holder, Brake Hose |
5KS-25886-00-00 |
from US $33.14 |
||
|
24
|
24
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
