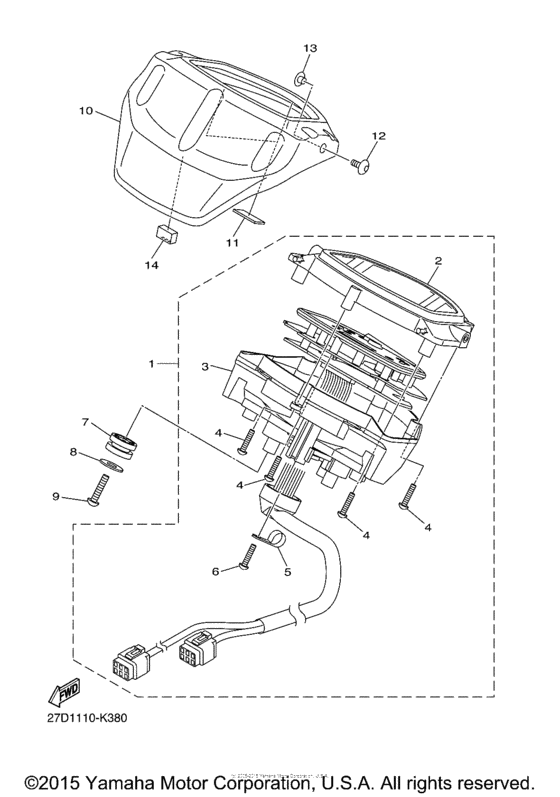

Meter Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ32
- Sales region
- USA
- Базовая модель
- XVS13CFCGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-83500-00-00 Meter Assy (Mph) |
27D-83500-00-00 |
from US $809.16 |
||
|
2
|
2
3D8-8353E-00-00 Case, Meter Upper |
3D8-8353E-00-00 |
from US $179.61 |
||
|
3
|
3
27D-83572-00-00 Case, Speedometer Lower |
27D-83572-00-00 |
from US $32.73 |
||
|
4
|
4
977-02300-14-00 Screw, Tapping |
977-02300-14-00 |
from US $0.70 |
||
|
5
|
5
4NK-8357E-00-00 Clamp |
4NK-8357E-00-00 |
from US $2.27 |
||
|
6
|
6
97707-40014-00 Screw, Tapping |
97707-40014-00 |
from US $1.56 |
||
|
7
|
7
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $2.08 |
||
|
8
|
8
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
9
|
9
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
9
|
9
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
10
|
10
27D-83559-10-00 Cover, Meter |
27D-83559-10-00 |
US $130.46 |
||
|
11
|
11
3D8-83541-00-00 Damper |
3D8-83541-00-00 |
from US $1.56 |
||
|
12
|
12
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
12
|
12
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.39 |
||
|
13
|
13
90387-05035-00 Collar |
90387-05035-00 |
from US $3.81 |
||
|
14
|
14
3MA-24181-00-00 Damper, Locating 1 |
3MA-24181-00-00 |
from US $4.58 |
||
