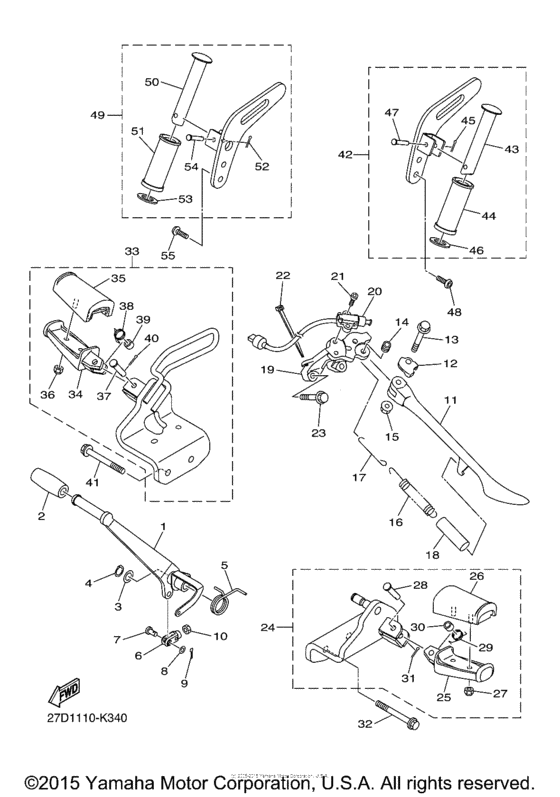

Stand & Footrest Diagram Yamaha XVS1300 Stryker Bullet Cowl Cruiser
- Year
- 2015
- Model code
- BJ32
- Sales region
- USA
- Базовая модель
- XVS13CFCGR
- Engine Capacity
- 1300
- Model
- XVS1300CU (Stryker)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27D-27211-00-00 Pedal, Brake |
27D-27211-00-00 |
from US $109.84 |
||
|
2
|
2
5VN-18113-00-00 Cover, Shift Pedal |
5VN-18113-00-00 |
from US $10.74 |
||
|
3
|
3
90201-12688-00 Washer, Plate |
90201-12688-00 |
from US $2.64 |
||
| replacement | |||||
|
3
|
3
90201-124E4-00 Washer, Plate |
90201-124E4-00 |
from US $2.64 |
||
|
4
|
4
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
5
|
5
27D-27216-00-00 Spring, Return |
27D-27216-00-00 |
from US $4.96 |
||
|
6
|
6
4FM-27222-00-00 Joint |
4FM-27222-00-00 |
from US $18.28 |
||
|
7
|
7
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
8
|
8
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
9
|
9
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
9
|
9
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
9
|
9
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
10
|
10
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.36 |
||
|
11
|
11
5S7-27311-00-00 Stand, Side |
5S7-27311-00-00 |
from US $120.75 |
||
|
12
|
12
5S7-27322-00-00 Washer |
5S7-27322-00-00 |
from US $9.63 |
||
|
13
|
13
901-05103-54-00 Bolt, Flange |
901-05103-54-00 |
from US $5.81 |
||
| replacement | |||||
|
13
|
13
901-05103-15-00 Bolt, Flange |
901-05103-15-00 |
from US $5.81 |
||
|
14
|
14
90387-1003G-00 Collar |
90387-1003G-00 |
from US $7.21 |
||
|
15
|
15
90185-10008-00 Nut, Self-Locking |
90185-10008-00 |
from US $4.53 |
||
|
16
|
16
905-06350-07-00 Spring, Tension |
905-06350-07-00 |
from US $10.61 |
||
|
17
|
17
3D8-27315-00-00 Link, Side Stand |
3D8-27315-00-00 |
from US $5.24 |
||
|
18
|
18
90445-22327-00 Hose (L70) |
90445-22327-00 |
from US $7.89 |
||
|
19
|
19
3D8-27321-00-00 Bracket, Side Stand |
3D8-27321-00-00 |
from US $207.24 |
||
|
20
|
20
27D-82566-30-00 Switch, Side Stand |
27D-82566-30-00 |
from US $67.28 |
||
|
21
|
21
901-10052-17-00 Bolt, Hexagon Socket |
901-10052-17-00 |
US $1.56 |
||
| replacements | |||||
|
21
|
21
90110-05025-00 Bolt, Hexagon Socket Head |
90110-05025-00 |
from US $3.47 |
||
|
21
|
21
91317-05025-00 Bolt |
91317-05025-00 |
from US $1.56 |
||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
90105-10157-00 Bolt, Flange |
90105-10157-00 |
from US $3.97 |
||
| replacement | |||||
|
23
|
23
901-05101-58-00 Bolt, Flange |
901-05101-58-00 |
from US $3.97 |
||
|
24
|
24
27D-27410-10-00 Front Footrest Assy (Left)FOR CALIFORNIA |
27D-27410-10-00 |
from US $198.95 |
||
|
24
|
24
27D-27410-00-00 Front Footrest Assy (Left)FOR U49 |
27D-27410-00-00 |
from US $197.57 |
||
|
25
|
25
1NH-27451-00-00 Footrest |
1NH-27451-00-00 |
from US $31.48 |
||
|
26
|
26
4VR-27413-00-00 Cover, Footrest |
4VR-27413-00-00 |
from US $20.25 |
||
|
27
|
27
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
27
|
27
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
28
|
28
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
29
|
29
90508-18696-00 Spring, Torsion |
90508-18696-00 |
from US $1.70 |
||
|
30
|
30
90387-087K5-00 Collar |
90387-087K5-00 |
from US $1.81 |
||
|
31
|
31
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
31
|
31
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
32
|
32
901-05103-99-00 Bolt, Flg.(Small Hea |
901-05103-99-00 |
from US $4.39 |
||
| replacement | |||||
|
32
|
32
950-24100-70-00 Bolt, Flg.(Small Head) |
950-24100-70-00 |
from US $3.67 |
||
|
33
|
33
27D-27420-00-00 Front Footrest Assy (Right) |
27D-27420-00-00 |
from US $197.57 |
||
|
34
|
34
1NH-27461-00-00 Footrest |
1NH-27461-00-00 |
from US $31.48 |
||
|
35
|
35
4VR-27413-00-00 Cover, Footrest |
4VR-27413-00-00 |
from US $20.25 |
||
|
36
|
36
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
37
|
37
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
38
|
38
90508-18696-00 Spring, Torsion |
90508-18696-00 |
from US $1.70 |
||
|
39
|
39
90387-087K5-00 Collar |
90387-087K5-00 |
from US $1.81 |
||
|
40
|
40
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
40
|
40
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
41
|
41
901-05104-00-00 Bolt, Flg.(Small Hea |
901-05104-00-00 |
from US $4.53 |
||
| replacement | |||||
|
41
|
41
950-24100-80-00 Bolt, Flg.(Small Head) |
950-24100-80-00 |
from US $3.82 |
||
|
42
|
42
27D-27430-00-00 Rear Footrest Assy 1 |
27D-27430-00-00 |
from US $70.46 |
||
|
43
|
43
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
44
|
44
5S7-27433-00-00 Cover, Rear Footrest |
5S7-27433-00-00 |
from US $6.80 |
||
|
45
|
45
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
45
|
45
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
45
|
45
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
46
|
46
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
47
|
47
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
48
|
48
901-11080-44-00 Bolt,hex. Socket But |
901-11080-44-00 |
from US $1.42 |
||
| replacement | |||||
|
48
|
48
901-11080-45-00 Bolt,hex. Socket Button |
901-11080-45-00 |
from US $1.42 |
||
|
49
|
49
27D-27440-00-00 Rear Footrest Assy 2 |
27D-27440-00-00 |
from US $70.46 |
||
|
50
|
50
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
51
|
51
5S7-27433-00-00 Cover, Rear Footrest |
5S7-27433-00-00 |
from US $6.80 |
||
|
52
|
52
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
52
|
52
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
52
|
52
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
53
|
53
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
54
|
54
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
55
|
55
901-11080-44-00 Bolt,hex. Socket But |
901-11080-44-00 |
from US $1.42 |
||
| replacement | |||||
|
55
|
55
901-11080-45-00 Bolt,hex. Socket Button |
901-11080-45-00 |
from US $1.42 |
||
